The level bubbler functions by forcing a gas (compressed air) at a near constant flow rate out the bottom of an open tube (dip tube) submerged in liquid. The back pressure in this tube is measured. With the liquid’s density known, the level can be calculated using the back pressure and density.

How does a bubbler level work?

The level bubbler functions by forcing a gas (compressed air) at a near constant flow rate out the bottom of an open tube (dip tube) submerged in liquid. The back pressure in this tube is measured. With the liquid’s density known, the level can be calculated using the back pressure and density.

What is the bubbler system?

Bubbler systems are used to measure water level by detecting the pressure required to force air through a submerged tube. The tube is mounted with the end of the tube below the water surface being measured, and the air emerges from the bottom of the tube as a stream of bubbles.

How a bubbler is used to measure the level in an open tank?

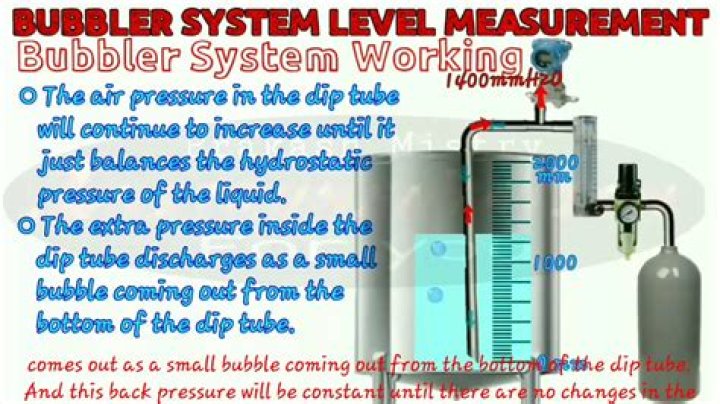

Figure 8: Bubbler Level Measurement System in an Open Tank. This system of level measurement is used when the process liquid cannot be direct contact with the level transmitter. The system operates as follows: • A bubbler tUbe is immersed to the bottom of the vessel in which the liquid level is to be measured.

What is used to level the bubble tube?

At the top of the bubble tube is where a pressure sensor detects differences in pressure as the level changes. Most tubes use a small V-notch at the bottom to assist with the release of a constant stream of bubbles.

What is the disadvantage of bubbler method?

There are a number of known issues with bubbler systems. Operational problems can be encountered if a loss or reduction in bubbler pressure occurs. This may result in either reduced accuracy in level measurement or even total loss in measurement.

How does air purge work?

Air purge or bubbler pipe is the most suitable level measurement method in such cases. In this method, compressed air is forced through the bubbler pipe which is placed in the level measurement tank. This compressed air/gas emerges from the other end of the tube in the form of bubbles.

What are the methods of level measurement?

The direct method of level measurement involves the use of physical properties, like fluid motion, as well as thermal, optical and electrical properties. This direct measurement is often simple because measuring the level is just a matter of measuring the height of the substance in a vessel.

How does a double bubbler work?

As its name suggests, a double bubbler features two separate chambers, each with its own separate downstem. These two chambers are connected by a bridge that allows smoke to pass from the first chamber to the second. As a result, double bubblers offer twice the smoke diffusion and filtration.

What is purge level system?

An air purge system is used to flush electrical control equipment with clean air before it is turned on. … Air purge systems are employed for control and analytic technology that is exposed to flue gas resulting from an industrial process.
