How does a Moen shower diverter work?

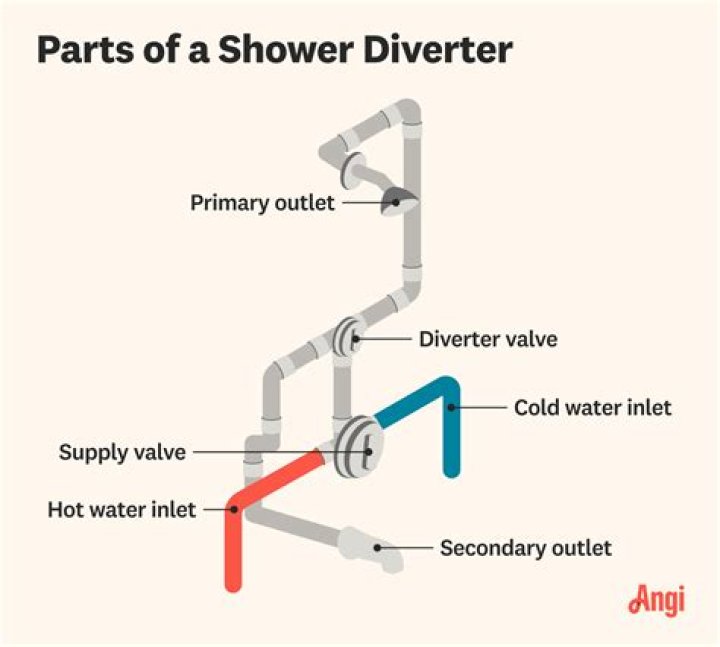

This diverter valve is something you pull up or out to plug the water from coming into the spigot, diverting it up into the showerhead. When the diverter is pulled, it pulls a rubber (or sometimes plastic piece) into the hole where the water pours through, plugging spigot where the water normally flows.

What is a 3 function shower diverter?

3-way valve operation (one outlet at a time) and allows 2 optional combinations of two of the outlets (2 at one time) – View all 5 water flow configuration examples. You can enjoy your shower or your handshower or both at the same time. In-wall diverter rough-in valve only – handles (trim kits) sold separately.

How do I add a hand-held shower with a tub spout diverter valve?

How to Add a Hand-Held Shower Using a Tub Spout Diverter Valve

1. Remove the Tub Spout. First, remove the old tub spout.
2. Install a New Spout. Purchase a new diverter-style tub spout that uses the same attachment method as the old one: slip-on or threaded.
3. Mount the Slide Bar.
4. Attach the Flexible Hose.

What are the trim options for Moen valves?

Now, Moen is introducing NEW! 2-Series trim options for the M-CORE Valve System. 2-Series trim offers temperature control capabilities and is pressure-balanced, while the 3-Series trim offers both temperature and volume control.

Can a quarter turn stop be used on a Moen?

Valve options include quarter-turn stops to prevent the necessity to shut off water at the main line. Be sure to turn off the water before replacing the cartridge. IMPORTANT: When using 3 Showering Devices, transfer valve cartridge must be modified. Simple cartridge modification changes the valves flow from two outlets to three outlets.

Where does the diverter gate go on a Moen faucet?

The diverter gate (#4) goes into the bottom of the tub spout (#2) with the installed washer (#3) facing the wall. Snap the tabs of the diverter gate (#4) onto the lift rod (#1). For additional information on Moen products visit solutions.moen.com and select the type of faucet you are repairing.

What are the different types of Moen cartridges?

Today, we also offer our line of dependable Duralast® cartridges, which feature a ceramic disc, for use in many of our newer faucets. In this module, you’ll learn about all of our different cartridge options, beginning with our standard cartridges and ending with our Duralast models.
