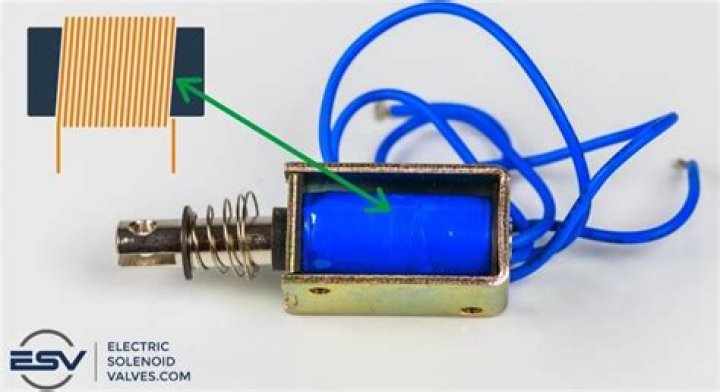

A “Linear Solenoid” is an electromagnetic device that converts electrical energy into a mechanical pushing or pulling force or motion. … Then with electric current flowing through the coil of wire it becomes an “Electromagnet” creating its own north and south poles exactly the same as that for a permanent type magnet.

How does a solenoid produce linear motion?

In simple terms, a solenoid converts electrical energy into mechanical work. … The term solenoid also refers to any device that converts electrical energy to mechanical energy using a solenoid. The device creates a magnetic field from electric current, and uses the magnetic field to create linear motion.

Do solenoids push or pull?

Solenoids are basically electromagnets: they are made of a big coil of copper wire with an armature (a slug of metal) in the middle. When the coil is energized, the slug is pulled into the center of the coil. This makes the solenoid able to pull (from one end) or push (from the other).

Can you explain how a solenoid valve works?

Solenoid valves work by employing the electromagnetic coil to either open or close the valve orifice. When the coil within the solenoid is energised, the plunger is lifted or lowered to open or close the orifice. This is what in turn controls flow, regulating the movement of gas or liquid.

How is a solenoid constructed?

A solenoid is a device comprised of a coil of wire, the housing and a moveable plunger (armature). … The coil is made of many turns of tightly wound copper wire. When an electrical current flows through this wire, a strong magnetic field/flux is created.

What triggers a solenoid valve?

Solenoid valve is a control units which, when electrically energized or de-energized, either shut off or allow fluid flow. The actuator takes the form of an electromagnet. When energized, a magnetic field builds up which pulls a plunger or pivoted armature against the action of a spring.

What does an Electrovalve do?

The definition of a solenoid valve is an electro-mechanical valve that is commonly employed to control the flow of liquid or gas. There are various solenoid valve types, but the main variants are either pilot operated or direct acting.

How do you find the force of a solenoid pull?

The force is F=A *B^2/2*mu_knot. For a traditional solenoid, a common expression for magnetic field is: B=Bsol=mu_knot*N*I/g, where g = gap. Then, F=mu_knot*A*(NI/g)^2/2 [same as your equation, without NdFeB.] For your situation with permanent magnet core, you must determine the total field, B=Btot = Bsol + BPM.

How powerful can a solenoid be?

A linear solenoid can provide up to 30 pounds of force from a unit less than 2-1⁄4 inches long. A rotary solenoid can provide well over 100 lb-in of torque from a unit also less than 2-1⁄4 inches long.

How do you change the direction of a solenoid?

There are solenoids which can be made to repell the armature from the core, but they need permanent(usually) magnets in the core to work. You can get essentially the same result by adding a non ferrous* extension to the core so that when it travels inwards the extension moves outwards.

Article first time published on

How does a DC latching solenoid work?

Latching Solenoids utilize the electrical current pulse or internal permanent magnet material to maintain a set position without the constant application of an electrical current. … As the current flows in one direction energizing the coil field in the solenoid, it adds to the pull of the permanent magnet.

What is a push pull solenoid?

◆ A push solenoid is a pull solenoid with an added shaft that extends. out the bottom of the solenoid plunger to provide a pushing function. ◆ The attachment end of the moving plunger is always at the end. providing the movement.

How does a variable force solenoid work?

A variable force solenoid (VFS) is an electro-hydraulic device that controls pressure proportionally or inversely proportionally to a signal (voltage or current) obtained from the on-board controller of a powertrain. … A high flow VFS controls line pressure directly or are used for direct shift clutch control.

What energy conversion is a linear solenoid?

A “Linear Solenoid” is an electromagnetic device that converts electrical energy into a mechanical pushing or pulling force or motion.

How does a starter solenoid work?

Solenoids (also typically called starter solenoids or starter relays) operate by receiving both large electrical currents from your vehicle’s battery and smaller electrical currents from the ignition system when the car key is turned.

What are the two coils in the solenoid called?

In most applications, the wire is looped around a metallic core, called an armature. Solenoids feature two cores–the movable armature and a stationary core. As voltage is passed through the solenoid, a magnetic field is produced. This result is why solenoids are commonly used as electromagnets.

What happens when the solenoid is energized?

Solenoid valves are control units which, when electrically energized or de-energized, either shut off or allow fluid flow. The actuator takes the form of an electromagnet. When energized, a magnetic field builds up which pulls a plunger or pivoted armature against the action of a spring.

Do solenoids use a lot of power?

Generally, you can assume that solenoids consume energy in one state (either open or closed). The most important factors to consider are: Dimension of the solenoid valve: If you over-dimension the valve it might work perfectly, but will consume too much unnecessary energy.

What happens when the solenoid is de-energized?

In the de-energized state, the core spring, assisted by the fluid pressure, holds the valve seal down on the valve seat to shut off the flow. When energized, the core and seal are pulled into the solenoid coil and the valve opens.

How do you test a solenoid with a multimeter?

1. Set your multimeter on ohms. If the multimeter is not automatic, set it on 2k ohms. …
2. Place the probes of multimeter across the pins of a solenoid coil. If you find 3 pins there, one of them is a flat pin which is connected to the ground. …
3. Read the number on the multimeter.

How does a solenoid behave like a magnet?

A solenoid behaves like a bar magnet when a current is passed through it. It’s one end of behaves as Magnetic North Pole and the other end as Magnetic South Pole. Like in a bar magnet, the field lines emerge from one end and merge into another. … If the magnet is repelled, the end is north end of the solenoid.

How do I know if my solenoid valve is working?

Power on the solenoid valve, take off the connector plug, and use the multimeter to test whether there is power or not. Power on the solenoid valve and move the thin steel wire close to the coil to see whether its suction is viable. Repeat testing of the solenoid valve power on and off.

Does a solenoid always have a magnetic field around it?

A solenoid is a long coil of wire wrapped in many turns. When a current passes through it, it creates a nearly uniform magnetic field inside. … The magnetic field within a solenoid depends upon the current and density of turns.

What is a shower solenoid?

The first component that the water meets when you switch on your shower is the solenoid valve. It is essentially an on-off switch for the water. Whenever there is power running through it, the coil energises and the water passes through. The water then goes on through the stabiliser valve, or the flow control valve.

Can a solenoid valve be partially open?

Probable causeSolutionDamaged or bent armature tubeReplace the valve.

How do you adjust a solenoid valve?

To change the setting, turn the adjusting screw clockwise or counter-clockwise. During pressure adjustments, there should be flow through valve. Remove the cover and tighten the jam nut when the setting has been made.

How do I make my solenoid more powerful?

1. increasing the number of turns on the coil.
2. increasing the current.
3. placing an iron core inside the solenoid.

What is the most powerful solenoid?

The strongest continuous manmade magnetic field, 45 T, was produced by a hybrid device, consisting of a Bitter magnet inside a superconducting magnet. The resistive magnet produces 33.5 T and the superconducting coil produces the remaining 11.5 T.

Is solenoid used in generators?

In the case of a generator, the solenoid is usually controlled by the generator control panel. When you press the start button or turn a key, power is sent to the solenoid to allow it to open, before the engine is cranked. If the solenoid is not open, the engine won’t start, because it will not have any fuel supply.

How do you calculate the magnetic force of a solenoid?

1. B is the magnetic field,
2. µ₀ = 1.25664 * 10^-6 T*m/A is the vacuum permeability,
3. N is the number of turns in the solenoid,
4. I is the electric current,
5. L is the length of the solenoid.

What does F BIL stand for?

F = BIL (f=force, b=magnetic field, i=current, l=length of conductor)
