A crank is an arm attached at a right angle to a rotating shaft by which circular motion is imparted to or received from the shaft. When combined with a connecting rod, it can be used to convert circular motion into reciprocating motion, or vice versa.

How does crank and slider mechanism work?

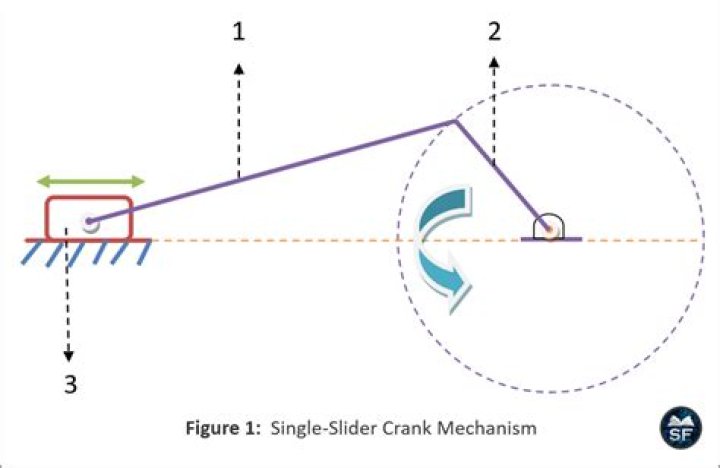

A slider-crank linkage is a four-link mechanism with three revolute joints and one prismatic, or sliding, joint. The rotation of the crank drives the linear movement the slider, or the expansion of gases against a sliding piston in a cylinder can drive the rotation of the crank. … This is called a quick-return mechanism.

What are the 4 main components of a crank?

• Main journals.
• Crank pins.
• Crank webs.
• Counterweights.

How does a crank move?

A crankshaft gets motion by piston via a connecting rod. The camshaft gets motion or power by the connecting rod. A crankshaft uses to transform the piston’s reciprocating movement into rotary motion. A camshaft uses to close and open the suction valve and exhaust valve according to the movement of the piston.

What is a crank shaft mechanism?

A crankshaft is a shaft driven by a crank mechanism, consisting of a series of cranks and crankpins to which the connecting rods of an engine is attached. It is a mechanical part able to perform a conversion between reciprocating motion and rotational motion.

What is crank and slotted lever mechanism?

The crank and slotted quick return mechanism converts rotatory motion into linear motion. It is extensively used in shaping and cutting machines and is particularly useful in cutting flat surfaces out of metal stock. … The mechanism consists of an arm attached to a rotating disc that moves at a controlled uniform speed.

Do sliders count as links?

A link connected to fixed line (generally known as ground) by a prismatic joint is called a slider. Sliders are sometimes considered to be cranks that have a hinged pivot at an extremely long distance away perpendicular to the travel of the slider. The link that connects two cranks is called a floating link or coupler.

Which force acts on crank shaft?

There are two kinds of forces acting on the crankshaft – 1. Gas pressure forces, 2. Inertial forces. The gas pressure forces are caused due to the combustion in the engine during the power stroke.

What forces turn a crankshaft?

The distributor makes the spark plugs spark, which ignites the fuel-air mix. The resulting explosion forces a piston to move down which in turn causes the crankshaft to rotate.

How is the piston connected to the crankshaft?

A connecting rod is the part of a piston engine which connects the piston to the crankshaft. Together with the crank, the connecting rod converts the reciprocating motion of the piston into the rotation of the crankshaft.

Article first time published on

What holds the piston?

The piston is domed and sealed at the top, but the bottom part of the piston is hollow. Inside this upside down cup is a wrist pin, a thick steel pin that connects the piston to the connecting rod and allows the rod to pivot back and forth slightly while still being firmly attached to the underside of the piston.

What holds the piston in an engine?

The piston is attached to the connecting rod by a short hollow tube called a wrist pin , or gudgeon pin . This wrist pin carries the full force of combustion.

What is the end of the crankshaft called?

A big end is the end of a connecting rod that engages with a crankshaft. The top end of the connecting rod is called the small end, and the bottom end is called the big end. He crawled under the engine every 15 miles or so to examine the big end for overheating.

What can cause a crankshaft to break?

• Mechanical overload of the crankshaft through abnormal combustion, water hammers, etc.
• Sudden jamming of the engine due to a faulty gearbox, loose counterweights, etc.
• Excessive rotary oscillation, e.g. faulty vibration dampers, faulty flywheels or couplings.

In which of the following mechanism crank is fixed?

In Scotch yoke mechanism, the crank is fixed in order to obtain the inversion.

What type of chain is formed in 4 bar chain?

Explanation: A four-bar linkage, also called a four-bar, is the simplest movable closed chain linkage. It consists of four bodies, called bars or links, connected in a loop by four joints. Generally, the joints are configured so the links move in parallel planes, and the assembly is called a planar four-bar linkage.

What is grashof law?

1. The law states that for a four-bar linkage system, the sum of the shortest and longest link of a planar quadrilateral linkage is less than or equal to the sum of the remaining two links, then the shortest link can rotate fully with respect to a neighbouring link.

How do mechanisms work?

A mechanism is a device that changes an input force or motion, into a different output force or motion. Some mechanisms make work easier to do, by allowing a smaller force to have a greater effect. Levers are the simplest type of mechanism.

Why quick return mechanism is used in shaper?

Quick return is a common feature of tools in which the action is performed in only one direction of the stroke, such as shapers and powered saws, because it allows less time to be spent on returning the tool to its initial position.

Which mechanism is obtained if the crank of slider crank mechanism is fixed instead of frame?

Second inversion: This inversion is obtained when link 2 (crank) is fixed. Application- Whitworth quick returns mechanism, Rotary engine, etc.

How does an engine rotate?

Most automobile engines rotate clockwise looking at the front of the engine. The front of the engine is the end that you can usually see if it isn’t all covered up with shrouds and guards, where all the belts and pulleys are.

What is a crankshaft pin?

A crankpin is the part of the crank of a crankshaft to which the connecting rod is attached. Crankpins transfer up-and-down motion between the crankshaft and connecting rod. … Connecting rods typically have two-piece crankpin bearings for connecting the lower end of the rod to a crankpin of a crankshaft.

Is connecting rod and piston rod the same thing?

In a piston engine, a piston rod joins a piston to the crosshead and thus to the connecting rod that drives the crankshaft or (for steam locomotives) the driving wheels. … The term piston rod has been used as a synonym for ‘connecting rod’ in the context of these engines.

Where is the piston pin located?

Piston pin is a connecting link between piston and connecting rod. It looks like a simple cylindrical shaft ,can be solid or hollow. At ends , it has a chamfer. The piston pin is held in the piston by circlips, while from the middle portion it is surrounded by the connecting rod smaller bore end.

How does a piston assembly work?

2.1 PISTON ASSEMBLY It transmits gas force generated during combustion to the connecting rod and crankshaft. As piston is connected to small end of the connecting rod with the help of gudgeon pin. It guides the connecting rod when gas force is transmitted. … Piston rings restrict the flow of hot gases into the crankcase.

What is the function of skirt in piston?

Definition of ‘piston skirt’ The piston skirt acts as a guide as the piston goes up and down in the cylinder.

How do rod bearings work?

Connecting rod bearings provide rotating motion of the crank pin within the connecting rod, which transmits cycling loads applied to the piston. Connecting rod bearings are mounted in the Big end of the connecting rod. A bearing consists of two parts (commonly interchangeable).

How are pins held in place?

Spring clips are used to hold the pins in place. A pivot point on the crankshaft is provided by the big end of the connecting rod.

What are the 3 rings on a piston?

Piston rings from Perkins come as three rings. They are the top compression ring, then the intermediate compression ring and finally the oil control ring. These parts are relatively small in size but play a large role in the main cylinder block of your engine.

How are valves opened?

Camshaft with pushrods When the camshaft is mounted in the engine block, long pushrods operate the rocker arms which in turn open the valves. … As the crankshaft rotates, each valve is opened by means of a tappet, pushrod and rocker arm. The valve is closed by spring pressure.

What causes piston slap?

“Piston slap is generally caused when the cold running clearance (piston-to-wall clearance) is large enough that when the piston rocks from side to side in the bore it “slaps” the side of the cylinder and causes noise,” explains JE Pistons’ Clayton Stothers.
