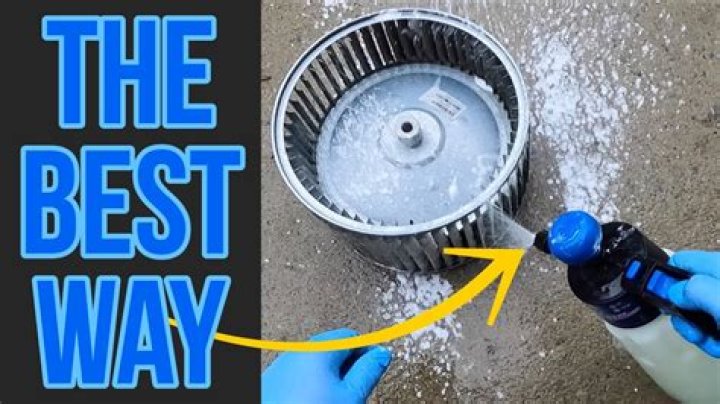

The fan wheel rotates clockwise or counter-clockwise, with the small forward-curved blades scooping the airflow and slinging it out as the wheel rotates. It is designed to move high-volume airflow with very little static pressure.

How do you know which way a blower wheel goes?

Use the hands of a clock for reference. If they’re tilted toward Clockwise Direction, as in the picture to the left, then you have a Clockwise Forward Curve Blower Wheel. That’s the direction the blower wheel will spin or operate, and that’s the direction of the intended air flow, as well.

How freely should a blower fan spin?

If the fan turns at all without forcing, it should spin when powered up. If the fan turns freely or not is not a definitive indication that is good or bad.

What is a blower and how does it work?

Blower is equipment or a device which increases the velocity of air or gas when it is passed through equipped impellers. They are mainly used for flow of air/gas required for exhausting, aspirating, cooling, ventilating, conveying etc. Blower is also commonly known as Centrifugal Fans in industry.

Why is a blower wheel called a squirrel cage?

A squirrel cage blower, also known as a centrifugal blower, is used to move air and gases in a variety of applications. This equipment is so named since its construction looks similar to that of a hamster wheel. … Squirrel fans are known for their superior energy efficiency compared to other types of blowers.

What is a squirrel cage in a furnace?

A squirrel cage furnace blower is a type of fans that is found in a furnace. It moves air through the furnace system to heat your house. Squirrel cage furnace blowers fit under the umbrella of centrifugal fans because they are shaped to force air away from the center of the fan.

How do I know if my blower is CW or CCW?

Wheel Diameter: Measure the diameter of the blower wheel – the longest distance from one side of the ring to the other side. From the appropriate perspective described above you will see the wheel is spinning clockwise (CW) or counter clockwise (CCW).

Do blowers increase pressure?

In general, a blower has a slightly higher pressure rise than a fan: from 1.11 to 1.2. Here again, pressure rise is defined as discharge pressure over inlet pressure. Blowers are used in situations where the system resistance is higher than that for a fan.

What is blower used for?

Blowers are equipment or devices which increase the velocity of air or gas when passed through equipped impellers. They are mainly used for flow of air/gas required for exhausting, aspirating, cooling, ventilating, conveying etc. Blower is also commonly known as Centrifugal Fans in industry.

Whats the difference between a fan and a blower?

A fan circulates air around an entire room, or space. A blower circulates the air only on the specific or pointed area. It is uses less pressure to produce large amounts of gas. It is uses high pressure to produce large amounts of gas.

Article first time published on

Can you lube AC fan motor?

While most current models of air conditioners have motors that don’t need to be oiled, many older units require periodic oiling to keep the fan in good condition. Oiling is recommended at the beginning of every cooling season. This is also a good time to inspect the fan blades and motor for signs of wear.

Why is a squirrel cage called a squirrel cage?

Squirrel cage motors are a subclass of induction motors, which harness electromagnetism to generate motion. They are so-called “squirrel cage” motors because the shape of their rotor – the inner component connected to the output shaft – looks like a cage.

What is the difference between a fan and an impeller?

Centrifugal fans extract air at right angles to the intake of the fan, and spin the air outwards to the outlet by deflection and centrifugal force. The impeller rotates, ausing air to enter the fan near the shaft and move perpendicularly from the shaft to the opening in the fan casing.

What is the speed of centrifugal fan?

Centrifugal blowers look more like centrifugal pumps than fans. The impeller is typically gear-driven and rotates as fast as 15,000 rpm. In multi-stage blowers, air is accelerated as it passes through each impeller. In single-stage blower, air does not take many turns, and hence it is more efficient.

How do you tell if a motor is CW or CCW?

If the shaft rotates to the left, your motor is counterclockwise shaft end, or CCWSE. To determine lead end perspective, hold your motor up and point the shaft away from you. If the shaft rotates to the right, your motor is clockwise lead end, or CWLE. If the shaft rotates to the left, your motor is CCWLE.

Can a furnace blower be used as dust collector?

The average static pressure of most small dust collection systems is 8″ to 10″. In other words a furnace blower does not have enough strength to overcome the static pressure of a central dust collection system. Also, the blower is not designed to handle dust.

How do I make my furnace fan quieter?

1. Adjust the fan speed. Your blower or furnace fan should be set to deliver the proper airflow per ton. …
2. Add ductwork. …
3. Add a bypass duct. …
4. Add or expand grilles and registers. …
5. Replace existing registers and grilles with high velocity models.

What does on the blower mean?

Definition of on the blower British, informal + old-fashioned. : on the telephone When I finally got him on the blower he said he couldn’t come.

Is a blower a compressor?

The main difference between an air compressor and an air blower is the pressure ratio of each. … A compressor crams air into a small space which makes the air denser. A blower moves air/gas with a moderate increase of pressure.

How do I increase blower pressure?

1. Adding any additional components in the flow path, such as heaters, nozzles, or air knives, will increase the pressure at the blower.
2. Additionally, as air is heated by a heating component it will expand which acts in a similar way to constricting the airflow path.

What is a blower curve?

A blower curve shows the characteristics of the blower through its entire operating range. However, operating a blower above its maximum pressure continuously will severely limit its lifespan. For this reason manufacturers include the pressure limit where a blower can safely operate for long periods of time.

How long can you leave an air mover on?

Depending on the amount of moisture, allowing the system to operate for up to 30 minutes should help. Using air movers should be viewed as the second half of carpet extraction.

Are blower fans good?

An air blower provides more powerful direct airflow than a fan. Blowers are great for workshops or drying tasks. Fans are cheaper to run vs blowers: they’re suited to cooling and ventilating larger areas. Use an air blower to target a small space, or a fan for cooling and ventilating a wide area.

Is a blower a supercharger?

A blower is just another name for a supercharger, particularly roots-type supercharger, which is probably one of the oldest styles of supercharger. … Technically speaking, roots-type superchargers do not actually compress air internally in the supercharger; instead, they push air into the intake manifold into the engine.

Can you spray wd40 on AC fan?

Unscrew the top grille of the air conditioner and carefully remove the fan without disturbing the electrical connections. … Most fans do not have lubrication ports, but if your fan does, place five drops of a specially made fan motor oil into the lubrication ports. Do NOT use WD-40 or other all-purpose lubricants.

Which oil is best for fan motor?

1. 3-IN-ONE 10038 Multi-Purpose Oil. …
2. WD-40 Smart Straw Sprays 2 Ways. …
3. CRC – 3045 Power Lube. …
4. Lucas Oil 10393 Penetrant Aerosol. …
5. CRC 03081 Machine Oil Spray.

Why does my AC sound like a jet engine?

Can your air conditioner do a great impression of a jet engine? This means that you’re more than likely having an issue with your air conditioner’s compressor. The compressor is the heart of your air conditioning system.

Why is my AC chirping?

Your AC Is Making Chirping Noises Chirping noises coming from your air conditioner usually indicate either that the bearings are dry, the fan is rubbing against the coils or blower cage, or the belt needs to be replaced.

Why does my AC squeal when I turn it on?

A loud squeal is produced when the A/C is turned on. This symptom is usually caused by a loose or worn air conditioning compressor belt. … This places a load on the engine and the drive belt that rotates the compressor. If the belt is loose or worn the belt can slip on the compressor pulley and emit a loud squeal.

Why does my AC make a high-pitched noise?

In most cases, a high-pitched whistling sound means that your air conditioner isn’t getting enough airflow through the return vents and ductwork: the ones that pull air from your home to the air conditioning evaporator coils to cool it. Your air conditioner has to work harder to pull enough air through the system.

Why does the rotor rotate?

The rotor is a moving component of an electromagnetic system in the electric motor, electric generator, or alternator. Its rotation is due to the interaction between the windings and magnetic fields which produces a torque around the rotor’s axis.
