How do you wire a 3 way dead end?

In the wiring methods above, the white wire, contained in the 14/3, was used as a neutral. In the next 2 methods the white wire will be used as a traveler wire not a neutral. Travelers carry the hot feed from 3way switch to 3way switch. Rating Above Average B ☺ Commonly used by professional electricians.

What happens if you wire a 3-way switch wrong?

Usually when a 3-way switch fails, lights can be toggled on and off at one switch, but not the other. If one of the two 3-way switches toggles the light(s) on and off, the other 3-way switch has probably failed. Follow these steps to find which switch is bad. Toggle each switch until the light come on.

What is the black screw on a 3-way switch?

The black screw has the black (common) wire that runs up to the light through the yellow cable. The two grounds are connected together and then to the green ground screw on the switch. To summarize, the black screw gets either the wire from the electrical panel or the wire going to the light.

Which wire is the switch leg?

Switching Point The switch-leg is still made up of two wires, but the hot wire connects directly to the switch and the two wires connect directly to the outlet. The second wire completes the circuit by connecting to the house neutral wire in the switch wiring box, instead of in the outlet wiring box.

Can a white wire be used as a switch leg?

As such, the white wire taped black in the 12/2 or 14/2 switch loop functions as the incoming hot wire, and the black wire acts as a switch leg to return the power to the fixture. Here, the white wire is actually a hot wire and is taped black to identify it as such.

How does a 3 way switch work as a single pole?

To convert a 3-way switch to single pole, one of the traveler wires is removed from the switch. In order for a 3-way switch to function as a single pole, the wires need to be connected to the common and one of the traveler terminals. It will not work if the wires are connected to the two traveler terminals.

What is the common wire in a 3-way switch?

Black wire: This is a hot wire that carries electricity from the power source to the first switch in a typical 3-way setup. It’s also called the “common wire” or the “line wire.” Unless the breaker is off, this black wire is always hot.

Can you use 2 wire for a 3-way switch?

Two three-way switches (s.p.d.t.), four diodes, and two wires also enable three-way switching action. … If you only have a two-wire cable to work with, you can still hook up a three-way switching circuit for your garage, or hallway, to enable you to turn a light on and off from either of two different locations.

Where does the neutral wire go on a 3 way switch?

The other wires in a circuit with 3-way switches are the neutral (usually white) and ground (usually bare copper or green). The neutral wire bypasses both 3-way switches but connects to the light fixture. The ground connects to the ground terminal on each switch and to the light fixture.

Article first time published on

Can you take power from a 3 way switch?

If you’re missing the hot/neutral, the only option you have is to run a totally new wire, or possibly (depending on how it’s wired), you can convert the 3-way to a single switch, and then re-purpose the wires to supply constant hot and neutral to the new outside switch (effectively, one of your 3 way switches would get …

Where does the hot wire go on a 3 way switch?

The black “hot” wire enters the switch on the left. Three-way wire(which includes red, black and white wires) runs from the switch on the left to the switch on the right, with the white wire carrying ground and the red and black wires carrying the output from terminals in the left switch.

Does a three-way switch need a neutral?

Well you’re in the right place for a 3-way. The most common wiring requirements of any hardwired automated 3-way light switch is a neutral wire and a traveler. Yes, there are a few… (read very, very, very few) switches that don’t require a neutral, but those will limit you to incandescent only.

What is a dead end three-way switch?

A ‘dead-end’ 3-way is one which only has one cable in the box…. the xx/3 from the other switch. The feed and switched circuit are both in the other box. Dead-ends are perfectly legal.

What color wires go on a 3 way switch?

There is no standard for wire colors on 3-way switch travelers. The colors will vary depending on whether NM cable or conduit was used. With NM cable, the wire colors for travelers will be black and red using 3-wire cable. With conduit, the wire colors for travelers could be any color.

What are the terminals on a three way switch?

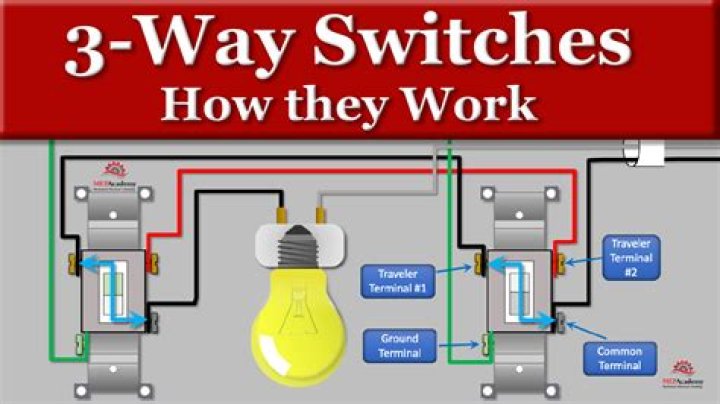

There are three screw terminals on the body of the switch, in addition to the green grounding screw. One screw, known as the common, is a darker color than the others. The other two screws, usually a lighter brass color, are known as the traveler terminals.

What happens if you mix up hot and neutral wires?

This happens when the hot and neutral wires get flipped around at an outlet, or upstream from an outlet. Reversed polarity creates a potential shock hazard, but it’s usually an easy repair. Any $5 electrical tester will alert you to this condition, assuming you have a properly grounded three-prong outlet.

Why does 3 way switch not work?

Sometimes, a 3-way circuit doesn’t work because someone tried to replace a defective switch and did not properly connect the wires. … Disconnect all three wires (or four, if the outlet is grounded) from both switches. Separate the wires so that they are as far away from each other as possible. 2) Turn the power back on.

What happens if you mix up line and load?

Here’s what happens when somebody wires a GFCI receptacle with the load and line wires reversed: The GFCI will work, in the sense that you can plug in a hair dryer and the hair dryer will blow hot air. … If the load and line wiring gets messed up, a ground fault (radio in the tub) won’t trip the GFCI.

How do you wire two switches and lights with the same power?

If you’ve mounted two switches in the same electrical box, prepare two black wires. Connect one end of the 6-inch wire to the top terminal of the first switch. Twist the other end together with the black wire from the incoming circuit cable and the black wire from the cable going to the second switch to form a pigtail.

Does it matter which side of a switch is hot?

A single-pole switch in a standard AC household circuit does not have polarity, so it doesn’t matter which end of the switch has the hot wire.

Can I connect red and black wires together?

Red Electrical Wires These wires are typically used for switch wiring as well as the interconnection between smoke detectors hard-wired into the power system. You can link two red wires together, or you can link a red wire to a black wire. Since red wires conduct current, they are considered hot.

Can I wire a 3-way switch for single pole?

Yes it can work. 3-way switches are spdt (single pole double throw) with 3 screw terminals, and regular switches are spst (single pole single throw) with 2 screw terminals. Just pick the correct two contacts and you are good to go. .

What is the difference between single pole and 3-way switch?

The most common household switch, a single-pole, has two terminals and simply turns power on or off. A three-way switch has three terminals; a four-way has four. … You can usually replace any single-pole switch with a dimmer.

Do light switches switch neutral?

light switches do not need a neutral. they typically only need to switch the hot. although the neutral wire is usually run through the box.

Can I use the neutral wire as a hot wire?

A neutral wire returns electricity from the hot wire back to a grounded portion of the home’s electrical panel to complete the circuit. … Furthermore, neutral wires can be used as a hot wire if both ends are clearly marked with colored electrical tape (black or red) that corresponds to its repurposed function.

Should I switch the hot or neutral?

Some people wonder “what difference does it make which wire gets connected?” While it is true that wiring the hot or the neutral wire to the switch will both break the circuit, only wiring the hot wire will do it safely. If you interrupt the hot wire at the switch, the power stops at the switch and can flow no farther.

Does a 3-way switch need 12/3 wire?

You cannot do it using only 2 conductor cable (12-2), unless you run two of the rather than a single cable. As shown in the diagrams and as described, you must have 3 wires between switches, and that means 12-3.

Can you replace a 3-way switch with a 2 way switch?

To change a three-way switch to a two-way switch, deactivate and remove the extra three-way switch. A three-way wall switch is single pole double throw (SPDT) with three connection wires and is typically wired with 12/3 or 14/3 cable between the two switches.
