How do you test a hunter X-core sprinkler system?

X-Core – Test Program of All Stations

1. With the dial in the RUN position, press and hold the PRG button. The station number will be displayed and the time will be flashing.
2. Quickly use the plus (+) or minus (-) buttons to set the run time from 1 to 15 minutes. The run time needs to be entered only once.

How to troubleshoot a Hunter X Core pump?

Incompatible or defective relay of solenoid. Under sized wire to the pump or master valve. Check the master valve or pump start wire for continuity. Replace or repair the shorted wire. Check that all wire connections are good and watertight. Check electrical specifications for pump relay – Do not exceed controller’s electrical rating.

What kind of battery does X Core sprinkler system use?

A high-energy lithium battery is included with your X-Core controller. The battery allows the user to remotely program the controller without connecting AC power. It is also used to keep the current time and day during power outage conditions. To replace the battery: 1. Remove the screw from the battery holder.

What should I do if my sprinkler controller is not working?

Go to one of the irrigation valves and turn the solenoid 1/4 to 1/2 a turn counter-clockwise. If the valve opens and sprinklers turn on, your valve is working and you’ll need to check the controller and field wiring.

How can I Secure my X-Core Hunter controller?

Secure one screw into the wall. Install screw anchors if attaching to drywall or masonry wall. 2. Slide the keyhole on top of the controller over the screw. 3. Secure the controller in place by installing screws in the holes below the terminal strip.

How to reset a Hunter X-Core irrigation controller?

Resetting a Hunter X-Core is easy. To reset the irrigation controller, all you need to do is press the negative, the hand and the program keys at the same time, then use a small tool to press in the small reset button on the side of your controller.

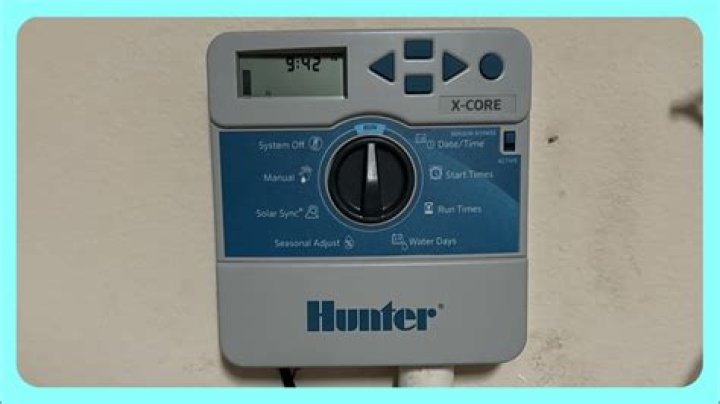

What kind of controller is the Hunter X Core?

Irrigation Walk through Hunter X-Core Controller – YouTube Terry McNair from Real Turf Solutions explains how to use the Hunter X-Core Controller. Terry McNair from Real Turf Solutions explains how to use the Hunter X-Core Controller.

Incompatible or defective relay of solenoid. Under sized wire to the pump or master valve. Check the master valve or pump start wire for continuity. Replace or repair the shorted wire. Check that all wire connections are good and watertight. Check electrical specifications for pump relay – Do not exceed controller’s electrical rating.

Why does my X-core system turn on again?

X-Core – Station Repeats A common reason for a controller to repeat a cycle is too many programmed start times. Only one start time per active program is required, a second start time will cycle the program an additional time. NOTE: In the Start Times dial position, the numbers 1-4 do not represent stations.
