How do you test a hot water zone valve?

To test if your zone valve is working, switch off demand for your hot water (you can do this via the timer – set Hot Water to Off). Now create demand for central heating – turn up the thermostat and make sure the timer is set to ‘On’ or ‘Continious’.

What happens when a hot water zone valve is opened?

On a call for heat, the valve is opened. When it reaches the fully open position, the end switch “makes” (makes contact), causing the aquastat relay to pull in, starting the circulator and the burner. If the circulator control and high limit switches are closed, the circulator and burner come on.

What causes hot water to run through the heating zone?

This motor can sometimes break or wear down, and the valve will stay closed or open. An open valve will cause hot water to run through the heating zone whenever the furnace turns on.

What does open position on flow control valve mean?

OPEN position on the flow control valve – means hot water will flow by convection (and possibly by circulator) – you do not want this position. CLOSED position on the flow control valve- means the zone is manually shut off and no water should flow regardless of whether or not a circulator is runnignb.

How is a backflow preventer valve used in a heating system?

At a hot water heating system a heating system backflow preventer check valve is used to keep hot, high pressure water in the hydronic heating system from flowing backwards through a boiler water feed line into the building water supply – a sanitation concern.

How does a zone valve work on a hot water heater?

Zone Valves on Indirect-Fired Domestic Hot Water Heaters. A separate loop of piping conducts water from a nearby heating boiler, through the coil in the bottom of the indirect fired water heater tank (thus transferring heat to water in the water heater tank), and back to the heating boiler.

What are the parts of a zoned heating system?

The basic component of a zoned heating system is a zone valve, which controls the flow of water in a hydronic heating system. Inside the valve, an actuator opens and closes the valve based on the thermostat setting for that zone. Zone valves are available in two- or three-way valve configurations and in various connection types.

When to replace a Honeywell zone control valve?

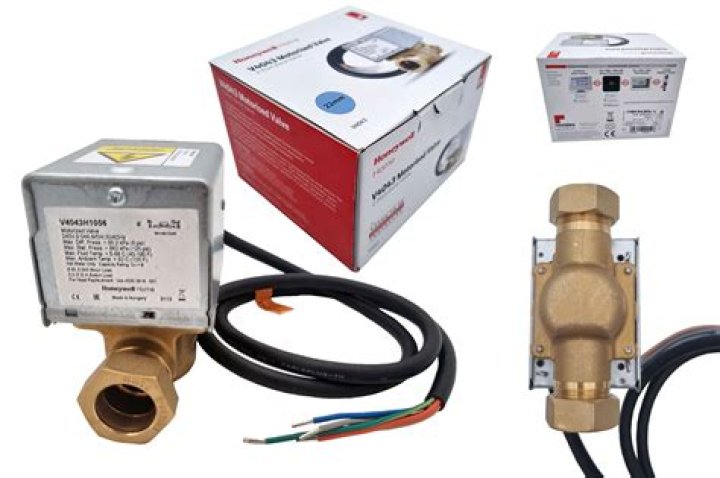

Provided the wiring and thermostat are correct and operating, if no hot water flows past the valve on a call for heat (feel the pipes for heat) it may be jammed and need replacement Our photo (left) shows the manual control valve in its “automatic” or normal position on a Honeywell™ heating zone control valve.

What to do if your hot water zone valve is stuck?

Some exceptions will be where a plunger will have to be pushed down manually to see if it is free, as these types of valves do not employ the paddle-type valve system. If the motor assembly is sticking, change the powerhead. If the plunger or paddle is sticking, a plumber will have to change the valve assembly.
