How do you size a propane supply line?

Add approximately 5 feet of pipe per fitting. LP Example: A machine with a burner that requires 440,000 BTU would need a 1” pipe for a 20′ long run. Natural Gas (NG) flow is given in thousands of BTU/hr. – One cubic foot of LP gas – 1000 BTU Nominal pressure at the burner for Natural Gas is 3.5” of water column.

What size is my propane pipe?

1. pressure less than 1 1/2 psig.
2. fittings factor 1.5 – equivalent pipe length = pipe length + 50%
3. pressure drop 0.5 inches water column.
4. energy content in propane gas 2500 Btu/cu ft.
5. One MBH is equivalent to 1000 BTU’s per hour.
6. 1 CFH ≈ 2.54 MBH.
7. copper tubing type L.

Can you use the same pipe for natural gas and propane?

The two are not interchangeable; each fuel source requires special gas utilization fittings. If you want to switch between the two, you’ll need a conversion kit for the appliances’ manufacturer for the installation process.

Can SharkBite fittings be used for propane?

Do not use with natural gas, propane, fuel oil or any other fluid, chemical or product. SharkBite® PEX tubing (non oxygen barrier) is for use with potable water only and is not approved or intended for any other use. No, fittings are only certified for potable water and radiant heating installations.

What happens if gas pipe is too big?

Problems associated with undersized piping can link directly back to the plumbing designer and can have substantial additional costs. The simple solution to avoid these potential problems is to oversize the piping. Larger piping has less pressure loss, lower velocity, and is perceived to be less likely to clog.

How big is a propane gas pipe fitting?

pressure less than 1 1/2 psig fittings factor 1.5- equivalent pipe length = pipe length + 50% pressure drop 0.5 inches water column energy content in propane gas 2520 Btu/cu ft One MBH is equivalent to 1000 BTU’s per hour

What kind of Piping do I need for a propane line?

Copper piping is an exceptional option for this connection line as it is flexible and bendable to maneuver through other appliances and obstacles. Copper is a safe material that is typically corrosion resistant, though if placed underground it may mix with some soils that could cause problems with the integrity of the pipe.

What is the yard line for a propane tank?

Underground Propane Piping – Yard Line. The gas line that runs between the tank and the structure housing the gas appliances is the service piping, also known as the yard line.

Where are the pressure settings for propane and natural gas?

This article series gives the standard pressure ranges and pressure settings for LP gas, propane gas, and natural gas fuels, including pressures found in the distribution service piping, in the in-building gas piping, and at gas fired appliances such as gas stoves, clothes dryers, furnaces, boilers, and LP gas or natural gas fired water heaters.

What do you need to know about propane pipe sizing?

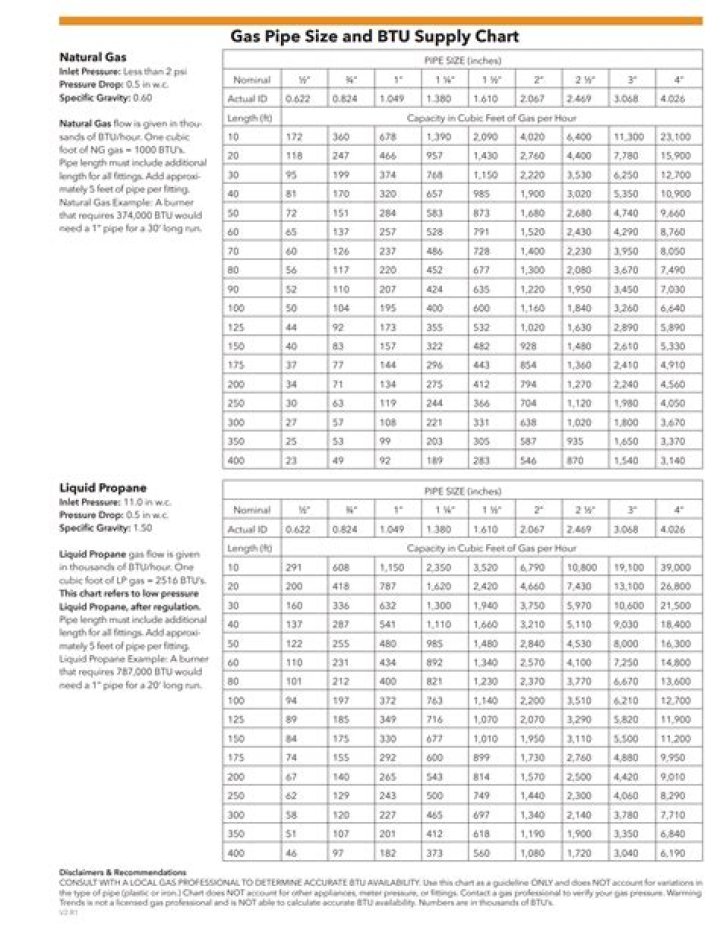

The tables you can see below are designed to be used with propane gas pipes sizing. There are three of them. The first table refers to steel tubing. You can see the pipe size in inches and the pipe length related to the overall capacity.

How big does a propane burner need to be?

Liquid Propane (LP) Gas flow is given in thousands of BTU/hr. – One cubic foot of LP gas – 2516 BTU This chart refers to low pressure LP, after regulation, Standard nominal pressure at the burner for Liquid Propane Gas is 11” of water column. Pipe length must include additional length for all fittings. Add approximately 5 feet of pipe per fitting.

How big of an area can gas piping be installed in?

Piping for other than dry gas conditions shall be sloped not less than 1 / 4 inch in 15 feet (6.4 mm in 4.6 m) to prevent traps. [NFPA 54:7.2.3] Gas piping shall be permitted to be installed in accessible spaces between a fixed ceiling and a dropped ceiling, whether or not such spaces are used as a plenum.

What’s the proper size for a gas line?

Gas piping should be sized in accordance with the tables in the Standard Gas Code or by other engineering methods approved by local Authority Having Jurisdiction. When sizing the gas line make sure you add 5 feet per elbow to the total length.
