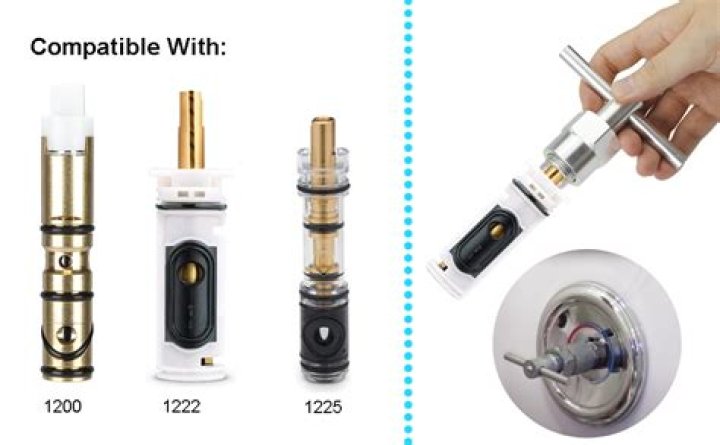

How do you replace a Moen 1225 shower cartridge?

Use pliers on the white plastic tool and loosen the cartridge by twisting 1/4 turn each direction one at a time. After removing the white plastic tool, grasp the cartridge stem and pull it straight out of the valve (using pliers or an adjustable wrench). You can now install your new cartridge.

Is there a difference between Moen 1225 and 1225B?

The 1225b is just bulk packaging of the single 1225. If you buy Moen products, keep the receipt, they have lifetime warranty for purchaser. There is NO difference between a 1225B and a 1225 cartridge.

Why did my Moen 1222 shower handle stop working?

We replaced a Moen 1222 cartridge after the shower handle stopped working. The handle would turn and no water. We replaced the cartridge — wrongly at one point and had water coming out of the stem. A…  read more

What happens when you replace a Moen 1225 cartridge?

Replaced 1225 cartridge on single push pull Moen faucet. Cold water fine. Low stream on hot water. Tried to run hot water with no cartridge. Not … read more

What kind of water comes out of a Moen 1222?

I replaced my moen 1222 cartridge in shower and now water only comes out in a trickle. Cannot get water to come out at normal pressure. Any suggestions would be appreciated.

Why does water come out of valve with Moen cartridge removed?

If water comes out of valve with the cartridge removed. But no water pressure out of both tub spout nor shower head then there must be a blockage of debris in the pipe leading to the spout. Sometimes it can be some hard water scaling from removing the cartridge. Also common is a small piece of rubber seal from the old cartridge.

How is water flow after replacing a Moen 1225 cartridge?

After replacing a Moen 1225 cartridge my water flow is very weak. With the cartridge removed the water pressure coming out of the valve is great. Installed it is just a trickle. I tried swapping out the new cartridge with yet another new cartridge – same result. Show More Show Less Ask Your Own Plumbing Question Share this conversation

Can a Moen single handle faucet be replaced?

The MOEN Single-Handle Replacement Cartridge works with many MOEN single-handle bathroom sink and kitchen faucets. The cartridge is made with cast metal and plastic for strength. The MOEN replacement cartridge installs quickly and easily, with instructions included. MOEN faucet cartridge is a genuine part

How to loosen a moentrol 1225 shower cartridge?

Using the plastic twisting tool (see image A below) provided in the 1225 cartridge kit (#6), rotate the cartridge (#6) 1/4 of a turn (90 degrees) in either direction. This will help loosen the cartridge (#6). Remove the twisting tool (A) from the top of the cartridge (#5).

How do you remove a Moen cartridge from a Philips faucet?

Using a Philips screwdriver unscrew the handle screw. Pull the handle off from the faucet and pull the limit stop off. Remove the washer from the cartridge and use pliers to remove the retaining clip. Pull the stemp up on the old cartridge to relieve any pressure in the faucet.
