How do you remove a Kohler shower trim plate?

Trim with Plug Buttons

1. Using a flat-blade screwdriver, gently pry the plug button from the front of the valve trim.
2. Using a Phillips screwdriver, unthread the screw and remove the handle and adaptor from the valve stem.
3. If applicable, rotate the cover counterclockwise to remove.
4. Slide the sleeve off the valve.

How do I find my shower valve trim?

Look at the center of the trim plate behind the shower handle to find a brand name or manufacturer symbol. If you see a “K,” the faucet is a Kohler unit; an “M” signifies Moen. American Standard, Delta and Price Pfister typically print their entire name on the faucet itself.

What kind of shower trim does Kohler use?

Memoirs® Stately Rite-Temp® shower valve trim with lever handle and 2.5 Coralais® Rite-Temp® bath and shower trim set with lever handle, slip-fi…

How to remove single control shower valve trim?

Trim with Plug Buttons Using a flat-blade screwdriver, gently pry the plug button from the front of the valve trim. Using a Phillips screwdriver, unthread the screw and remove the handle and adaptor from the valve stem. If applicable, rotate the cover counterclockwise to remove.

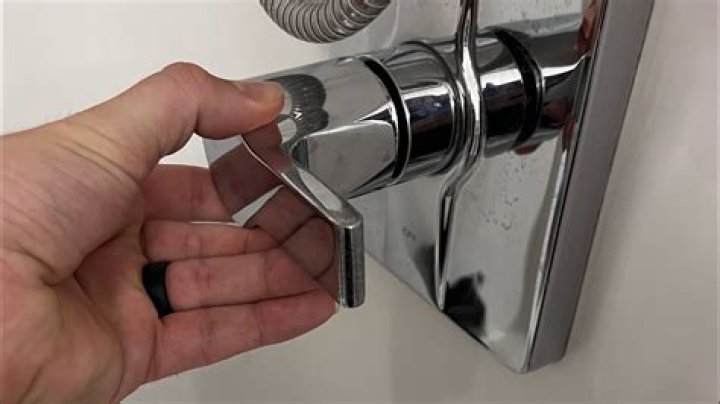

How do you remove a Kohler shower handle?

Using a Phillips screwdriver, unthread the two screws and remove the handle sleeve, shroud, and faceplate. If applicable, use a flat-blade screwdriver to remove the pin from the adaptor. Unthread and remove the adaptor from the valve.

What kind of tool do I need to remove shower trim?

You will need them in order to put your trim back together. You may need the following tools to remove your trim: 3/32” hex wrench, Phillips screwdriver, and a flat-blade screwdriver. Once you have removed your valve trim, the documents listed below are available to help you identify your shower valve.

How to identify single control Bath and shower valve?

This allows you to expose the valve for proper identification. For assistance with removing the trim, refer to “Identify and Remove Single-Control Bath and Shower Trim”. Once the trim is removed, refer to the information below to identify your shower valve.

What are the different types of Kohler shower valves?

Rite-Temp® pressure-balancing valve body and cartridge kit with service Rite-Temp® HiFlow Rite-Temp® 3/4″ pressure-balancing single-handle with Rite-Temp® 1/2″ pressure-balancing valve with push-button diverter and s… Forté® Rite-Temp® bath and shower trim with slip-fit spout and 1.75 gpm

Using a Phillips screwdriver, unthread the two screws and remove the handle sleeve, shroud, and faceplate. If applicable, use a flat-blade screwdriver to remove the pin from the adaptor. Unthread and remove the adaptor from the valve.

How to remove single-control bath or shower trim to?

This document is intended to help identify and remove the trim from your KOHLER single-control bath or shower valve. Identify your valve trim by referring to the thumbnails, then follow the instructions listed below the image to remove the trim.
