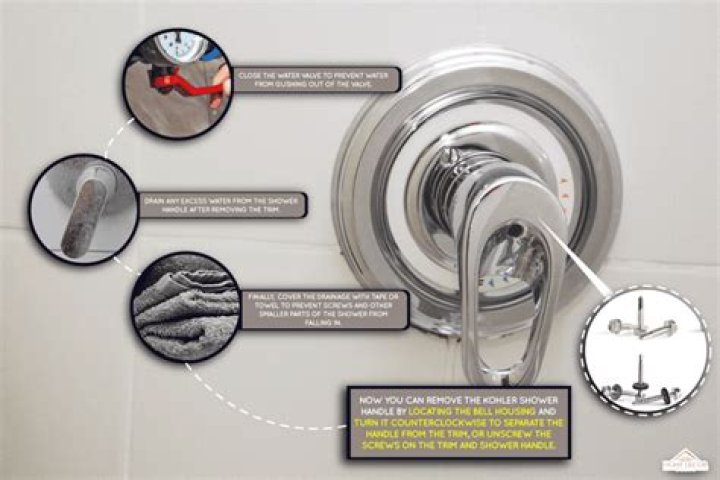

How do you remove a Kohler shower escutcheon?

Slide the handle and bonnet off the valve. Gently pry the cover plate from the escutcheon to expose the two screws. Using a Phillips screwdriver, unthread the screw and remove the adaptor from the valve stem. Using a Phillips screwdriver, unthread the two screws and remove the escutcheon.

How do you remove a shower faceplate without screws?

To remove them, you might need to locate and remove a cap or button on the handle base. In other cases, your handle may twist off at the base. Basically, once you reveal the hidden screw, you can use a screwdriver or Allen wrench to remove it. Then, with the screw removed, the shower handle should easily lift off.

Do you need to shut off water to change shower valve?

Locate the shower shutoff valves and close them to stop leaks as you replace a shower valve. The shutoffs for the shower are typically located to the sides of the valve, one for hot water and one for cold water – both need to be shut.

How do you remove escutcheons from a wall?

To remove one that is attached with caulking, take a plastic putty knife and gently cut through the caulking to lift the plate away from the wall. It is important to always use a putty knife when removing a escutcheon attached by caulking. Using an improper tool can result in damage to the mounting surface.

How to remove single control shower valve trim?

Trim with Plug Buttons Using a flat-blade screwdriver, gently pry the plug button from the front of the valve trim. Using a Phillips screwdriver, unthread the screw and remove the handle and adaptor from the valve stem. If applicable, rotate the cover counterclockwise to remove.

Where do you put the handle on coralais k-15101?

Refer to the following directions for installation of the handle and trim for the Coralais K-15101. To install the handle to the escutcheon plate, first install the thrust washer on to the plate from the back side. Place the handle on the outside of the escutcheon plate.

How do you install a handle on an escutcheon?

To install the handle to the escutcheon plate, first install the thrust washer on to the plate from the back side. Place the handle on the outside of the escutcheon plate. Install the two screws into the handle coming up from the back side of the escutcheon.

Is it easy to replace an escutcheon in a shower?

They are really easy to replace. Simply unscrew the shower head, slip off the old U-G-L-Y escutcheon and slip on the new one, then screw the shower head back on.

How do you remove a single control shower?

Slide the handle and bonnet off the valve. Gently pry the cover plate from the escutcheon to expose the two screws. Using a Phillips screwdriver, unthread the screw and remove the adaptor from the valve stem. Using a Phillips screwdriver, unthread the two screws and remove the escutcheon.

To remove one that is attached with caulking, take a plastic putty knife and gently cut through the caulking to lift the plate away from the wall. It is important to always use a putty knife when removing a escutcheon attached by caulking. Using an improper tool can result in damage to the mounting surface.

Refer to the following directions for installation of the handle and trim for the Coralais K-15101. To install the handle to the escutcheon plate, first install the thrust washer on to the plate from the back side. Place the handle on the outside of the escutcheon plate.
