How do you pipe a sewage ejector pump?

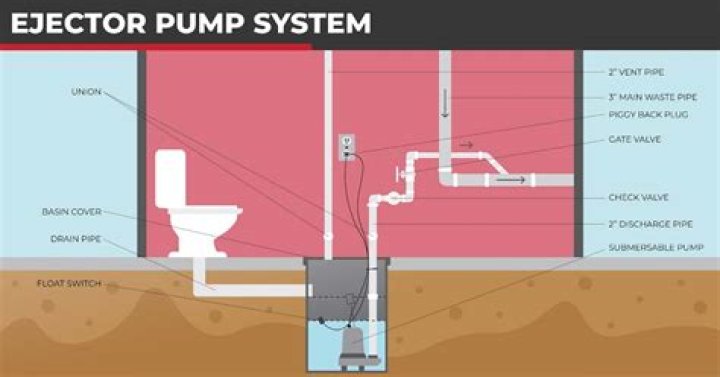

How to Install a New Sewage Ejector Pump

1. Step 1: Prepare the Basin.
2. Step 2: Install New Check Valve.
3. Step 3: Test the Pump and Float Switch.
4. Step 4: Attach Adapter and Pump to Discharge Pipe.
5. Step 5: Drill a Weep Hole.
6. Step 6: Measure and Cut PVC Pipe.
7. Step 7: Lower Sewage Pump Into Ejector Pit.

Does a toilet need a dedicated vent?

About Plumbing Vents Toilets must be vented to the roof using a vent stack. Almost all plumbing fixtures require vents to operate properly. Without a vent, waste and other liquids could discharge down a pipe only with the use of a special sewage lift pump.

How many sewer vents do I need?

At least one main vent stack is required for every building that has plumbing when connecting separately to the sewer for the building or its septic tank. The stack has to run the most direct route through open air or be ventilated to extend to open air.

Do you have to vent a sewage pump?

Most sewage basins require a dedicated 2″ vent. The vent does not have to go up directly above the basin. Running a new vent through the inside of an existing wall up through the attic and roof is fairly easy in many homes.

Where does the sewage ejector tank vent end?

The tank vent should be a dry vent that either terminates at the exterior of the house or connects to another dry vent that terminates at the exterior.

What do you need to know about sewage ejector pumps?

A vent is required for a sewage ejector pump installation in order to equalize pressure during pumping and to provide an outlet for sewer gasses.

How big of a vent do I need for my ejector tank?

The ejector tank should be vented by a connection to the top cover that’s at least 1 1/2 inches in diameter, although 2-inch vent pipe is common in this application. The tank vent should be a dry vent that either terminates at the exterior of the house or connects to another dry vent that terminates at the exterior.

Can a clothes washer affect a sewage ejector tank?

A: Mike Casey, a licensed plumbing contractor and ICC Certified Combination Inspector in San Diego responds: Clothes washers pump out a lot of water quickly, which can put a load on the sewage ejector pump. But that shouldn’t affect the traps connected to the sewage ejector tank if it’s properly vented.

The tank vent should be a dry vent that either terminates at the exterior of the house or connects to another dry vent that terminates at the exterior.

A vent is required for a sewage ejector pump installation in order to equalize pressure during pumping and to provide an outlet for sewer gasses.

The ejector tank should be vented by a connection to the top cover that’s at least 1 1/2 inches in diameter, although 2-inch vent pipe is common in this application. The tank vent should be a dry vent that either terminates at the exterior of the house or connects to another dry vent that terminates at the exterior.

What happens when the vent of an ejector pump becomes clogged?

If the vent becomes clogged with debris from either end, gasses won’t escape the system and your home may develop an odor. The ejector-pump vent also equalizes pressure in the basin to keep the drainage water flowing in the right direction.
