An asymmetrical ferrule is cone shaped, and can only be placed into the fitting body in one direction (usually with the tip of the cone facing into the fitting body). Symmetrical ferrules look like two cones back-to-back, and can be placed into the fitting body in either direction.

Which way does the ferrule go?

An asymmetrical ferrule is cone shaped, and can only be placed into the fitting body in one direction (usually with the tip of the cone facing into the fitting body). Symmetrical ferrules look like two cones back-to-back, and can be placed into the fitting body in either direction.

How do you install a compression fitting on a copper pipe?

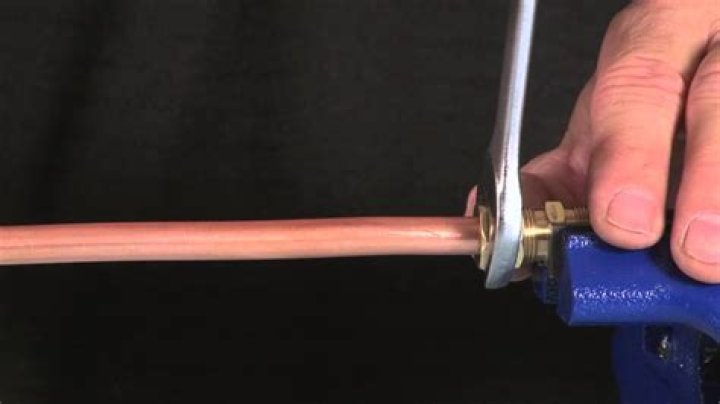

Slip the compression nut from the compression fitting onto the pipe, then slip on the compression ring. Slide both pieces down so they are 1 inch or so from the end of the pipe. Fit the compression fitting onto the pipe (or fit the pipe into the fitting, as applicable) until the pipe stops inside the fitting.

Do compression fittings work on copper pipe?

Compression fittings in the world of plumbing are very common. They are a safe way to connect copper pipe without the use of heat making them popular with DIY’ers. Many different types of valves, tees, connectors and utilities require compression fittings in order to make them water tight and safe.

What is a tube ferrule?

A pipe ferrule is one of the types of pipe fitting which are manufactured by using various materials. … A pipe ferrule includes a circular clamp to connect together and join wires, fibers, or posts. It is a type of ring or cap that is connected to an object to protect from splitting, damage, or wear.

How do ferrules work?

Ferrules are also often referred to as eyelets or grommets within the manufacturing industry. Most ferrules consist of a circular clamp used to hold together and attach fibers, wires, or posts, generally by crimping, swaging, or otherwise deforming the ferrule to permanently tighten it onto the parts that it holds.

What is brass ferrule?

Made of soft brass or copper when used in MDPE pipes, or plastic when used in PVC piping, it is commonly called a compression fitting or a compression ring bushing. … The Ferrule is slid onto a pipe and seated into an adjoining compression fixture.

Can you replace copper pipe with flexible?

Replacing old plumbing pipes is a very common project, and all homes will need to have this done sooner or later. … While copper pipes and fittings are still common, many professional plumbers now use flexible PEX for all new construction and for most repairs and extensions to existing copper systems.

Can I use brass ferrule on plastic tubing?

Brass ferrules are normally used on copper tubing and can cut into the soft plastic supply line.

What is a flex connector?

The basic function of flexible connectors is to provide piping systems with the flexibility needed to absorb noise and vibration, compensate for thermal growth, or permit motion of other piping elements. CONTROLS VIBRATION – Normal mechanical equipment vibrations are reduced at the connector. …
