How do you install an anti-siphon valve?

This is a lot of steps but they are easy:

1. Turn the manual on/off lever to the “on” position.
2. Next, if there is a bleed screw, open it one turn (water will dribble out.)
3. Now close the flow control until the valve closes.
4. Wait one minute.
5. Close the bleed screw and turn the manual on/off lever to the “off” position.

Where should I install anti-siphon valve?

When installing a siphon valve it is best to place it directly after the isolation valve in the pipe system. The isolation valve is the main shut-off valve for your sprinkler system. It is usually placed directly after the coupling made with the main water line in your plumbing system.

How do you drain an anti-siphon valve?

On some units there will be drain fitting located beneath the Anti-siphon device or backflow preventer. Open this drain. Located normally in a green lidded box called the valve you will find your sprinkler system manifold drain. Turn this drain to the open position.

Are anti-siphon valves necessary?

You usually only need them if your sprinkler heads are above the level of the valve by more than six inches or so. The lines in your house are pressurized by the water in them, so the risk of backflow is pretty low unless your heads are well above the valve.

Why do anti siphon valves leak?

Causes of Leaks When an anti-siphon valve leaks, it could be because dirt has gotten into the valve and is preventing the poppet from seating completely when the water is turned on. Either condition allows pressurized water to spray out of the valve when the faucet or sprinkler is on.

Can you put a backflow preventer underground?

Installing a backflow preventer underground is not safe. People will do it for aesthetic reasons, but you’re opening yourself up to many liabilities. Toxic gases can leak in a vault and wild animals can live in a vault, which poses a danger to anyone who has to go in there to test or repair your equipment.

Where do you install an anti siphon valve?

Anti-siphon valves must be installed at least 6″ above the highest sprinkler head on the line in order for the backflow de- vice to work properly. Both automatic and manual versions are available. The second type of valve is an “in-line” valve. It is installed below ground, preferably in a valve box, for ease of maintenance.

Can a high drain loop be used for an anti siphon?

Installing a high loop is very easy compared to an anti-siphon (air gap) device will involve drilling the kitchen sink or counter top so you can install the anti-siphon. Some kitchen sinks have a hole already and this hole may be used for the anti-siphon or air gap device.

Why do you need an anti siphon valve for a sprinkler system?

When an in-ground water sprinkler system is used to water a lawn, there is always the possibility that fertilizer or other toxic chemicals could find their way back into the pipes, and the anti siphon valve is a cheap way to make sure that does not happen.

What’s the difference between backflow preventer and anti siphon valve?

The term “backflow preventer” is an umbrella term that covers the mechanisms used for ensuring that water does not reenter the public water system once it’s been sent through an irrigation system. An anti-siphon valve is a specific kind of backflow preventer, making it a subcategory of the umbrella term.

What is the purpose of anti siphon valve?

The purpose for the anti-siphon valve is to prevent pool water from returning into the tap water. This is also the area where you would shut off and turn on the water to the pool.

How does the anti syphon valve work?

An anti-siphon valve is simply a piece of equipment that lets air in , while stopping the exit of water that is under pressure, thus delivering the effect of breaking the siphon. Virtually all generators, engines, and marine heads below the waterline use anti-siphon valves.

What is an anti siphon valve used for?

Antisiphon Valve. A valve installed in an aboveground tank system to prevent liquid from accidentally flowing out of the tank. An anti siphon valve is often needed where the liquid level in the tank is higher than the elevation of the dispenser or any of the product piping.

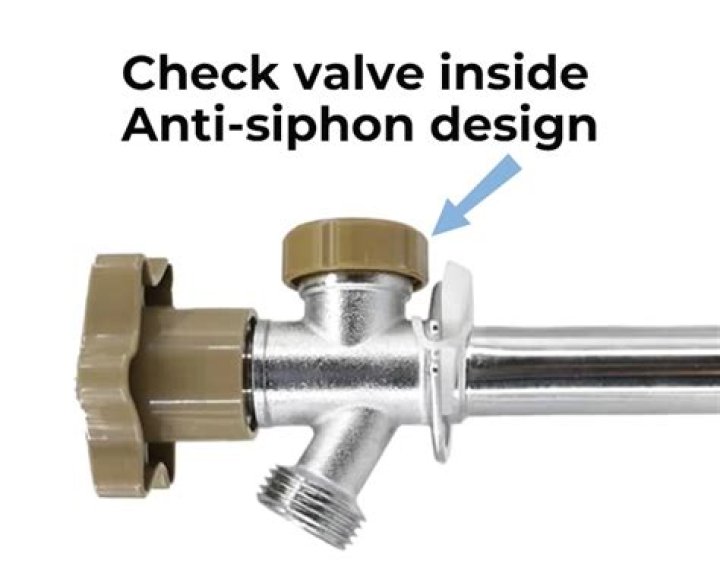

What is an anti-siphon faucet?

Anti-siphon faucets, also known as back-flow prevention faucets, install at outdoor spigot connections where garden hoses are frequently used.
