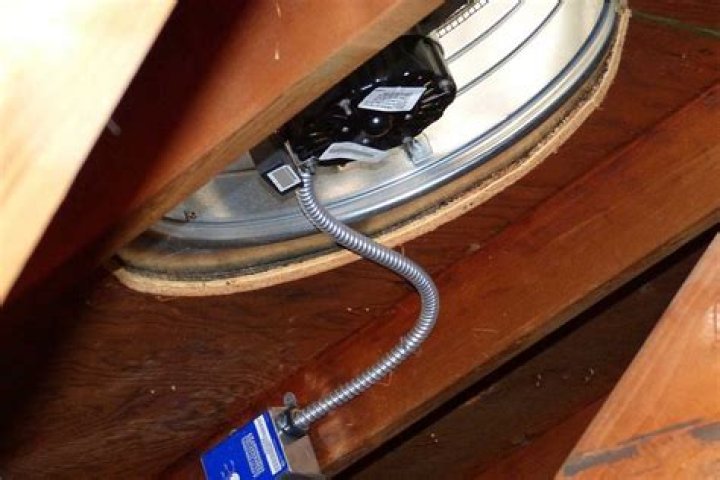

Mount the thermostat in the attic. Ideally, the thermostat should be mounted to a rafter along the wiring path and away from the draft of the fan.

Where does the attic fan thermostat go?

Mount the thermostat in the attic. Ideally, the thermostat should be mounted to a rafter along the wiring path and away from the draft of the fan.

How do you wire a thermostat to control a fan?

Connect the black wire coming from the exhaust fan to the red wire on the thermostat. Connect the white wire coming from the exhaust fan to the black wire on the thermostat. Use wire nuts to make these connections. Connect the ground wire (green) to the terminal screw in the electrical box.

Do attic fans have a thermostat?

A powered attic ventilator, or attic fan, is a ventilation fan which regulates the heat level of a building’s attic by exhausting hot air. A thermostat is used to automatically turn the fan off and on, while sometimes a manual switch is used. An attic fan can be gable mounted or roof mounted.

What temp should an attic fan turn on?

When it comes to an attic fan’s temperature setting, it’s best to adjust it to anywhere from 90 to 110 degrees Fahrenheit. It’s impossible to state a single number because your attic can effortlessly soar above 95 degrees (on average).

Should I turn off my attic fan in the winter?

Q: Should I turn off my attic power fan and close the vents during winter? A: Although the natural instinct to keep the house warmer may be to close the attic vents, that is definitely not a good idea. … The chimney effect causes heat to rise into the attic, and this warm air can hold more moisture than cold air.

Where should attic fan be mounted?

Simply cut an opening in the roof, typically near the peak, and install the fan over the opening. Then shingle above and around the flashing just as you would for a standard roof vent or plumbing stack. In our case, we chose a gable-wall fan that was slightly easier to install because no shingles had to be disturbed.

How hot does an attic get in summer?

In the summer, attics can reach temperatures of 140 degrees and higher. This type of heat build-up can be dangerous because it can damage your roof and any items you have stored in the attic. Excessive heat can also be dangerous if you have things electrical wiring running through your attic.

How often should attic fan run?

Generally speaking, an attic fan should run as long as it takes to replace all the attic air with outside air. Usually, this takes roughly 15 minutes. However, you can calculate a much more accurate time by dividing the strength of your fan by the volume of your attic space.

Which thermostat wire is for the fan?

The red or yellow wire operates the air conditioning. The green wire is the fan wire and allows for independent fan control.

Article first time published on

Does thermostat control fan?

The fan setting on your thermostat controls your HVAC’s system blower. … Once the thermostat reaches the desired temperature, the entire system shuts off until the next cycle. ON means that the fan is constantly on and blowing air when your HVAC system is not heating or cooling air.

Where do thermostat wires go?

Thermostat Wiring Tips If your thermostat controls your heat, you will have a white wire. The Y wire is yellow and connects to your air conditioning compressor. The G wire is green and connects to the fan. Rc and Rh: The red wire(s) are the power source for your thermostat.

When should I run my attic fan in the summer?

During the summer the fan should operate anytime the attic temperature is above the comfort level desired for the indoor living quarters. For example, if the air conditioning thermostat is set to 74 degrees, the attic fan might be set to 75 degrees.

What happens if your attic gets too hot?

An overheated attic can bake asphalt shingles on the roof and cause them to deteriorate. And it can cause your air conditioner to work harder than it needs to and send your energy bills soaring with the temperature.

How do attic fans cool a house?

Use high speed to ‘kick-start’ the cooling, and use low to run quietly through the night. Make sure at least one window is open. Opening two or more windows halfway or wider is recommended to allow the fan to do its job. For general cooling, open windows far away from the fan to provide airflow to the whole house.

Would putting a box fan in an attic?

A box fan sucks air from its back and propels it forward. This makes it well suited to substitute for an attic fan, and you can install it yourself. … No extensive remodeling of the attic must be done, since you will be able to use an existing attic vent.

Can you install a attic fan yourself?

Do-It-Yourself Attic Fan Installation Instructions. To save time, use an existing roof or gable vent to install your new attic fan. This way you don’t have to cut a brand new hole, but simply make the hole for the vent larger so it can accommodate the fan.

Can you put a regular fan in the attic?

Attic fans do really work. They will help to circulate air in your attic and ventilate the space so that it stays closer to the outside temperature. Attics can reach extremely high temperatures in hot, summer months and gather an excessive amount of moisture in the winter. Attic fans will help fight these problems.

Why is my attic fan not turning on?

An attic fan that won’t turn on is usually an electrical problem, but it can also be an issue with the fan motor or the thermostat. First, check the circuit breaker that controls the attic fan. … If the circuit breaker or fuse are working properly, check the thermostat next by manually turning the fan on and off.

How do I bypass the thermostat on my attic fan?

Make one of your wires from the 12-2 (either red or black) a direct power to your thermostat. Make the other wire from your 12-2 run off your switch to your fan and splice it in with the wire going from the thermostat to the fan motor; in other words that switch will go straight to the fan motor.

How does an attic fan turn on?

An attic fan is normally automatic. An adjustable thermostat, which is included, turns the fan on and off according to the temperature. If you have a humidistat installed, it turns the fan on and off as well according to the humidity.

Do attic fans save money?

One of the best ways to save money on cooling your house is to install a whole house fan along with an attic fan. These fans keep you from needing to run an A/C unit at all hours of the day, which will save a lot of money on your electric bill.

Does an attic fan reduce humidity?

Yes, attic fans will help with humidity. During the winter, moist air produced by daily activities rises to the attic and gets stuck there. During the summer, the attic can get severely hot and become extremely moist. An attic fan will reduce the workload on your air conditioner as well as help dissipate the humidity.

What should my attic fan be set at in winter?

Your attic fan runs during winter regardless of the temperature to bring in dry outside air to replace damp attic air and prevent mold from starting in your attic. Your Jet Fan Attic Fan Humidistat should be set to 70 -75% relative humidity.

How long should attic fans last?

Typically, attic fans have a lifespan of up to 15 years as long as they are properly maintained. This usually involves having the attic fan professionally serviced by an HVAC technician who will clean the fan shutters, lubricate the oil ports, and wash the fan blades as well as inspect the unit for any repairs needed.

Should I cover my attic fan in the summer?

Covering the attic fan vent saves energy and helps to prevent ice dams. Keeping attic vents open or closed in summer may be a personal preference, but you’ll almost certainly want yours closed in the winter.

How do I keep attic heat down in the summer?

1. Seal spaces around plumbing, recessed lights and vents. Your attic can get as hot as 150 degrees in the summer. …
2. Install adequate insulation. Start by examining the insulation that is already in your attic. …
3. Install gable vents. …
4. Get an attic fan, and have it serviced regularly.

Does cooling the attic help?

How Insulation Cools Your Attic. Insulation keeps the sun’s heat from radiating into the lower floors, meaning your home will be noticeably cooler. This means your AC won’t have to work quite as hard to maintain a cool internal temperature.

What happens if you wire a thermostat wrong?

Potential consequences of improper installation could include: Electric shock. Blowing a circuit breaker. Damaging the thermostat unit, the electrical system or even the AC/furnace unit itself.

How many wires does a thermostat need?

The most basic thermostat has 2 wires; usually a red and a white wire. Two wire thermostat wiring is used for furnaces only and usually doesn’t need a “C” or “Common” wire. That’s why we only need two wires: Red wire for power (24h).

What color is fan wire on thermostat?

This is the most typical thermostat wiring style, and it applies to systems that regulate both heat and air conditioning. The wires are typically arranged as follows: red for 24-volt hot, white for heat, yellow for cooling, green for the fan, and blue for common (although the common wire may be a different color).
