How do you install a dishwasher drain hose?

Drain Connection Using High Loop to Garbage Disposal

1. Prepare the Drain Hose. Pull as much of the drain hose as possible from behind the dishwasher.

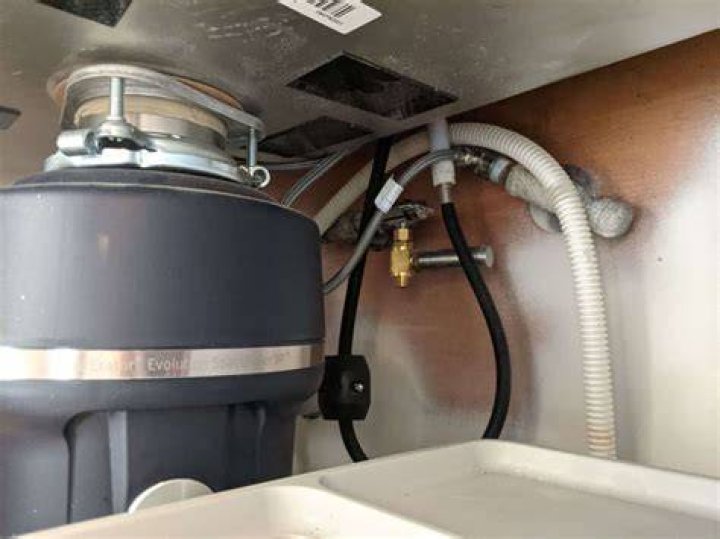

2. Loop the Drain Hose. Pull the dishwasher drain hose up and strap it in place as high up as possible under the sink.
3. Connect the Hose.

Are dishwasher drain hoses Universal?

Most residential dishwashers have the same hook up for the dishwasher drain and the water supply. The drain hose is designed for a universal fit and connects your washing machine drain outlet directly to the drain.

How do I connect two dishwasher drain hoses together?

How to Connect Two Washing Machine Hoses Together

1. Twist the water valve knob on the laundry room wall clockwise to shut off the flow of water to the washing machine.
2. Unscrew the brass ring on the hose end from the wall pipe, using the pliers.
3. Insert one end of the coupler into the end of the hose and tighten.

How long can a drain hose be on a dishwasher?

10 feet
The dishwasher must be installed so that drain hose is no more than 10 feet in length for proper drainage. The dishwasher must be fully enclosed on the top, sides and back, and must not support any part of the enclosure. Follow local codes and ordinances. Do not connect Do not exceed 10 feet distance to drain.

Why does dishwasher drain hose need to be elevated?

“A high loop is required on the dishwasher drain in the installation instructions for all of your dishwashers. GE: “If an air gap is not required, the drain hose must have the high loop from the floor to prevent backflow of water into the dishwasher or water siphoning out during operation.”

Are all dishwasher drain hoses the same size?

Most dishwasher drain hoses are 1/2 inch in size. To allow for different types of connections at the end of the hose, dishwasher drain hoses are fitted with a special rubber boot. This allows them to connect to 1/2-inch, 3/4-inch and 1-inch connections.

How to connect a dishwasher drain hose to a sink?

When connecting a dishwasher drain with an air gap, but where there is no garbage disposal, the drain hose is indirectly tied to the sink drain through the air gap Connect Hose to Air Gap First, connect the dishwasher drain hose onto the small side of the air gap, mounted on the countertop or sink deck.

Can a dishwasher drain be connected without a garbage disposal?

of 05. Air Gap to the Drain (No Garbage Disposal) When connecting a dishwasher drain with an air gap without a garbage disposal, the dishwasher air gap connection is indirectly tied to the sink drain. First, the dishwasher drain hose is connected onto the small side of the air gap, using a hose clamp.

Do you need a drain fitting for a new dishwasher?

If you are removing a dishwasher and replacing it with a new one, it is usually easiest to simply copy the same drain hookups that were used on the old dishwasher. If you are adding a dishwasher for the first time, then you will need to install a special drain fitting to give the dishwasher a place to drain.

What kind of tailpiece for dishwasher drain hose?

Y-branch tailpieces can be purchased that match the size of your dishwasher drain hose.

Where is the drain plug on a dishwasher?

Usually located near the top of the unit is a drainage port where the dishwasher’s drainage tube gets attached. If this tube is attached already, disconnect it using the appropriate screwdriver for the job. Inside the garbage disposal, behind this tube mount, is where the knockout plug lives.

What is the standard drain size for dishwasher?

The standard dishwasher drain hose size is 5/8″ (I.D.) inside diameter on both ends. The drain, electric, and water connections are all located on the bottom of the dishwasher. It is Recommended by the manufactures that you install the dishwasher water supply line to the hot water supply.

How do you drain a dishwasher?

Remove the water with containers and towels. Moving a dishwasher full of water can be messy. Protect the floor under, and in front of, the dishwasher with old towels. Use cups or other containers to scoop out the water and transfer it to the sink drain. Use a couple of towels to soak up the last portion of the water.

How does a dishwasher drain hose work?

Dishwashers drain by pumping out water through a drain hose. With portable dishwashers, the end of the hose fits inside one of the sink baskets and is removed when the washer is not it use. The hose for a built-in dishwasher is inside the sink cabinet and interfaces with the sink drain.
