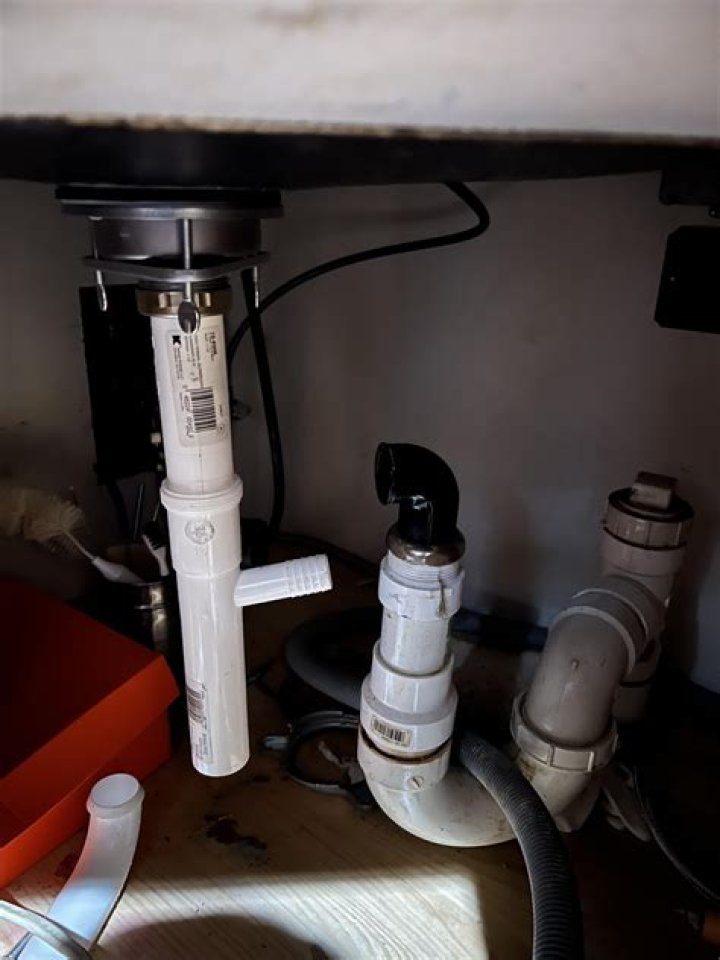

How do you extend a PVC drain pipe?

Sand the pipe so that the edges are smooth without burrs. Next, apply PVC primer to the outside of both the old and new pipe, as well as the inside of your PVC coupling. Brush PVC cement onto all three areas, and attach the pipes, holding them firmly for five seconds each to permit setting.

What does stub out mean in plumbing?

The plumbing stub-outs are the end result of the rough-in phase of plumbing a residential or commercial building. They are usually installed while the walls are still uncovered; and after the drywall work and painting is complete, a plumber comes back and hooks them up to the plumbing fixtures.

When installing water supply lines How many inches should the water lines be installed off the floor?

The supply line should be off-set from the centerline by 5 inches. Sink drain lines are typically between 18 and 20 inches above the finished floor. Water supply lines are usually just a couple of inches higher, between 20 and 22 inches from the floor, and installed one to each side of the drain line.

Can P-trap be below drain line?

You attach the p-trap directly to the drainage and manuever the p-traps exits into you existing drain. It is not ideal to have the p-trap below the the exit drain because water gravity has to force the water out instead of it flowing downwards naturally.

How do you size a drain line?

Four Steps to Sizing Sanitary Sewers & Vents

Add up the total number of drainage fixture units (dfu) for each sanitary branch.
Determine the sanitary branch sizes using the dfu values.
Calculate the size of the main building drain using the total of all dfu values.
Size the vents using an IPC table and the dfu values.

How big of a drain pipe do I need for a retaining wall?

Some corrugated pipes have holes on only one side, and you want to avoid this. The pipe will run the full length of your wall (L) and should be 3-in or 4-in in diameter. In all cases, the drain pipe needs to have positive drainage of at least 2%, meaning it slopes toward an outlet location.

What’s the slope of a plumb out drain?

The drain, which is usually 2-inch plastic pipe, maintains a minimum slope of 1/4 inch per foot from the stub-out to the point where it ties into a main waste pipe. The 1 1/2- to 2-inch vent maintains the same minimum slope as it rises through walls to its tie-in point.

How big is the tilt and drain downspout extender?

Frost King GWS3W Tilt N’ Drain Downspout Extender, 3′. Long, Extends to 6′, White, Pack of 3 . Only 8 left in stock – order soon.

What are the standards for sanitary drainage piping?

Pipe fittings shall be approved for installation with the piping material installed and shall comply with the applicable standards listed in Table 702.4. Where the waste water temperature will be greater than 140°F (60°C), the sanitary drainage piping material shall be rated for the highest temperature of the waste water.

What’s the best way to install a drain extension?

In many cases, you can do it with a single 45-degree elbow. Another easy solution is to angle the trap perpendicular to the drain opening and route the extension with a single 90-degree elbow. Cut the pipes you need for the extension with a hacksaw. Assemble them with the appropriate fittings and hand-tighten the compression nut on each fitting.

Can A P trap drain pipe be offset?

If your P-trap pipes fit properly, hand-tightening makes them leak-proof. Whether it’s because you need to move your sink during a remodel or because your new sink just doesn’t quite fit, the sink drain may end up being offset from the drainpipe in the wall.

What should I do if my drain pipe is too long?

If it’s too long, cut it with a hacksaw. If it’s too short, add a tailpiece extension, which is a short length of PVC pipe. Cut the extension to the proper length. Slide it onto the tailpiece and tighten the compression nut by hand.
