How do you choose a soldering tip size?

Ensure the tip is sixty percent the width of the soldering pad, so that you minimize thermal stress to the component while speeding up the process. Chisel tips are thicker at the tip which means that they store more heat than their pointy counterparts. The size of your chisel tip will depend on the application.

Does it matter what kind of solder I use?

Summary. The main types of solder are lead and lead-free. You can use both for electronics, but it can be easier to work with lead-based solder. Make sure to stay away from acid core solder as this is intended for plumbing, NOT electronics.

How do you choose solder for electronics?

Rosin and acid core. An acid core is mostly used for soldering in plumbing purposes and the Rosin core is for electronics. As you are looking for a solder for electronics, go with a rosin core. Diameter: This refers to how thick the Solder’s wire is and thinner the diameter, better for finite electronics jobs.

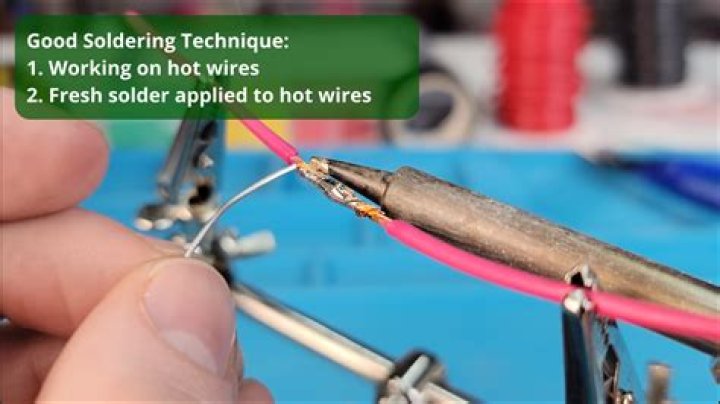

What are the techniques of a good solder?

Soldering

• Solder needs a clean surface on which to adhere. Buff the copper foil of a PC board with steel wool before soldering. Remove any oil, paint, wax, etc.
• To solder, heat the connection with the tip of the soldering iron for a few seconds, then apply the solder. Heat the connection, not the solder.

  What temperature should I solder wire?

  600°- 650°F (316°- 343°C) is a good place to start for lead-based solder and 650°- 700°F (343°- 371°C) for lead-free solder. You want the tip hot enough to melt the solder efficiency, but excess heat can damage components as the heat travels along the leads, and it will reduce the lifespan of the soldering tip.

  How to choose the best selective soldering system?

  Selecting A Selective Soldering System 1 Programming is typically more complicated and time consuming; however, once programmed, repeatability is excellent… 2 Initial cost of a micro-jet system is higher than spray fluxing, but again, with its added efficiency, pinpoint… More …

  What should the tip temperature be for leaded solder?

  The typical tip temperature for leaded soldering is 320-370 ºC (600-700 ºF). For lead-free the temperature needs to be increased to 370-425 ºC (700-800 ºF). In addition to the higher tip temperature, the dwell time needs to be increased. A solder joint can be completed with lead-based solder in less than a second.

  Can a solder joint be completed with lead-based solder?

  In addition to the higher tip temperature, the dwell time needs to be increased. A solder joint can be completed with lead-based solder in less than a second. Using lead-free solder, this time needs to be extended to avoid cold solder joints. Health hazard: Leaded solder contains lead (DUH!).

  Which is better a clean or tinned soldering tip?

  Soldering iron tips covered with burnt flux and oxidation will not wet (accept solder) and will conduct heat poorly. A clean and tinned soldering tip conducts heat through the desoldering braid better and starts the wicking action faster. Before starting, tin the soldering tip by adding fresh wire solder to it.

  How to choose types of solder to use for electronic circuits?

  First of all, solder comes in many forms: pellets, bars, paste and wire. As a hobbyist, you will only need to get acquainted with the solder wire. And maybe the solder paste if you want to do SMD soldering. There are two main types of solder: The main practical difference between the two is the melting temperature.

  What are the different types of solder blends?

  Often it is the specific combination of elements in a solder blend that can be used to get a certain result. For example, solder normally melts within a certain range, but a eutectic blend such as Sn63Pb37 melts at exactly 183°C.

  What kind of solder do you use for SMD?

  First of all, solder comes in many forms: pellets, bars, paste and wire. As a hobbyist, you will only need to get acquainted with the solder wire. And maybe the solder paste if you want to do SMD soldering. There are two main types of solder: Lead-based solder. Lead-free solder.

  Which is an example of alloy solder not using lead?

  Other examples of alloy solders not using lead include: Lead-based solders use a numbering system that specifies the percentage of lead as well as the mixed metal in the alloy, called the lead alloy ratio (where the first number is the % of tin, the second the % of lead). Common alloys that are tin solders include:
