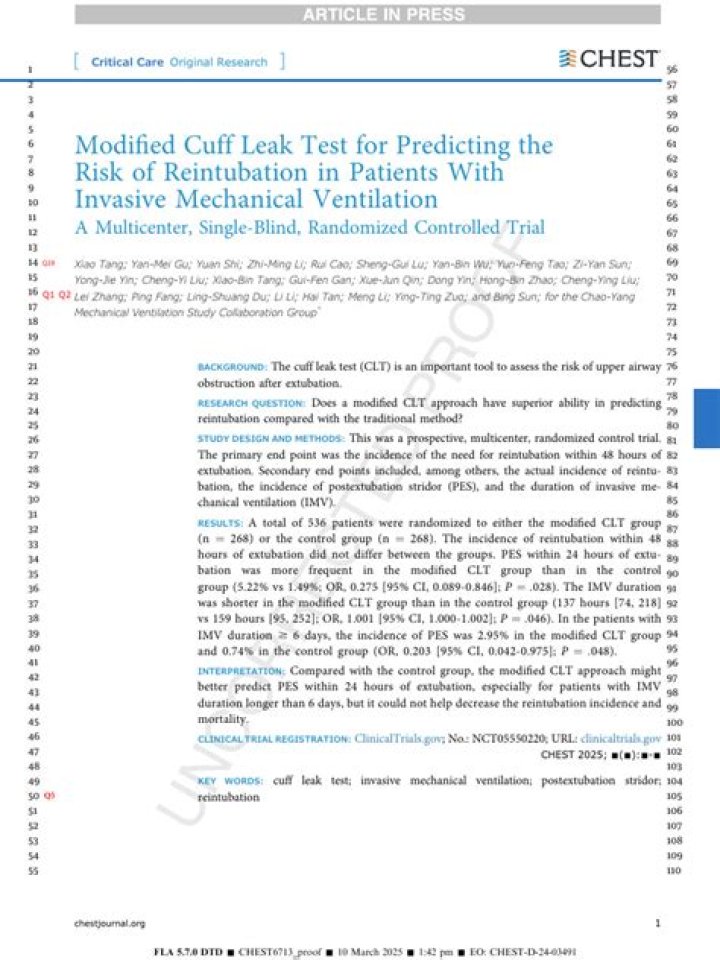

The cuff-leak test has been proposed as a simple method to predict the occurrence of post-extubation stridor. The test is performed by cuff deflation and measuring the expired tidal volume a few breaths later (VT). The leak is calculated as the difference between VT with and without a deflated cuff.

How do you know if your ETT cuff is leaking?

1. Suction endotracheal and oral secretions and set the ventilator in the assist control mode with the patient receiving volume-cycled ventilation.
2. With the cuff inflated, record displayed inspiratory and expiratory tidal volumes to see whether these are similar.
3. Deflate the cuff.

What to do if there is a cuff leak?

If a hole in the pilot balloon is suspected, cutting the pilot balloon from the cuff tubing and inserting a 22-gauge IV catheter into the tubing with a stopcock valve attached to the catheter’s end can stop the leak.

What does a positive cuff leak test indicate?

The authors concluded that a positive cuff-leak test (i.e., absence of an air-leak) indicates an elevated risk of upper airway obstruction and re-intubation.

How do you check endotracheal tube cuff pressure?

In general, in anesthesia practice ETT cuff pressure is assessed by palpation of cuff or cession of audible leak around the cuff is the end point for inflation.

How much air do you put in ETT cuff?

While securing the ET tube with one hand, inflate the cuff with 5-10 cc’s of air. The volume of air can be adjusted later when the airway is secured.

Why do you need a cuff leak for extubation?

Since the endotracheal tube precludes direct visualization of the upper airway, the cuff leak test was proposed to predict the presence of laryngeal edema and post-extubation airway obstruction [10, 11].

What is a minimal leak test?

The minimal leak technique is appropriate if the patient isn’t receiving high levels of peak inspiratory pressures or PEEP. Add air to the cuff while auscultating the airway at the laryngeal level. When you can no longer hear a leak during inspiration, slowly withdraw air until you hear a minimal leak.

How do you find a leak in an ET tube?

Inspect the pilot balloon; rule out leaking pilot balloon valve. Evaluate need for chest x-ray to confirm placement. Evaluate need for an airway specialist (someone who can intubate) to check tube placement with laryngoscope. Suction oral airway, deflate cuff, measure amount of air needed to seal.

What is an endotracheal tube cuff?

The cuff of the endotracheal tube (ETT) is designed to provide a seal within the airway, allowing airflow through the ETT but preventing passage of air or fluids around the ETT. Deliberate or inadvertent movement of the ETT may affect cuff pressure or shift folds in the cuff, mobilizing pooled secretions.

Article first time published on

How often should cuff pressure be monitored?

A cuff pressure between 20 and 30 cm H2O is recommended to provide an adequate seal and reduce the risk of complications. Survey results5–7 indicate that cuff pressure is usually monitored and adjusted every 8 to 12 hours.

What is normal ET tube cuff pressure?

Based on the majority of human literature, ETT cuff pressure between 20 and 30 cmH2O is considered to be the standard (safe) ETT cuff pressure range (13–15).

How often should cuff pressure be measured?

The authors recommended to measure intracuff pressure every 8–24 h because the air inside the cuff may escape from the endotracheal cuff surface or through the pilot balloon valve [56, 57].

How do you know when to Extubate a patient?

Extubation is usually decided after a weaning readiness test involving spontaneous breathing on a T-piece or low levels of ventilatory assist. Extubation failure occurs in 10 to 20% of patients and is associated with extremely poor outcomes, including high mortality rates of 25 to 50%.

How do you test an endotracheal tube prior to insertion?

Check tube position by auscultation of the chest (and abdomen) to ensure equal aeration of both lungs and observation of chest movement with positive pressure inflation. Secure ETT with two pieces of 1/4 inch adhesive tape placed on lip and securely around ETT. Verify the position of the ETT by chest x-ray.

When placing an endotracheal tube It's important to inflate the tube cuff because?

Some nurses blow through endotracheal tubes, especially the smaller ones, to be 100 percent sure there is no obstruction. Inflate low-pressure, high-volume cuffs during cleaning to help remove secretions between their folds.

What does leak mean on ventilator?

During mechanical ventilation, system leak is a major cause of patient-ventilator asynchrony. Leaks may be due to the endotracheal tube cuff, ventilator circuit, or chest drain during invasive ventilation. The incidence of endotracheal tube cuff leaks has been reported at ranges from 11% to 24%.

What is a cuff manometer?

From what I understand, a cuff manometer is used to measure the pressure of the cuff on an endotracheal tube. This can be important when ascending in an unpressurized cabin of a non-standard air evacuation platform.

How do you inflate an endotracheal tube cuff?

To inflate the cuff, inject air into adaptor at the end of the pilot balloon. Inject the least amount of air needed to adequately create a seal around the tube. The amount of air necessary will vary depending on the diameter of the tracheostomy tube and the patient’s trachea.

What is minimal occlusive volume?

Minimal occlusive volume (MOV) is one of the four methods used to monitor cuff inflation. This method involves the addition of sufficient air to abolish an air leak on inspiration determined by auscultation over the trachea (Pierce, 2007).

What is Murphy's eye?

The “Murphy eye” is the eponymous name for a hole on the side of most endotracheal tubes (ETTs) that functions as a vent, and prevents the complete obstruction of the patient’s airway, should the primary distal opening of an ETT become occluded.

Should you cut an ET tube?

The use of cut endotracheal tubes should be avoided in initial resuscitation of the burned patient.

How long does ET tube last?

The 3-week time limit of translaryngeal intubation in critically ill patients was based on the belief that the risk ratio (laryngeal risk vs surgical tracheostomy risk) was excessive if the ETT was left much longer than a month.

Why is it important to check the tracheal cuff pressure?

The importance of tracheal tube cuff pressures is highlighted by the spectrum of complications that can occur: high cuff pressures can result in complications ranging from sore throat and hoarseness to tracheal stenosis, necrosis, and even rupture, while cuff pressures that are too low place the patient at risk for …

Which is a potential complication of a low pressure in the endotracheal tube cuff?

Which of the following is a potential complication of a low pressure in the ET cuff? Low pressure in the cuff can increase the risk for aspiration pneumonia. High cuff pressure can cause tracheal bleeding, ischemia, and pressure necrosis.

How often should you suction an endotracheal tube?

Frequency of Suctioning It has been suggested by Pedersen et al3 that ETS should be performed at least every 8 hours to slow the formation of the secretion biofilm within the lumen of the endotracheal tube (ETT).

How long can a person be on a ventilator in an ICU?

Some people may need to be on a ventilator for a few hours, while others may require one, two, or three weeks. If a person needs to be on a ventilator for a longer period of time, a tracheostomy may be required.

How long does it take to wean off of a ventilator?

Weaning Success Average time to ventilator liberation varies with the severity and type of illness or injury, but typically ranges from 16 to 37 days after intubation for respiratory failure. If the patient fails to wean from ventilator dependence within 60 days, they will probably not do so later.

What is extubation failure?

Extubation failure is defined as inability to sustain spontaneous breathing after removal of the artificial airway; an endotracheal tube or tracheostomy tube; and need for reintubation within a specified time period: either within 24-72 h[1,2] or up to 7 days.
