1) Focus very carefully with the 40x objective over the stained specimen on the slide.3) Apply a small drop of oil directly on the slide over the specimen.4) Rotate 100x objective into the immersion oil .

What are the steps for applying immersion oil?

1. 1) Focus very carefully with the 40x objective over the stained specimen on the slide.
2. 3) Apply a small drop of oil directly on the slide over the specimen.
3. 4) Rotate 100x objective into the immersion oil .

Is it immersion oil directly applied on to the specimen?

When using immersion oil, you need to use a coverslip over your specimen. If you try to put the immersion oil directly on a specimen it will contaminate and probably move your specimen. After you have placed your specimen on the slide place your coverslip over the slide using tweezers.

Where do you apply the immersion oil?

Place “one drop” of immersion oil directly onto your coverslip. Slowly rotate your oil objective lens into place and bring the nose of your objective in contact with the drop of oil. Use only the fine focus control, very slowly bring your specimen back into focus.

How do you use immersion oil cedar wood oil?

Whilst looking from the side of the microscope, carefully place one drop of immersion oil directly onto the cover glass. Swing the high power objective into place and (continuing to look at the stage from the side), use the coarse, then the fine focus to bring the objective front lens into contact with the oil.

Do you need a coverslip for oil immersion?

Oil-immersion objectives should be used with coverslip-thick glass (or optically equivalent plastic) to achieve their best imaging performance. … This can be easily done by turning the glass slide over and viewing the cells through the 1-mm thick slide, with the coverslip facing away from the objective.

What is the purpose of placing immersion oil on the slide?

What is the purpose of placing immersion oil on the slide? Helps redirect the light so that enough is bouncing off the cell and into your eye so that you can actually see the cell. This is because of the way light scatters and the oil focuses the light.

What is the highest magnification you should focus before use oil immersion technique?

BEFORE PERFORMING OIL IMMERSION MICROSCOPY, YOU MUST FIRST GO THROUGH THE PROCEDURES NECESSARY TO OBTAIN GOOD FOCUS WITH THE 40X OBJECTIVE. 16. THAT ACCOMPLISHED, MOVE THE OBJECTIVE TURRET SUCH THAT THE SPACE BETWEEN THE 40X AND 100X OBJECTIVES IS OVER THE VIEWING AREA.

What is the purpose of the immersion oil?

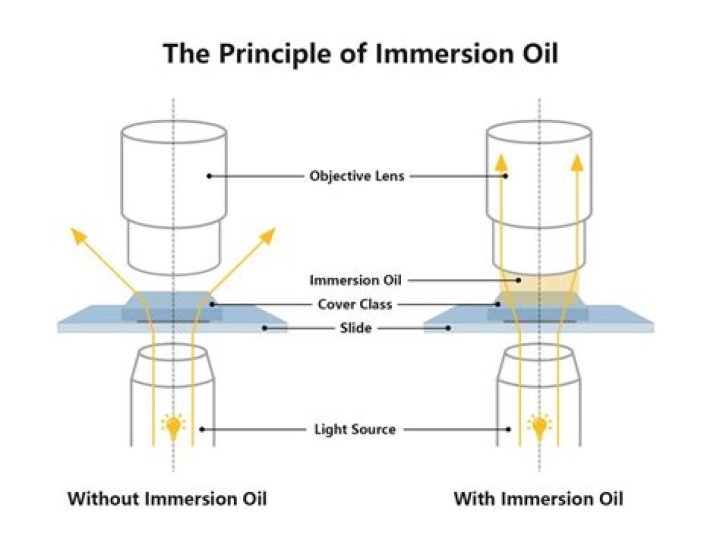

Immersion oil increases the resolving power of the microscope by replacing the air gap between the immersion objective lens and cover glass with a high refractive index medium and reducing light refraction.

What are the precaution taken when handling immersion oil?

Immersion oil should be cleaned from lens and slide surfaces when observations are complete. Oil left on lens surfaces will eventually dry and be very difficult to remove. 1. Carefully wipe oil from all glass surfaces with a folded piece of clean lens paper.

Article first time published on

How long does immersion oil last?

As long as the immersion oil is still clear, it’s still good to use. Once it turns yellow and cloudy due to oxidation, then replace with new one. We haven’t replace ours for years. I looked at a few different companies data/specification sheets and the general consensus was 2 years.

Why immersion oil is used in 100x?

The 100x lens is immersed in a drop of oil placed on the slide in order to eliminate any air gaps and lossof light due to refraction (bending of the light) as the light passes from glass (slide) → air →​​​​​​​ glass (objective lens).

What would occur if water was used in place of immersion oil?

What would occur if water were accidentally used in place of immersion oil? It will become blurry or cause distortion because water has a different refractive index than oil.

What happens if you don't use immersion oil?

Without oil, light waves reflect off the slide specimen through the glass cover slip, through the air, and into the microscope lens (see the colored figure to the right). Unless a wave comes out at a 90-degree angle, it bends when it hits a new substance, the amount of bend depending on the angle.

How many drops of oil should you use?

Between 3 to 5 drops of an essential oil are recommended to use in a diffuser, if the diffuser’s size is 100 ml. So 3 drops is a standard amount that can be used as a trial, if you are using an aroma diffuser for the first time.

How much does oil immersion magnify?

The oil immersion objective lens provides the most powerful magnification, with a whopping magnification total of 1000x when combined with a 10x eyepiece.

Why do we use oil on a slide to be examined with the oil immersion objective what oils can be used with oil immersion objectives?

It is best to use an oil-immersed objective at high magnification as the oil compensates for short focal lengths associated with larger magnifications. … Oil is an ideal conduit in the preparation of slides because the refractive index is the same or similar as glass.

What is the purpose of placing immersion oil on the slide quizlet?

Oil immersion should be used between the slide and 100x objective lens, this is a special oil that has the same refractive index as glass. When placed between the specimen and objective lens, the oil forms a continuous lens system that limits the loss of light due to refraction.

Why should the oil immersion objective be cleaned immediately after its use?

Proper Use and Removal of Immersion Oil Even when employed properly, immersion oil must be removed immediately after use to prevent its accumulation in unwanted areas of the microscope, as well as to avoid optical degradation from dried oil residue on the objective.

When switching to the 100x what should you use?

When switching to the 100x lens, what should you use? 100x lenses should be used with a few drops of immersion oil to enhance the image.

What are the three typical powers for eyepieces?

Each one has a different magnification including scanning lens (10x), mid-power lens (40x), and high-power lens (100x).

What holds the slide in place?

Stage clips hold the slides in place.

Why is there a need to place an immersion oil on the slide before viewing it in OIO lens?

When to use an oil immersion lens Oil immersion is essential for viewing individual bacteria or details of the striations of skeletal muscle. … Oil distorts images seen with dry lenses, so once you place oil on a slide it must be cleaned off thoroughly before using the high dry lens again.

Why are microscope lenses not touched?

Never touch the lenses with your fingers. Your body produces an oil that smudges the glass. This oil can even etch the glass if left on too long. Use only LENS PAPER to clean the glass.

Does oil immersion increase magnification?

By placing immersion oil between the glass slide and the oil immersion lens (100X), the light rays at the highest magnification can be retained. … Using oil has the same effect as increasing the objective diameter therefore improving the resolving power of the lens.

Is immersion oil toxic?

Symptoms/effects after skin contact : Causes skin irritation. Symptoms/effects after eye contact : Causes serious eye irritation. Symptoms/effects after ingestion : Harmful if swallowed.

How do you clean an objective lens after oil immersion?

1. Clean off the oil immediately after using it. …
2. Use the eyepiece to inspect any dust on the objective. …
3. Remove any dust or dirt with a blower. …
4. Fold a piece of lens paper to create a point. …
5. Soak the lens paper in a suitable solvent.

What did you need to do before viewing the slide at 100x?

-The object should first be focused under low power, then high power prior to using the 100x objective lens. -The intensity of light may need to be adjusted to optimize illumination. -A drop of immersion oil must be placed between the specimen on the slide and the 100x lens.

Why cedar wood oil is used in oil immersion microscope?

Cedarwood oil is used as it has a tendency to harden and can cause lens damage if not removed after use.

What objective can only be used with the immersion oil?

Before using immersion oil, make sure that your 100x objective lens is made for use with immersion oil. Begin by focusing your sample using the 40x objective lens.

What are the advantages of the low power objective over the oil immersion?

When viewing fungi or algae under the microscope it is better to use a lower power objective than an oil immersion objective because the lower power objectives cover a wider field of view and give clearer and crisper images.
