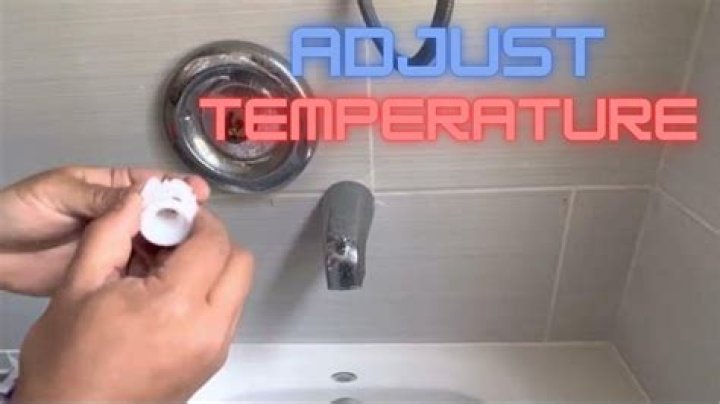

How do you adjust a Moen shower with hot water?

The water temperature from my Moen shower system is too hot. To adjust the Temperature Limit Stop, with the handle removed, loosen the adjustment hex screw with a 7/64″ hex wrench and slide the screw downward. Tighten the hex screw. Test the hot water temperature (not to exceed 120°F).

Why does my Moen shower not turn on?

Verify the handle is being pulled out to turn the water on. If the handle is only being rotated, the water will not turn on. Both hot and cold water MUST be supplied to the valve to get ANY water from the unit. If the valve has stops, both will need to be opened. If your Moentrol valve has these, they will be located on the inlets of the valve.

Why does water come out of the shower head when the tub is in?

The Moen valve is just on or off, it doesn’t tell the water which way to go, that’s done with the diverter. If that doesn’t do it, the other option would be to put a shut-off valve at the shower head spout. Same net effect, no need to open the wall. I don’t think its the diverted, I bought a new spout and still have the problem.

How do you turn on the hot water in a shower?

Pull the handle off the shower valve’s flow valve. The handle slips over the end of the flow valve’s stem. Slide the trim ring off the flow valve, exposing the flow valve’s stem and the mixing valve’s knob. Turn the flow valve’s stem counterclockwise, turning on the water flow through the shower head.

How do you raise the temperature in a Moen shower?

Turn the mixing valve’s knob clockwise a quarter-turn to raise the water’s high-limit temperature. Slide the valve knob onto the flow valve’s stem. Slip the Moen flow valve’s trim ring onto the flow valve. Slide the shower handle onto the end of the flow valve stem and tighten the handle’s mounting screw with the Phillips screwdriver.

Verify the handle is being pulled out to turn the water on. If the handle is only being rotated, the water will not turn on. Both hot and cold water MUST be supplied to the valve to get ANY water from the unit. If the valve has stops, both will need to be opened. If your Moentrol valve has these, they will be located on the inlets of the valve.

Why is the water in my shower not as hot as my Tub?

Note: If comparing the temperature of the water to an adjacent lavatory faucet, you may notice the temperature may not be as hot (or as cold) in the tub/shower valve. Also, depending on your climate, the incoming water (ground water) temperature may fluctuate during the year.

Where does the water go when you turn on the shower?

When the diverter is pulled, it pulls a rubber (or sometimes plastic piece) into the hole where the water pours through, plugging spigot where the water normally flows. With this escape-route sealed off, the water has only one place to go: up and into the shower head.

What to do if your shower and tub are running at the same time?

If you find that you’re having problems with your showerhead and tub running at the same time or you can’t divert water to the showerhead, you may need to have your diverter replaced.
