How do you adjust a Hubbell pressure switch?

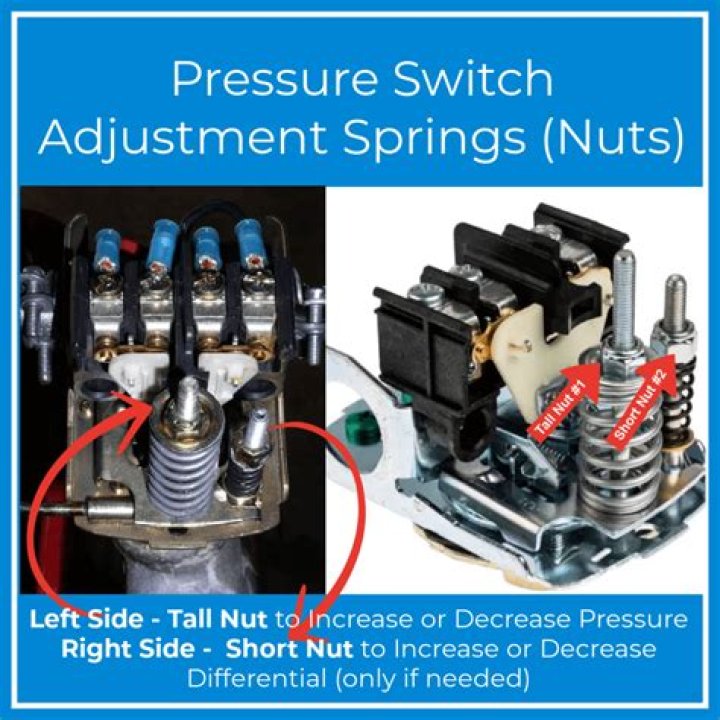

Screw A–Turn clockwise to increase and counter- clockwise to decrease pressure range (both cut-in and cut-out). Screw C–Turn clockwise to increase and counter- clockwise to decrease cut-in pressure. NOTE: Differentials shown on tables above are averages only. hubbell industrial controls, inc.

How do you fix the pressure switch on an air compressor?

Instructions

1. Shut off the electricity and drain the air tank.
2. Remove the tank pressure gauge.
3. Remove the pressure switch tube.
4. Remove the pressure regulator assembly.
5. Remove the pressure switch.
6. Install the new pressure switch.
7. Reinstall the pressure regulator.
8. Reinstall the pressure switch tube.

How do you set cut in and cut out pressure?

Setting the cut-in pressure.

1. Starting from an empty tank. Start the compressor and let it run until it reaches the cut-out pressure.
2. Open a drain to slowly let some air escape.
3. Wait until the compressor starts.
4. Adjust the cut-in pressure with the big set screw.
5. Close the drain valve.

What is a pressure switch used for?

A pressure switch is a device that operates an electrical contact when a preset fluid pressure is reached. The switch makes an electrical contact on either pressure rise or pressure fall from a certain preset pressure level.

Are all air compressor pressure switches the same?

Pressure switch settings, common to many air compressors, are set for a range of 40 to 250 PSI and an adjustable differential of 35 to 60 PSI. This means that the lowest pressure that the switch can be set to close at is 40 PSI, and the highest pressure it can be set to open at is 250 PSI.

Is there a pressure switch for a husky 60 gallon air compressor?

My original switch is a e 107200 Yes, this pressure switch will work with your current Husky 60 gallon air compressor (Model# C601H) that has the E107200 switch. Pressure switches are specific to the max pressure of the unit that they are on. This particular switch is set for a max PSI of 155.

What are the parts of a husky air compressor?

Here you can find full parts list for Husky VT6314 Model and an image with the locations of each part of the air compressor. Check here if you need parts list for Husky VT472200AJ Pump.

How do you remove a husky air conditioner tube?

Please contact Husky Customer Service at 1-888-43-HUSKY (48759) for further assistance with your replacement part needs. To remove the tube, you have to push in on the brass cylinder that surrounds the tube. Pull out on the tube while the brass piece is depressed.

My original switch is a e 107200 Yes, this pressure switch will work with your current Husky 60 gallon air compressor (Model# C601H) that has the E107200 switch. Pressure switches are specific to the max pressure of the unit that they are on. This particular switch is set for a max PSI of 155.

Where can I get a new Husky air compressor?

It can be shipped to the Nogales, AZ store location or shipped to your home. Please contact Husky Customer Service at 1-888-43-HUSKY to receive further assistance with your air compressor. What size socket do you use to remove the old switch and install the new one?

Please contact Husky Customer Service at 1-888-43-HUSKY (48759) for further assistance with your replacement part needs. To remove the tube, you have to push in on the brass cylinder that surrounds the tube. Pull out on the tube while the brass piece is depressed.
