How do old steam radiators work?

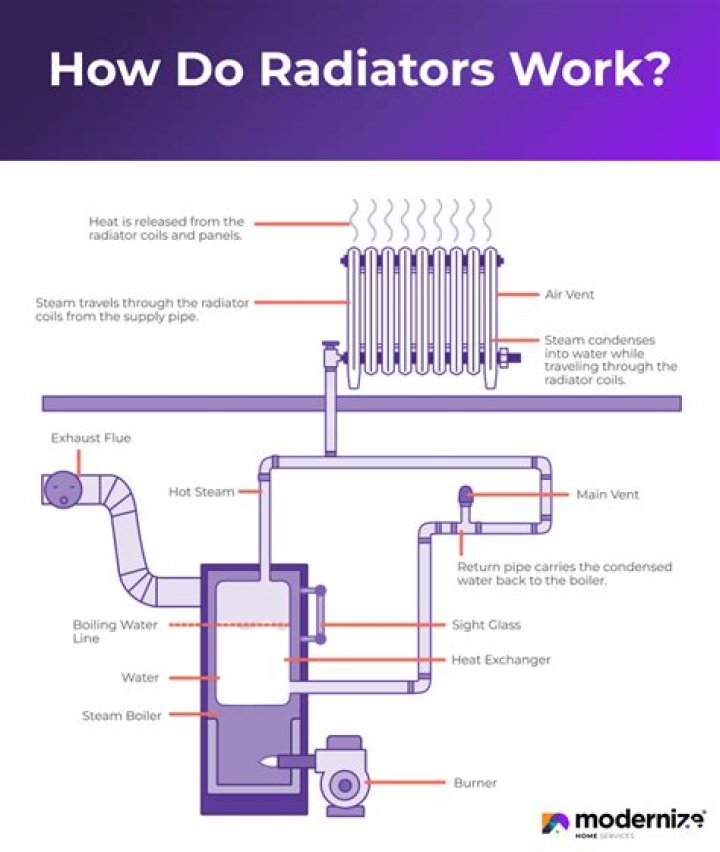

Steam radiators work by boiling water to create steam. That steam then travels up a set of pipes into the radiator, which in turn, heats up the room via radiation and convection. As the steam travels through the unit, it slowly cools down and turns into condensation.

How does a single pipe steam radiator work?

In one-pipe steam installations, steam flows from the boiler to the radiators, where it displaces the cold air by pushing it out through a vent on the radiator. The air vent closes automatically when the radiator is full of steam. This condensate then flows back again through the same single pipe.

Why is my steam radiator not getting hot?

If the radiator doesn’t heat up, it often indicates that the air valve is stuck shut, blocking cold air inside the radiator and preventing steam from entering. Try to clean the valve with vinegar, or simply replace the valve.

How do you control a steam radiator?

However, there is one way to adjust the heat on a steam radiator: installing a thermostatic radiator valve. This adjusts room temperature by using air to reduce or increase the amount of steam that warms your radiator. Radiators come in two types: one-pipe and two-pipe. They have different types of boiler systems.

What to do if radiator is steaming?

If you happen to come across that situation, here’s what you should do:

1. Step 1 – If you see steam, pull over immediately.
2. Step 2 – Turn off the A/C, and turn on the heater.
3. Step 3 – Pull over and shut off the engine.
4. Step 4 – Let the engine cool and then open the hood.
5. Step 5 – Check the coolant levels.

How can you tell the difference between a steam radiator and a hot water radiator?

When the steam enters the bottom of a radiator (as it always will in a one-pipe steam radiator), it flows upward into the sections, displacing the air as it goes. Hot water radiators, on the other hand, have nipples across both the upper and lower portion of the radiator sections.

How does steam travel through a radiator in a boiler?

That steam then travels up a set of pipes into the radiator, which in turn, heats up the room via radiation and convection. As the steam travels through the unit, it slowly cools down and turns into condensation. This condensation then goes through the unit, ending it’s travels back in the boiler, where it is ultimately turned back into steam.

Where does the steam go in a one pipe boiler?

In one-pipe steam installations, steam flows from the boiler to the radiators, where it displaces the cold air by pushing it out through a vent on the radiator. The air vent closes automatically when the radiator is full of steam.

Who was the first person to make a steam radiator?

But residential steam systems didn’t begin to take hold until the late 1840’s when a Connecticut stove maker, Stephen Gold began experimenting with steam and the first ‘radiators’ began to make an impression.

How big does a steam radiator have to be?

Browse our collection of steam radiators here. Read an introduction to two-pipe steam systems here. The inlet, or control, valve must have a large internal bore: minimum of 1″ for radiators of 5000 BTUs or fewer; at least 1-¼” above that. On a one-pipe steam radiator it must be fully open or fully closed.
