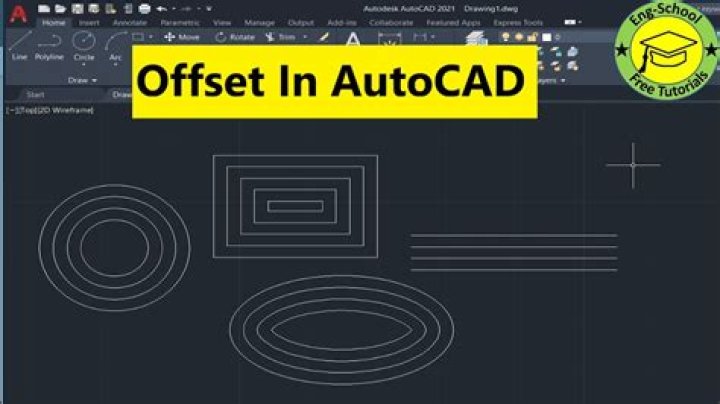

Click Home tab Modify panel Offset. Find.Specify the offset distance. You can either enter a value or use the pointing device to determine a distance with two points.Select the object to offset.Specify a point to indicate whether the object is to be offset inside or outside of the original object.

How do you offset a wall in AutoCAD?

1. Select the wall you want to copy.
2. Click Wall tab Modify panel Offset drop-down Copy.
3. Specify the location of the offset point: …
4. Specify the offset distance.
5. Continue adding walls, each new wall offset from the face or center of the wall you added before it. …
6. Press Enter.

How do you offset both sides in AutoCAD?

If you want to make an offset of multiple linear entities you can use ‘Offset Multiple to Both sides’. After you select the entities you want you can set the distance in the main menu. Besides the distance you can also select a layer on which the offset should be placed.

How do I offset dimensions in AutoCAD?

In the drawing area, double-click the dimension you want to edit. The Power Dimensioning Ribbon Contextual Tab displays. In the Power Dimensioning Edit Geometry dialog box, enter a numerical value in the Text offset from dimension line box. Click OK.

How do you offset a block in AutoCAD?

1. Select the multi-view block.
2. Click Multi-View Block tab Modify panel Edit View Block Offsets . …
3. Select the Location grip. …
4. Offset the multi-view block to the desired location and click once, or enter a value and press Enter. …
5. Right-click and click Exit Edit View Block Offsets.

How do you offset feet in AutoCAD?

Just type in 36 for three feet and it will still work properly. To further simplify the process, you can enter your distance as the number of inches followed by /12. For example, if you need to offset by 3 inches, enter an offset distance of 3/12. AutoCAD will do the math for you and offset your object by 0.25 feet.

In which toolbar of AutoCAD offset command appears?

We can invoke this command. from the modify panel in the Home tab. Or we can type ‘O’ (AutoCAD offset shortcut key) in the command bar and press the Enter key to offset an object.

What is an offset line?

Also called offset line . a line a short distance from and parallel to a main survey line.

How do I use Mline in AutoCAD?

1. At the command prompt, enter MLINE. …
2. At the Command prompt, enter st to select a style.
3. To list available styles, enter the style name or enter ?.
4. To justify the multiline, enter j and select top, zero, or bottom justification.
5. To change the scale of the multiline, enter s and enter a new scale.

What is Dimension line offset?

The offset value given represents the distance from the dimension line to the end of the extension lines.

Article first time published on

How do I offset a circle in AutoCAD?

1. Draw a shape that you would like to offset.
2. Click on the Offset command (bottom right on the Modify panel).
3. Select the Offset distance. You can do this in two ways. …
4. Select the object to offset. Left click on the object and you will get a perfectly parallel copy.

What is hatching in AutoCAD?

The Hatch command in AutoCAD is used to fill patterns inside an enclosed area. The patterns are hatched, gradient, and solid fill. The gradient patterns are defined as a smooth transition between two colors. … The Hatch Pattern Scale signifies the spacing between the lines in a particular pattern.

How do you offset in accounting?

Basics of an Offset In accounting, an entry can be offset by an equal but opposite entry that nullifies the original entry. In banking, the right to offset provides financial institutions with the ability to cease debtor assets in the case of delinquency or the ability to request a garnishment to recoup funds owed.

What is subtract in Autocad?

With SUBTRACT, you can create a 3D solid by subtracting one set of existing 3D solids from another, overlapping set. You can create a 2D region object by subtracting one set of existing region objects from another, overlapping set.

How do you offset a 3D object in Autocad?

Press Ctrl+click a bounded area on a 3D solid object and move the cursor to establish an offset direction. Edge highlighting indicates which areas will be offset. Enter a value or click in the drawing area to set the offset distance.

How do I draw a Offset line in AutoCAD?

1. Click the Offset button on the Home tab’s Modify panel, or enter Offset and press Enter. …
2. Type an offset distance and press Enter. …
3. Select a single object, such as a line, a polyline, or an arc. …
4. Point to one side or the other of the object and then click.

How do you activate isometric axes in AutoCAD?

You can now select isometric plane for your drawing by pressing the F5 key. The three Isoplanes available for selection are Isoplane top, right and left. Press F5 key to activate Isoplane top and then select line command and click anywhere in the drawing area to start your line.

How many workspaces are available in AutoCAD?

How many workspaces are available in AutoCAD? Explanation: There are three workspaces available to switch between in AutoCAD. These are drafting and annotation, 3D basics and 3D modelling.

Where can the ViewCube be found on the screen?

The ViewCube can be found in the upper right hand corner of the screen and you’ll notice as you hover your mouse closer to it, the navigation tools, along with the ViewCube, become brighter or more enabled.

How do you hatch in AutoCAD?

1. Click Home tab > Draw panel > Hatch. …
2. On the Properties panel Hatch Type list, select the type of hatch that you want to use. …
3. On the Pattern panel, select a hatch pattern, such as ANSI31.
4. On the Boundaries panel, click Pick Points. …
5. Click inside the circle, rectangle, and the triangle.

What is Circle command in AutoCAD?

The circle command is used to draw a circle by specifying the center point and radius. … Type Circle or C on the command line and press Enter. Specify the center point of a circle on the workspace or viewport. Specify the radius of the circle.

How do I turn on selection cycling in AutoCAD?

Enable Selection Cycling from the Status Bar Note: You can also use the Ctrl+W shortcut keys to turn selection cycling on and off. When selection cycling is turned on, a badge appears next to the cursor when you hover over stacked objects.

How do I close an AutoCAD Mline?

Click Modify menu Object Multiline. In the Multiline Edit Tools dialog box, select Closed Cross.

How do I edit a Mline in AutoCAD?

1. At the Command prompt, enter MLSTYLE.
2. In the Multiline Styles dialog box, select the style name from the list. …
3. Click Element Properties.
4. In the Modify Multiline Styles dialog box, change the settings as needed.
5. Click OK.

What is the use of offset in surveying?

The lateral measurement taken from an object to the chain line is known as ‘offset’. Offsets are taken to locate objects with reference to the chain line.

What are the different types of offsets?

The offsets are classified according to direction and length, according to direction it is of two types i.e., perpendicular offsets and oblique offsets, according to length i.e., short offsets and long offsets.

How do you take offset in surveying?

1. Set up two control points on site, through the middle of the area to be recorded ensuring a clear line of sight between them.
2. Lay a tape measure between the two points, ensure that the tape is at the correct tension.
3. Ensure each point is securely fixed, as it will be pulled on by the tape measure.

What do you meant by dimensioning and offset in AutoCAD?

The offset command in AutoCAD is used to create parallel lines, concentric circles, and parallel curves. We can offset any object through a point or at a specified distance. We can create as many parallel lines and curves with the help of the offset command.

What are the six kinds of dimension tools in AutoCAD?

The basic types of dimensioning are linear, radial, angular, ordinate, and arc length. Use the DIM command to create dimensions automatically according to the object type that you want to dimension.

What are fillets and rounds?

A fillet or round connects two objects with a tangent arc in 2D, or creates a rounded transition between the adjacent faces of a 3D solid. An inside corner is called a fillet and an outside corner is called a round; you can create both using the FILLET command.

What do you understand by modifying tools in AutoCAD?

Perform editing operations such as erase, move, and trim on the objects in a drawing. The most common of these tools are located on the Modify panel of the Home tab.
