A disconnect switch is often located on the exterior of a residence near the exterior unit of the central air-conditioning system. A disconnect is an added safeguard to quickly disconnect the electricity from an electrical device rather than disconnect it at the main breaker panel.

Where is my indoor AC disconnect switch?

A disconnect switch is often located on the exterior of a residence near the exterior unit of the central air-conditioning system. A disconnect is an added safeguard to quickly disconnect the electricity from an electrical device rather than disconnect it at the main breaker panel.

How do AC disconnects work?

An AC disconnect separates the inverter from the electrical grid. … Installing AC and DC disconnects properly will ensure that your customer’s home is safe while also allowing incoming power to be quickly shut off if necessary.

Is it okay to turn off AC circuit breaker?

Yes, it is ok to shut it off at the breaker until you can have someone qualified look at it. This is the easiest, safest option for you. It will ensure that everything is safely shut off, including the compressor, evaporator, and any other components that your particular A/C unit has.

Can I unplug my AC unit?

Yes. There should be a disconnect in your panel box or at the outside unit. By turning it off over the winter, you will save energy.

When should you turn the AC off?

The only times that it makes sense to turn off your air conditioner completely are when it’s cool enough outside to open your windows and allow the outdoor air to keep your home’s temperature at a moderate level.

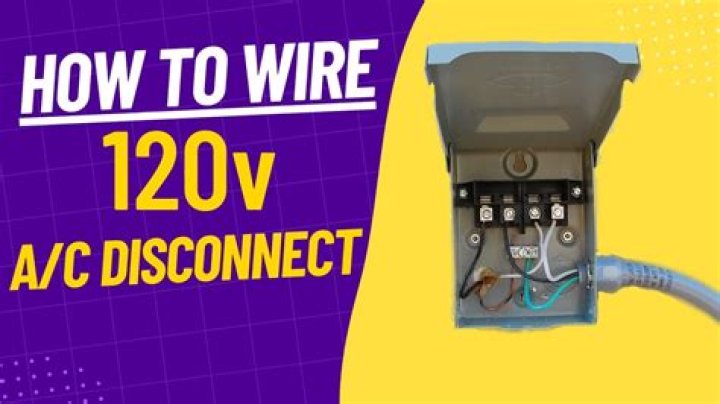

What is an air conditioner disconnect switch?

The AC disconnect switch is a safety feature that makes it simple for your technician to know that all power has been cut off from the air conditioning before work begins on maintaining or repairing your system.

How do I know if my AC fuse is blown?

Test the load: If you saw a voltage reading during the previous step, run the same test on the “load” side of the fuses. You should again see a reading between 220 and 240. If you see a voltage reading on the “line” side but not the “load” side, it means you have a blown fuse.

Where is the AC reset button?

An AC’s reset button is typically red and visible, so it should be easy to spot. If you don’t see a reset button on the outside, it could be located inside the unit behind the service panel. Before poking around inside the machinery, be sure to cut power to the system by flipping off your circuit breaker.

Do I need an AC disconnect?

Disconnects are not used for regular control of the circuit, but are employed as a safety precaution. The disconnect must be within sight from the AC unit to prevent someone who doesn’t know the technician is working on the unit from turning the power on causing unit damage or human life concerns.

Article first time published on

What is the purpose of the disconnect switch?

A safety disconnect switch provides a means of quickly disconnecting mechanical or electronic systems from their primary power source safely. These switches operate both automatically, to protect against circuit faults, as well as manually in case an emergency stop or planned maintenance is required.

Why you shouldn't turn your AC off?

Turning your air conditioner in and off forces it to run at lower speeds for shorter periods, which ends up worse for you because now you have both a hot house and a high energy bill. It also adds extra strain on your unit, which can age it prematurely, resulting in you needing an emergency AC replacement.

How do I reset my home AC?

1. Power down your AC. Start at your circuit breaker panel and flip the breaker that powers your AC. …
2. Find the button. Most air conditioning units are equipped with a reset button. …
3. Hold down the reset button for 3 to 5 seconds and then release.
4. Restore power to your AC.

How do I reset my AC in my apartment?

1. Shut it Off. First, turn off your AC before resetting the thermostat. …
2. Get to the Circuit Breaker. So far, so good. …
3. Wait 30 Seconds. After turning off the circuit breaker linked to the AC unit, wait for a full minute. …
4. Turn it Back On.

Why is my outside unit not turning on?

AC not turning on could be the result of a blown fuse located at something called a safety shut-off box. This should be found close to your AC unit. Check to see if you have a blown fuse, and be sure to replace it if that’s the case. Even if the fuse doesn’t appear to be damaged, go ahead and replace it anyway.

Where is AC fuse?

What is an AC fuse? The fuse is a wire inside a glass casing, found in the disconnection box connected to your AC. The fuse is a protective measure meant to protect your air conditioner from electrical damage.

Where is the fuse on a window AC?

The fuse, particularly common in newer models, helps protect the electronic control. Check to ensure that the power supply to your unit is good, then unplug the air conditioner and remove the cabinet cover. The fuse will be located near the circuit board; check to see if it has blown, using a multi-meter if necessary.

How much does it cost to replace an AC fuse?

AC Fuse, Circuit Breaker or Relay Replacement Cost It costs between $15 and $300 to replace fuses, circuit breakers or relays in an AC unit. These projects are relatively fast and most take just a couple of hours to complete.

What do I do if my AC isnt blowing cold air?

Try cleaning your air conditioner’s filter and the coils to see if improving the airflow fixes the problem. If there is ice buildup, you’ll need to run the unit with just the fan in order to melt it off. If that doesn’t get the unit blowing cold air again, it could be refrigerant levels are low (see below).

How far off the ground does an AC disconnect need to be?

Minimum, NOT maximum Just like outlets are usually placed about 12″ from floor, switches at 48″, etc.

How far off the ground does a disconnect have to be?

Minimum mounting height is not mandated by the NEC. When in its highest position, the center of the operating handle of the switch or circuit breaker should not be more than 6 ft 7 in.
