How do I reset my Beckett boiler?

Hold the reset button down for 15 seconds. When the reset light goes out, release the button. The control will reset.

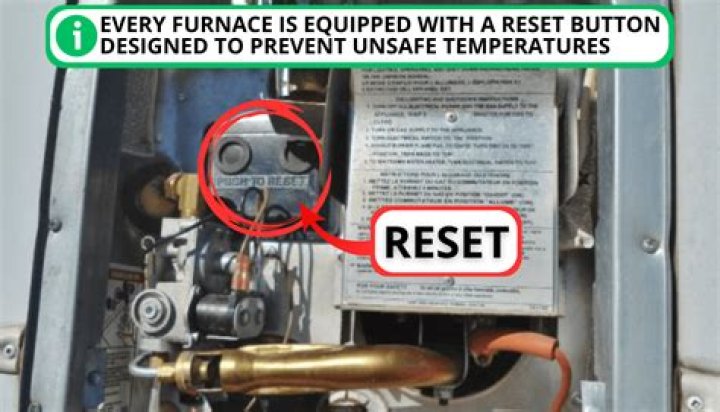

Where is the reset button on a Beckett burner?

If your oil furnace runs then shuts off, you will first need to locate the reset button on your furnace to get it running again. Where is the reset button? The reset button is typically located inside the blower compartment on the side of the blower motor.

How do I get my boiler out of lockout?

Modern boilers will have a reset button on the display button. Press and hold the button to reset the boiler after a lockout. For older boilers (or boilers that don’t have a reset button on the front of the boiler) refer to the manual to determine the reset procedure.

What should I do if my Beckett burner starts?

Jumper TW and TR of the Primary Control. If the burner starts, then check your thermostat. Also verify there is 120v at L1 to L2 and Limit to L2. Turn the power off to the burner. Loosen control. Verify there are not any exposed wires.

What should the co be in a Beckett furnace?

Recommended CO is less than 50 PPM, and usually 10 PPM or less. If greater, possible causes are: Blocked flue, heat exchanger and chimney. Burner head and nozzle combination. Insertion depth in short furnaces. Flame impingement on damaged refractory. High draft (pulling partially burned products from the base of the flame).

What causes a boiler to drop out of a burner?

This is usually due to settings that are not correct, or too much air, and will cause this problem after the ignition drops out. By increasing the pump pressure, this helps to correct that. Someone who knows this boiler/burner package needs to start from scratch.

How to troubleshoot a Beckett oil burner you Hunker?

How to Troubleshoot a Beckett Oil Burner. 1 Step 1. If your oil burner is blowing out black smoke, call a heating technician to have the burner adjusted and cleaned. Ask the technician to clean 2 Step 2. 3 Step 3. 4 Step 4. 5 Step 5.

Recommended CO is less than 50 PPM, and usually 10 PPM or less. If greater, possible causes are: Blocked flue, heat exchanger and chimney. Burner head and nozzle combination. Insertion depth in short furnaces. Flame impingement on damaged refractory. High draft (pulling partially burned products from the base of the flame).

This is usually due to settings that are not correct, or too much air, and will cause this problem after the ignition drops out. By increasing the pump pressure, this helps to correct that. Someone who knows this boiler/burner package needs to start from scratch.
