How do I reduce PVC diameter?

Using a handsaw, make four 1 1⁄ 2 “-deep cuts at 3, 6, 9, and 12 o’clock. Slide two hose clamps onto the slit end and adjust them to the existing diameter. Remove one clamp and leave the other near the ends of the cuts (above left). Apply heat to the PVC with a heat gun until the PVC softens.

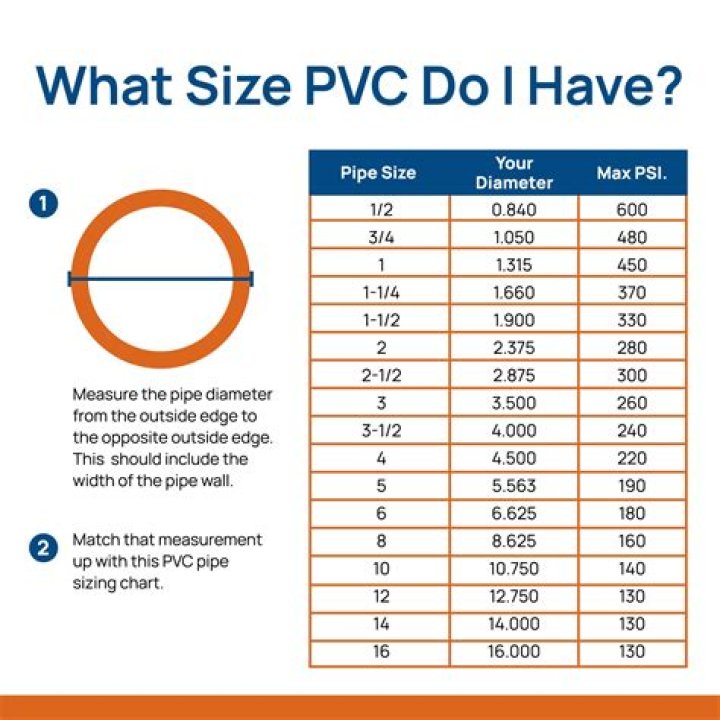

How do I know what size PVC pipe I have?

Read the Manufacturer Markings If you purchased your PVC pipe from a hardware store, you can use the markings on the side of the pipe to tell you what size you have. It will normally indicate the size in decimal or fraction, close to where the manufacturer’s name is, such as ‘1.25’ (for 1-1/4″) or “3/4” (for 3/4″…

What kind of fittings do you need for PVC pipe?

They are a small part that connects or “couples” one part to another, usually permanently. They can connect pipe to pipe, pipe to fitting, or even fitting to fitting. Some of them even reduce so you can connect a small pipe to a large pipe or vice versa. Couplings are available with slip or female-threaded ends, depending on what you need them for.

Do you need glue to connect PVC pipe?

If you are trying to use PVC pipe to transport fluid or gas, PVC cement or special push-on fittings are necessary to assure there are no leaks. Not all applications require a permanent seal like this, however. If you are putting together a structure out of PVC, you will likely have a large number of joints and connections.

Can a PVC pipe extender fit inside schedule 40 pipe?

For example, a 2″ PVC schedule 40 pipe extender will only fit with a 2″ nominal size schedule 40 PVC pipe. Fittings that fit on the outside of pipe are interchangeable, but interior fittings can only be used with their designated schedule of PVC pipe.

What kind of cement is used to connect PVC pipe?

PVC and CPVC cement actually break down the external layers of the pipe, allowing the material to literally combine. This permanently bonds PVC pipe and fittings. If you are trying to use PVC pipe to transport fluid or gas, PVC cement or special push-on fittings are necessary to assure there are no leaks.

They are a small part that connects or “couples” one part to another, usually permanently. They can connect pipe to pipe, pipe to fitting, or even fitting to fitting. Some of them even reduce so you can connect a small pipe to a large pipe or vice versa. Couplings are available with slip or female-threaded ends, depending on what you need them for.

How big should a PVC pipe be in a fitting hub?

With light pressure, the pipe should go 1/2 to 1/3 of the way into the fitting hub. Pipe and fittings that are too tight or too loose shouldn’t be used.

How big of an applicator do I need for PVC pipe?

The applicator should be 1/2 the size of the pipe’s diameter. Coat the surface with primer by applying the primer to the fitting socket, aggressively working it into the surface.

Is it possible to connect PVC pipe without glue?

There are several ways of connecting PVC pipe without glue, so we will go over those here. The first and most obvious way to connect PVC pipe and fittings without using glue is to simply push the parts together. Compatible parts fit snugly together and will not come apart without some kind of outside pressure.
