How do I know what size gas pipe I have?

Measure the Outside Diameter (OD) of your pipe or pipe fitting:

1. Wrap a string around the pipe.
2. Mark the point where the string touches together.
3. Use a ruler or measuring tape to find the length between the tip of the string and the mark you made (circumference)
4. Divide the circumference by 3.14159.

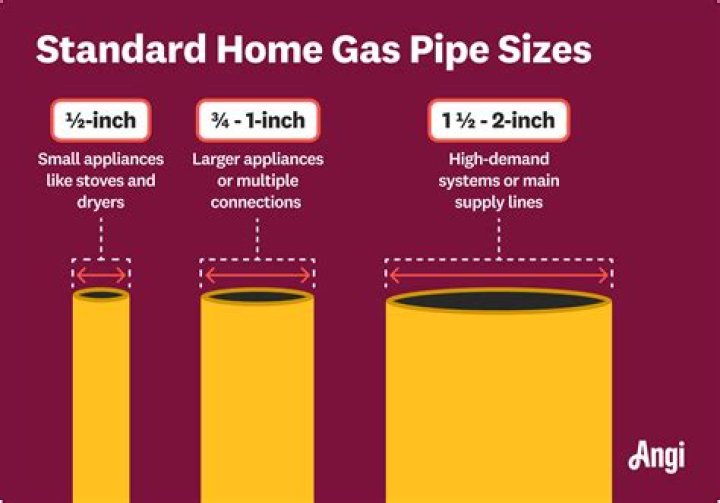

What size pipe is used for natural gas?

Most natural gas pipes run up to a nominal size of four inches, although you can get pip that’s up to eight inches in diameter. When you see the flow for natural gas in pipes, these don’t refer to copper pipes.

Is natural gas pipe measured ID or OD?

Tubing is measured by the OUTSIDE DIAMETER (O.D.), specified in inches (e.g., 1.250) or fraction of an inch (eg. 1-1/4″). Pipe is usually measured by NOMINAL PIPE SIZE (NPS).

How far can you run 1/2-inch gas line?

This chart allows a 200,000 BTU gas appliance to be installed on a ½-inch gas line up to 40 ft. in length. However, the following conditions must be met: The minimum static gas pressure must be 8 in.

What is the ID of 3/4 gas pipe?

But steel 3/4-inch pipe is 1.050 inch OD and 0.824 inch ID for standard Schedule 40 pipe (also a wall thickness designation). Plastic pipe measures the same as steel pipe.

Can gas line be too big?

GAS PIPE SIZING You can flow only so much gas (or water) through a given pipe size, so restrictions will manifest themselves as a lack of pressure or volume. Sizing a gas line is not too difficult. It is easier to start at the last appliance and work your way back to the as meter and/or regulator.

How big is a natural gas pipe in inches?

This is generally used as a reference for the pipe, although the interior size of the pipe is less. For instance, pipe with a nominal size of one inch will have an interior size of just under ½ inch (actually .49 inches). The length of the pipe will have a deep influence on the amount of gas that can flow through it.

How big is a natural gas line fitting?

Add approximately 5 feet of pipe per fitting. Natural Gas Example: A machine with a burner that requires 440,000 BTU would need a 1 -1/4” pipe for a 20” long run. NOTE:The sizing charts above list the specific pipe sizes required for the amount of BTU’s for a new gas line installations.

How is the size of a gas pipe determined?

Minimum Size of Piping Outlets: The size of the supply piping outlet for any gas appliance shall not be less than one-half (1/2) inch. Pipe Sizing Methods: Where the piping size is to be determined using either of the methods below, the minimum diameter of each pipe segment shall be obtained from the pipe sizing shown in Table 2.

Can you measure the ID of a natural gas hose?

In regards to the Natural Gas hose, you can’t really measure the ID of the hose because there are fittings connected to the hose restricting access to the inside of the hose itself. Therefore, you are force to measure the outside diameter (OD) of the hose to get the proper measurement. For our natural gas hoses, the measurements are as follows:

not present Length of Pipe in Feet 1 1/2” 3 3/4” 1 1” S Size of Pipe in Inches 1-1/4” 10 1 108 2 230 3 387 7 793 1 20 7 75 1 160 2 280 5 569 8 30 6 61 1 129 2 224 4 471 7 40 5 52 1 110 1 196 4 401 6

How to calculate the sizing of a natural gas line?

USING CPC PIPE SIZING TABLE (NATURAL GAS) This handout will guide you thru the basic, most common method for sizing a natural gas piping system for residential or commercial application.

Minimum Size of Piping Outlets: The size of the supply piping outlet for any gas appliance shall not be less than one-half (1/2) inch. Pipe Sizing Methods: Where the piping size is to be determined using either of the methods below, the minimum diameter of each pipe segment shall be obtained from the pipe sizing shown in Table 2.
