How do I know if my manifold pressure sensor is bad?

1. A rich or lean fuel mixture. You may notice a gas smell after the engine has warmed up.
2. Excessive fuel consumption.
3. A rough idle.
4. Hesitation or slight jerking during acceleration, or when putting the vehicle into drive.
5. The vehicle stalls or dies immediately after you try to give the engine gas to start the car moving.

What is normal manifold pressure?

With a running engine, intake manifold vacuum usually runs around 18 – 20 “Hg (inches of mercury). At 20 “Hg, the MAP sensor will indicate about 5 psi. This is because the MAP sensor measures “absolute” pressure, based on a perfect vacuum, rather than atmospheric pressure.

What causes high intake manifold pressure?

Possible fault sources in the engine periphery Leaking intake manifolds downstream of the throttle valve (e.g. due to defective intake manifold gaskets, hoses, etc.) Leakages in the vacuum system (e.g. vacuum-operated actuators, brake boosters, lines, etc.)

What does manifold pressure tell you?

“Manifold pressure” is just that—a measure of the air pressure available in the engine’s intake manifold. The manifold pressure gauge tells you how much air is available to be combined with fuel; if you add the proper amount of fuel power will result.

What should manifold absolute pressure be at idle?

With the engine not running and the key on, the MAP sensor should read around 28-inHg. When the engine is started and idling, the vacuum of the engine should reduce atmospheric barometric pressure by 20-inHg. The reading on the scan tool scan tool should be approximately 8- to 9-inHg.

What should manifold pressure be at idle?

The vacuum inside an engine’s intake manifold, by comparison, can range from zero up to 22 inches Hg or more depending on operating conditions. Vacuum at idle is always high and typically ranges from 16 to 20 inches Hg in most vehicles.

What directly controls manifold pressure?

What directly controls manifold pressure? Throttle opening and engine rpm.

What should vacuum be at idle?

around 18 to 20 inches
Normal manifold vacuum on an engine running at idle speed is around 18 to 20 inches.

What should MAF sensor read at idle?

With the engine at idle, the MAF’s PID value should read anywhere from 2 to 7 grams/second (g/s) at idle and rise to between 15 to 25 g/s at 2500 rpm, depending on engine size.

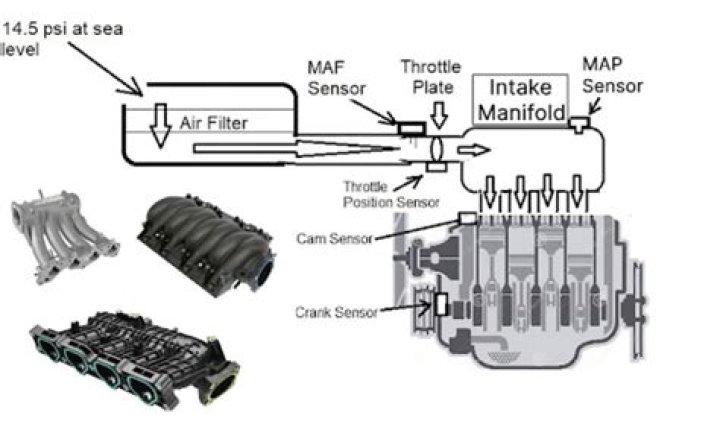

What does a manifold absolute pressure sensor do?

The manifold absolute pressure sensor (MAP sensor) works with intake air pressure to define proper air and fuel quantities required for the ignition cylinders. The MAP sensor measures the vacuum of the intake manifold, which fluctuates according to engine load, relative to the barometric pressure.

Why does the manifold pressure gauge read 10 inches?

Every time the piston drops into the “intake” stroke it is literally pulling or sucking air into the cylinder. Your manifold pressure gauge is actually reading suction not ram air pressure. That’s why at idle power your manifold pressure gauge might read 10 or 12 inches when the outside ambient pressure is 30 inches.

What is the absolute pressure of the intake manifold?

The MAP sensor measures the absolute pressure inside the intake manifold of the engine. At sea level, atmospheric pressure is about 14.7 psi (pounds per square inch). When the engine is off, the absolute pressure inside the intake equals atmospheric pressure, so the MAP will indicate about 14.7 psi.

What should the manifold pressure be at sea level?

Sitting on the ramp before engine start an airplane’s manifold pressure gauge reads about 30 inches, then, at a sea-level airport. In Wichita, Kansas, the same MP gauge indicates roughly 28.5 inches, or 1.5 inches below sea-level standard for the 1500 foot field elevation.

What are the signs of a manifold pressure sensor problem?

Common signs of manifold absolute pressure sensor problems include excessive fuel consumption, lack of power, and failing an emissions test. 1. Excessive fuel consumption 2. Lack of power 3. Failed emissions test Average rating from 129,472 customers who received a Vehicle Engine Electrical Inspection.

Why does my manifold gauge read 12 inches?

Your manifold pressure gauge is actually reading suction not ram air pressure. That’s why at idle power your manifold pressure gauge might read 10 or 12 inches when the outside ambient pressure is 30 inches. Your engine is literally starving for air! It is creating a vacuum or negative pressure inside the intake manifold.

What should the pressure be on the manifold?

In normally aspirated engines (non turbo-charged), the manifold pressure gauge has a range of anwhere between 10 – 40 in. hg (or inches of mercury).

When did the manifold pressure gauge first appear?

First appeared March 21, 1999, If you fly behind a piston engine with a controllable-pitch propeller, the manifold pressure gauge plays an important part in the power settings you use. Few pilots, however, have any real understanding of what the instrument actually measures or what its readings truly signify. Pelican to the rescue!

Why is the manifold pressure so low at idle?

That’s why at idle power your manifold pressure gauge might read 10 or 12 inches when the outside ambient pressure is 30 inches. Your engine is literally starving for air! It is creating a vacuum or negative pressure inside the intake manifold.
