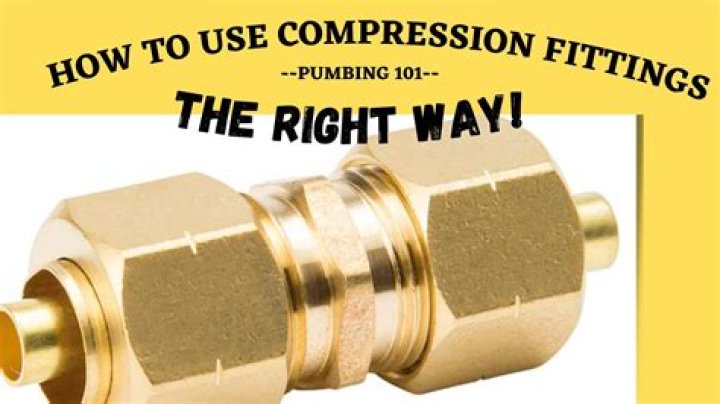

How do I know if I have compression fittings?

If you’re looking at a fitting and wondering if it’s a threaded or compression, take a look inside. The compression fitting will have a seat inside for the tube. This is the quickest way to identify a compression fitting. If you need more proof, look for a nut and the aforementioned ferrule (ring).

How are compression fittings measured?

To measure a threaded fitting, measure the thread diameter at the widest point across the threads. For a non-threaded fitting, measure the actual insert opening diameter or tube being inserted into the compression sleeve.

Do barb fittings need clamps?

For highly inflexible tubing, clamps are often necessary. Tubing that has been repeatedly installed and removed over one or more barbs and is no longer elastic enough to relax behind a barb will require a clamp, too.

Are quick connect fittings universal?

Milton’s 5 In ONE™ Universal Industrial couplers are designed to Connects to all major interchanges: Industrial (M-style), High flow (v-style), automotive (t-style), Aro (A-style), and Lincoln (L-Style).

Can you connect plastic pipe compression fitting?

Can I connect Speedfit pipe directly into compression fittings? Yes, but only if they are compatible. Compression fittings with a short tube stop depth should not be used. Use a ‘TSM’ insert and follow the instructions of the compression fitting manufacturer when connecting to plastic pipework.

How do I connect 1 / 4 ” plastic tube to 3 / 8?

The drain for the waste water attached to my dish-washer drain hose provides a 3/8″ connection (Watts Premier 164020 DLA-D Drain Line Plumbing Adapter). But, the drain with my unit is a 1/4″ hard plastic tube. I am not sure what to do, but maybe I can connect the 1/4″ tube to the 3/8″ tube somehow. Any ideas?

What kind of connector to use for plastic tubing?

Description: 1/4 inch delrin sleeve, one time use, to be used when connecting plastic tubing to brass compression fittings. Will also need brass nut (131002) and brass insert (131017) Compatibility: use with 1/4″ tubing Applications: keeps tubing secure in the

Can a 1 / 4 ” tubing be adapted to a 3 / 8 ” tub?

Also, given that 1/4″ tubing is a standard size, you can adapt it up in size to 3/8″ by using an appropriate brass compression fitting. I’m assuming that it is hard poly and barb fittings won’t work as it isn’t flexible enough. The compression fitting ring will have bite into its surface enough to seal and hold.

How does a quick connect tubing fitting work?

Also known as instant fittings, they connect to tubing with a push, and an internal gripping ring and O-ring hold the tubing tight. Use in applications up to 140 psi. Quick-disconnect couplings consist of a plug and a socket that join with a latch so you can easily connect and disconnect your line. Use in applications up to 150 psi.

How to connect 1 / 4 plastic tube to 3 / 8 poly tubing?

Any ideas? Check the plumbing section of your local hardware or big box store for a double barbed adapter. It may be a direct 1/4 by 3/8 or a multi size barb that increases size from 1/4 to 3/8. Watts connector described has a push-in connector for poly tubing.

How do you connect micro tubing to 1 / 4 ” tubing?

Insert one end of the 1/4″ barbed fitting into the end of the 1/4″ micro tubing and once complete, insert the other barbed end of the fitting into the punched hole in the 1/2″ mainline tubing. When you hear the ‘snap’ you are done.

Also, given that 1/4″ tubing is a standard size, you can adapt it up in size to 3/8″ by using an appropriate brass compression fitting. I’m assuming that it is hard poly and barb fittings won’t work as it isn’t flexible enough. The compression fitting ring will have bite into its surface enough to seal and hold.

Can a 1 / 4 in.od compression fitting be used?

The 1/4 in. OD Compression Brass Coupling Fitting can be used to attach two 1/4” lines together as long as they have 1/4” female compression ends. In order to properly respond to this question we would need additional information. We would need to know what size tube was being used with the fitting.
