How do I choose a water pump for my motor?

When choosing a motor for a centrifugal pump, you must consider the impeller size, maximum capacity, specific gravity of the fluid, and service application in case API requirements apply. If you take these things into account, you will select the right motor for your centrifugal pump application.

How much pressure do you need to pump water uphill?

To push water uphill it will require pressure and if water goes downhill then you will gain pressure. An easy calculation to know is that for every 10 feet of rise you lose -4.33 psi. For every 10 feet of fall in elevation, you will gain +4.33 psi.

How to determine the size of a water pump?

Larger volumes need larger pumps. To figure out the volume of a pond or fountain in gallons, multiply its length by width by average depth (all in feet) by 7.5. For a 300-gallon water feature of a type (explained below) that requires water circulation every two hours, you’d look for a pump with a flow rate of 150 GPH.

How big of a pump do I need for a waterfall?

Remember to add 1 foot of head for every 10 feet of pipe that will connect the pump and waterfall. Next, measure the width of the waterfall where the water will spill over. To create a moderate flow, look for a pump that supplies a flow rate of 150 GPH for every inch of width.

What do you need to know about a pump?

TO CHOOSE A PUMP WE NEED TO KNOW 2 BASIC VALUES: FLOWRATE AND LIFT PRESSURE OR HEIGHT (OR HEAD) the quantity of liquid (water) flowing trough the pipe in a certain timespan. THE MOST COMMON MEASUREMENT UNITS: • m3/h • 1litre/s = 3,6 m3/h • 1 litre/min = 0,06 m3/h A: area of the pipe π x (d/2)2 [m2] v: speed of liquid (water) in the pipe[m/s] Q:

How to choose the right water pump for your home?

If you plan to use a certain tubing size for your water feature (as would be the case when matching the inlet hole of a fountain feature) refer to a pump’s rated discharge diameter. The two numbers should match; otherwise, the indicated flow rate will not be accurate. 5. Livestock.

Larger volumes need larger pumps. To figure out the volume of a pond or fountain in gallons, multiply its length by width by average depth (all in feet) by 7.5. For a 300-gallon water feature of a type (explained below) that requires water circulation every two hours, you’d look for a pump with a flow rate of 150 GPH.

When do you need to size a well pump?

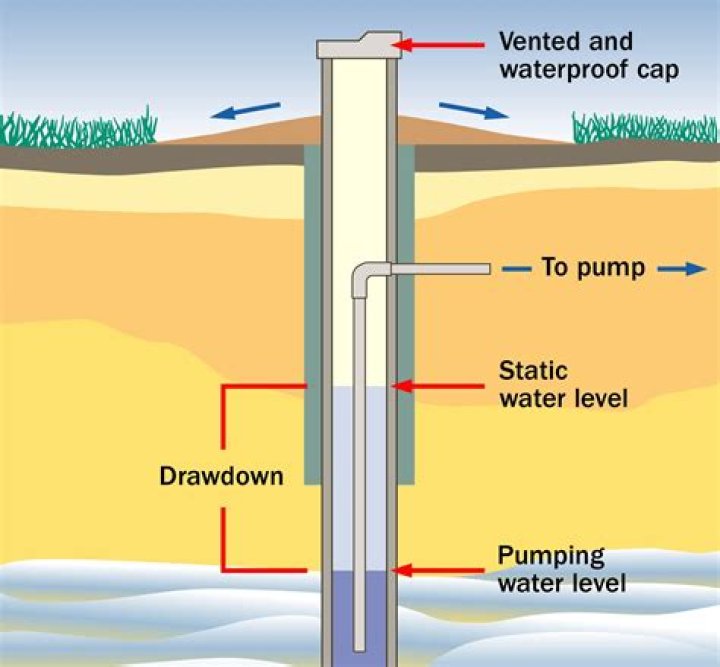

Address Low Well Capacity In the best and most economical water system, the needs of the household are less than the rate at which water can be drawn from the well. If the peak demand exceeds the maxi mum rate of water available, the pump must be sized within the well capacity and the peak demand reached through added storage capacity.

How tall does a pump have to be in order to work?

NOTE:A foot valve or check valve is required for proper operation of any system. The suction line must extend at least 5 feet below the pumping water level and be at least 10 feet above the well bottom. The gpm (gallons per minute) of the pump must equal the total number of ˜ xtures.

How big of a jet pump do I Need?

SHALLOW WELL JET PUMP Down to 25 Feet Suitable for applications where the pumping water level does not exceed 25 feet. Requires a single 1¼” suction pipe. May be used in well 2″ or larger in diameter. To complete installation, you will require the following: • Jet pump • Pressure tank • Pump to tank fi ttings • 1¼” suction piping
