How deep can a jet pump work?

All jet pumps are both “deep well” and “convertible”, meaning they can be used for either a shallow well application or to pull water from a deep well. Deep well jet pumps are designed to pull water up from depths greater than 25 feet up to about 200 feet, depending on the altitude of your geographic location.

How much does it cost to replace a well jet pump?

The average cost of replacing a well pump is between $900 and $2,500. The cost varies based on the well size, materials used, and installation required. For example, replacing a shallow well pump will cost less than a deep well submersible pump.

How long should a jet pump run?

So a minute on and a minute off has always been the minimum rule of thumb. Two minutes on and two minutes off is just that much better for the motor. With the old conventional pressure tank method, the pressure tank fills at the rate the pump can produce, less the amount of water being used at the time.

What is the purpose of a jet pump?

Jet pumps are primarily used to produce and maintain a vacuum by removing vapors from a closed system. In this service, they are usually called “ejectors.” Ordinarily, steam provided the motive power. Jets for this purpose are frequently combined with condensing equipment, and the entire system is purchased as a unit.

How does a deep well jet pump work?

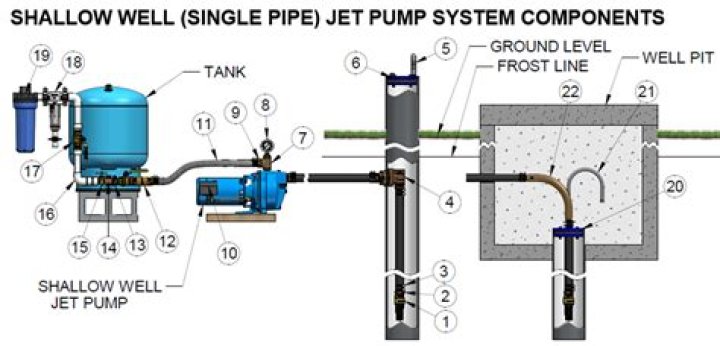

Jet pumps come in two options, shallow well or deep well. Both pump types sit above the ground. The shallow well jet pumps draw water from one line situated in wells no deeper than a maximum of 25 feet deep. Deep well jet pumps use two lines, one for pulling the water, and one for pushing the water into the delivery system.

What to do if your jet pump is weak?

If well is “weak”, lower ejector (deep well), use a tail pipe (deep well) or switch from shallow well to deep well equipment. Plugged ejector: Remove ejector and inspect.

What should the bottom of a jet pump be?

Make sure the bottom of the suction pipe is below the maximum depth that your jet pump is capable of pumping. Make sure the bottom of the suction pipe is below the water level when the pump is turned on and fully engaged. This can cause the water level to drop further when the pump is in operation.

Why is the water level dropping on my jet pump?

The pressure switch needs to be adjusted, points are welded closed or is defective. The water level in well is dropping below pickup pipe or below the pump’s lift capability. The water is being used somewhere in the system at a rate equal or greater than what the pump can provide.

Can a jet pump be used for a deep well?

The terms “deep well” and “convertible” jet pump may be confusing because they actually refer to the same type of pump. All jet pumps are both “deep well” and “convertible”, meaning they can be used for either a shallow well application or to pull water from a deep well.

What should I look for in a jet pump?

There are two terms used to describe jet pumps: Choose a jet pump that has the capacity to pump water as the job requires. Choose a deep well jet pump if you need to: Deep well jet pumps typically have a horsepower greater than 1 and are able to pull water up from greater depths than a shallow well jet pump.

Why is my jet pump not working in my well?

If the jet pump pump impeller assembly is filled with air it has no pumping power. at WATER PUMP, TWO LINE JET. If your water pump is a submersible unit, the pump is located down in the well itself.

Can a jet pump be re primed with water?

If this happens it is possible to re-prime the pump with water from another source. Watch out: before proceeding, turn off electrical power to the well pump. If a jet pump is allowed to continue to run “dry” there is risk that you will damage the pump impeller assembly or the pump motor.
