How big of a pressure tank do I need for my house?

The minimum runtime rule of thumb is any pump operating at 10 gallons per minute (GPM) or under should be producing one gallon per minute of runtime. (For example, 10 GPM flow rate x 1 = 10 gallon drawdown capacity.) Anything above 10 GPM should be producing 1.5 gallons per minute of runtime.

Is a larger pressure tank better?

That being said, bigger is better for your pressure tank. What kills well-pumps is starting, it takes the most abuse from starting, so running is the least work. So to have a larger tank means fewer starts and longer run times, and it also means more available volume and stable pressure in the water plumbing.

Does pressure tank size matter?

An important thing to remember, the higher the operating pressure – the larger the tank must be. Pressure and tank size have a direct correlation – as one increases, so does the other. The higher the pressure setting, the less the drawdown is and thus, the need for larger tank capacity.

How long does it take to install a pressure tank in a well?

The process is fairly simple, as the pressure tank will simply be plumbed into your water main in the basement of your house. Installation typically takes less than 1 hour. Turn off the well pump at the breaker and release pressure in the line by opening a faucet.

How to insulate a water well pressure tank?

Add insulation to the rafters to keep heat trapped in the well house. For well houses that sit on a concrete foundation, add an indoor-outdoor carpet to this area. This serves to create needed warmth inside the well house and protect equipment, such as the pressure switch and pressure tank, from exposure to extreme cold conditions.

What to do if your well pressure tank is not working?

Turn off the main water before starting. If your well has lost pressure or you notice the well pump cycling on and off frequently, this is an indicator of a failed well-pressure tank.

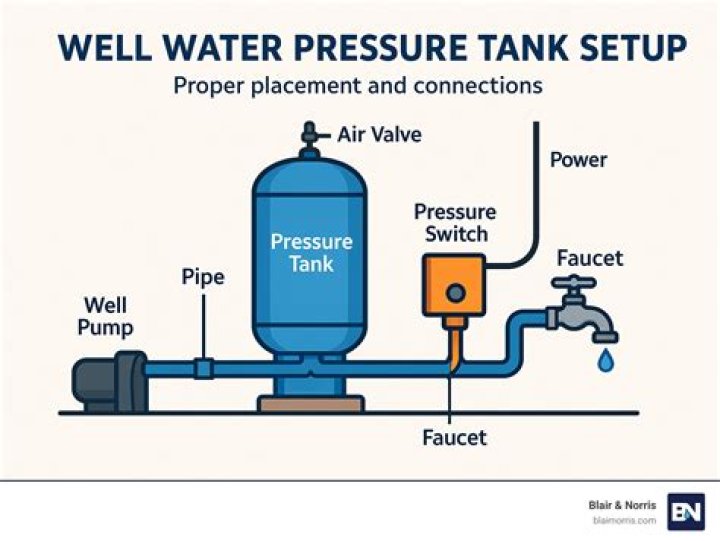

How does a well pump and pressure tank work?

Water Well Pressure Tanks As water is pumped from the well into the pressure tank, it compresses the air in the tank until it reaches a preset level, typically the 40 to 60 pounds per square inch (psi).

What should the air pressure be in a well water tank?

According to Well-X-Trol bladder type well tank air precharge: typical factory set air pressure on a bladder-type residential well water tank is 18 psi. Some models may come with different pressure settings however. WELL-X-TROL™ water pressure tanks are shipped from the factory with a standard precharge of 18 psig for models WX-101 and WX-102

Can a pressure tank be used as a well house?

One such element is a well pressure tank that also serves as a water storage tank. Most country homeowners deal build a well house to protect all the equipment from the weather, but even that is not enough to protect the equipment from freezing.

What do I need to install a pressure tank?

Each package comes with a tank tee, full port ball valve, check valve, hose bib, 100 PSI pressure relief valve, male adapter (to connect to your incoming well line), pressure gauge, and a Square-D pressure switch with a choice of pressure settings. Choose the stainless steel models for higher corrosion resistance and no-lead applications.

What should the pressure be on a well X Trol?

Every Well-X-Trol is tested to 150 psig, the maximum working pressure for the Well-X-Trol line. Should pressures exceed 150 psig, proper selection and sizing of an ASME Well-X-Trol should be made.
