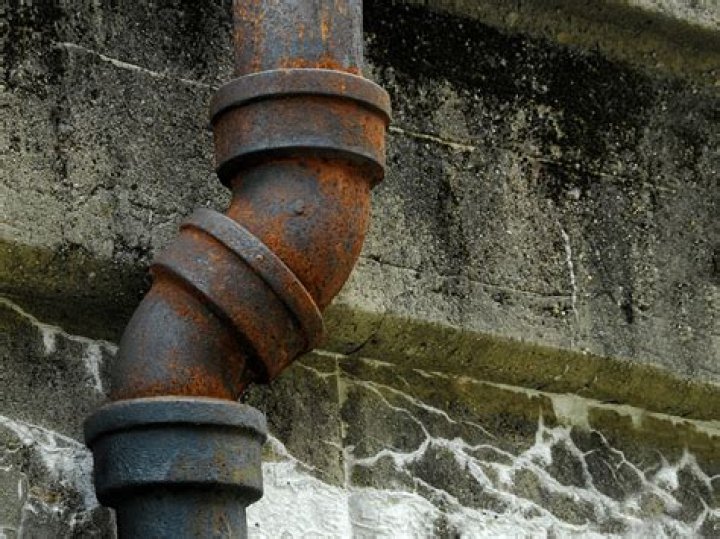

How are old cast iron pipes connected?

If you have cast iron drain (waste) pipes they are likely joined with a lead & Oakum seal. Oakum is a hemp material coated in tar, it is placed into the joint to seal it (Oakum expands when it gets wet to seal the joint).

How do you tie into an existing sewer pipe?

How to Tie Into Existing Drain Line

1. Step 1 – Cut Out Old Pipe. Remove a section of the existing pipe to the same size of the pipe you want to add in.
2. Step 2 – Insert Couplings. Slide a coupling onto both sides of the remaining pipe.
3. Step 3 – Lay in New Pipe.
4. Step 4 – Tighten Couplings.
5. Step 5 – Test for Leaks.

How do you support a vertical cast iron pipe?

How is Cast Iron Supported? Vertical cast iron plumbing stacks transfer the weight to the floor using a simple riser clamp. The clamp tightens around the pipe and the strong metal legs spread out the weight onto the nearby floor. Horizontal runs of cast iron pipe are supported by clevis hangers that cradle the pipe.

Do you have to have drain and vent lines installed?

Before you begin, have your plans approved by an inspector and consider the following: Drain and vent lines must be positioned precisely, so you should install them before the supply pipes. It may be possible to simplify supply runs by moving a vent pipe over a few inches.

What’s the best way to connect a new drain pipe to an old one?

To join a new plastic drainpipe to an old steel pipe, run new pipe into the room. Prime and glue two 5-inch pieces of pipe to a tee fitting. Temporarily run pipe—longer than it needs to be—so it comes near the old pipe.

How big of a hole do I need to drill for a vent pipe?

To run a vent pipe through the ceiling, first drill a test hole to make sure you won’t bump into any joists in the attic. You might need to move the hole over a few inches. The top plate can be doubled, meaning you have to drill through 3 inches.

How is jacketed piping used in a pipeline?

As the name suggests, in the jacketed piping, the main process line has a jacket of another pipe. In simple language, you can say that pipe inside the pipe. Jacketing is used when pipelines carried viscous fluid and required extremely uniform heat distribution. In the image below, you can see that the outer cover has an inlet and outlet connection.

What’s the best way to install a plumbing vent?

Apply PVC primer to the exterior of both pipes and the inside of both of the in-line legs on the tee. However, don’t prime the angled in-line leg until you are ready to cement that section of the pipe. Next, apply PVC cement to the primed fittings and pipes. Afterward, insert the tee securely in place.

When do you tie in a plumbing vent stack?

Individual vents must rise above the overflow line of the topmost plumbing fixture in the house before you can tie it to the main vent stack. This is a precaution that prevents the vent from becoming a drain if that fixture’s drain gets blocked.

When do you need to replace a plumbing vent?

Air is pushed out of the way when water flows down drain pipes. This air must be replaced and that’s what a plumbing vent pipe does. It brings air from outside into the entire plumbing system. To help you understand the need for plumbing vents, let’s talk about what happens in drain piping when water travels down through the system.

How big of a pipe do I need for a shower vent?

For the tub and shower, you can also use a 1 1/2″ pipe to tie into the same 1 1/2″ pipe in the attic that supplies the sink and the toilet. On the outside wall of the kitchen sink, using a 1 1/2″ by 1 1/2″ by 2″ tee, tie into the vent system.
