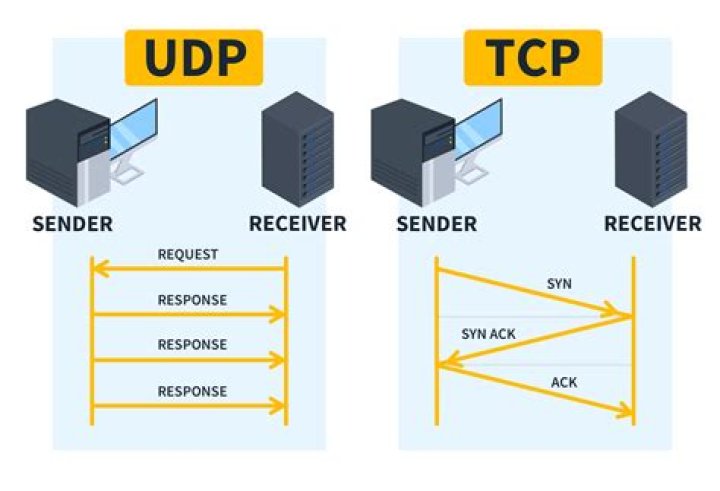

MQTT uses TCP. Due to ordering requirements MQTT over UDP is not possible.

What protocol is MQTT?

The MQTT protocol is the de-facto standard for IoT messaging. Standardized by OASIS and ISO, MQTT publish/subscribe protocol provides a scalable and reliable way to connect devices over the Internet. Today, MQTT is used by many companies to connect millions of devices to the Internet.

Does MQTT use HTTP?

MQTT has a very short message header and the smallest packet message size of 2 bytes. Using text message format by HTTP protocol allows it to compose lengthy headers and messages. It helps to eliminate troubles because it can be read by humans, but at the same time it’s needless for resource-constrained devices.

What ports does MQTT use?

TCP/IP port 1883 is reserved with IANA for use with MQTT. TCP/IP port 8883 is also registered, for using MQTT over SSL. Does MQTT support security?

How does MQTT communication protocol work?

MQTT is a publish/subscribe protocol that allows edge-of-network devices to publish to a broker. Clients connect to this broker, which then mediates communication between the two devices. Each device can subscribe, or register, to particular topics.

Does MQTT support security?

Does MQTT support security. Explanation: Yes, You can pass a user name and password with an MQTT packet in V3. 1 of the protocol. … TCP/IP port 1883 is reserved with IANA for use with MQTT.

Does Kafka use MQTT?

Kafka has an extension framework, called Kafka Connect, that allows Kafka to ingest data from other systems. Kafka Connect for MQTT acts as an MQTT client that subscribes to all the messages from an MQTT broker. If you don’t have control of the MQTT broker, Kafka Connect for MQTT is a worthwhile approach to pursue.

Why MQTT is used in IoT?

Residing on top of the TCP/IP network stack, MQTT is a lightweight publish/subscribe messaging protocol designed for low-bandwidth, high latency, unreliable networks. MQTT’s features make it an excellent option for sending high volumes of sensor messages to analytics platforms and cloud solutions.

What port is 8883?

A quick search of their database shows that port 443 is the registered port for HTTP over TLS (i.e. internet traffic) and 8883 is the registered port for MQTT over TLS.

Does MQTT require port forwarding?

The rule needs to forward the traffic from the public IP address to the internal LAN private IP address of your broker. Remember that MQTT uses ports 1883 and 8883 (for SSL).

Article first time published on

What is the difference between TCP and MQTT?

The MQTT protocol is based on TCP/IP. Both the client and the broker need to have a TCP/IP stack. The MQTT connection is always between one client and the broker. … To initiate a connection, the client sends a CONNECT message to the broker.

What is the difference between MQTT and CoAP?

Constrained Application Protocol (CoAP), is a client-server protocol that, unlike MQTT, is not yet standardized. With CoAP, a client node can command another node by sending a CoAP packet. The CoAP server will interpret it, extract the payload, and decide what to do depending on its logic.

How is CoAP different from HTTP?

HTTP is mainly used for viewing web pages. Coap is a simplified version of HTTP for IoT or WSNs. Although COAP is based on UDP, it should have ACK messages to emulate TCP. Since COAP is simpler than HTTP, it will have lower latency and draw less power.

Is MQTT a standard protocol used for IoT?

MQTT is an OASIS standard messaging protocol for the Internet of Things (IoT). It is designed as an extremely lightweight publish/subscribe messaging transport that is ideal for connecting remote devices with a small code footprint and minimal network bandwidth.

Does MQTT use IP address?

No, only the MQTT broker needs a fixed IP address (and preferably a DNS entry) so the clients know where to find it.

What is MQTT protocol and its use with its API use case?

It allows you to send messages on a topic (channels) passed through a centralized message broker. The MQTT module of API will take care of the publish/ subscribe mechanism along with additional features like authentication, retaining messages and sending duplicate messages to unreachable clients.

What is the difference between RabbitMQ and MQTT?

Key Differences Between RabbitMQ vs MQTT MQTT is designed to be used for smaller devices that send messages over a network with low bandwidth. … On the other hand, RabbitMQ supports almost all the messaging forms like pub-sub, round-robin, message-queues, etc. It also supports message grouping and idempotent messages.

What protocol Kafka uses?

Kafka uses a binary protocol over TCP. The protocol defines all APIs as request response message pairs. All messages are size delimited and are made up of the following primitive types.

Why Kafka is better than RabbitMQ?

Kafka offers much higher performance than message brokers like RabbitMQ. It uses sequential disk I/O to boost performance, making it a suitable option for implementing queues. It can achieve high throughput (millions of messages per second) with limited resources, a necessity for big data use cases.

What encryption does MQTT use?

With MQTT broker architecture, the devices and application becomes decoupled and more secure. MQTT uses TLS encryption with username, password protected connections, and optional certifications that requires clients to provide a certificate file that matches with the server’s.

Which security is inbuilt in MQTT?

To ensure that MQTT is totally secure what will be required is the combination of SPA, SSL/TLS, and an MQTT messaging scheme that continuously updates cryptographic keys, all of which is the basis for SDP. Security can be greatly enhanced with minimal performance penalty using SDP.

Is CoAP a IETF standard?

Constrained Application Protocol (CoAP) is a specialized web transfer protocol for use with constrained nodes and constrained networks in the Internet of Things. … The protocol was designed by the Internet Engineering Task Force (IETF), CoAP is specified in IETF RFC 7252.

Is port 5671 TCP or UDP?

ProtocolPortsDescriptionHTTPS443(TCP)OutboundAzure Service Bus5671 (TCP)Outbound

What is MQTT primarily used for?

MQTT is used for data exchange between constrained devices and server applications. It keeps bandwidth requirements to an absolute minimum, handles unreliable networks, requires little implementation effort for developers, and is, therefore, ideal for machine-to-machine (M2M) communication.

Which applications use MQTT?

Uses. The MQTT protocol is the standard for all major cloud platforms, including Microsoft Azure, IBM Cloud, and Amazon Web Services. Facebook even uses MQTT for its Facebook Messenger and Instagram apps.

Can MQTT work without Internet?

Yes, MQTT may work without internet. See, it only need an IP network because it uses TCP/IP for communication between the subscriber or publisher and the broker. An IP network doesn’t mean you need the internet access.

Does CoAP provide security?

CoAP is a service layer protocol that is intended for use in resource-constrained internet devices, such as wireless sensor network nodes. … CoAP does not provide any security.

What is the difference between MQTT and Websockets?

Key Differences of MQTT vs WebSocket. … WebSocket servers can send messages to clients/groups of clients. They are always open channel for bidirectional data transfer without request for open and close like HTTP. While MQTT defines how different machines can talk to each other, they can talk to the same channel.

How do I open a MQTT port?

1. Press Windows+R.
2. Type firewall. …
3. Click on Advanced settings.
4. First click on Inbound Rules and then Click on New Rule.
5. To open port, Please select Rule Type as Port and click Next.
6. Select TCP or UDP based on your service. …
7. Select Allow the connection and click Next.
8. Click on Next.

What is a bridge in MQTT?

A MQTT bridge lets you connect two MQTT brokers together. They are generally used for sharing messages between systems. A common usage is connect edge MQTT brokers to a central or remote MQTT network. The Mosquitto broker (server) can be configured to work as an MQTT bridge.

Is MQTT more secure than https?

ParameterMQTTHTTPData SecurityIt provides data security with SSL/TLS.It does not provide security but Https is built for that.
