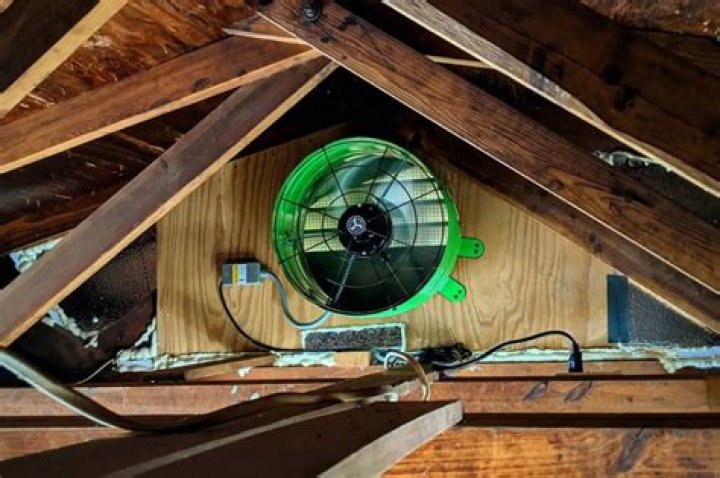

An attic fan will typically need 4 to 5 amps of service. … If an existing circuit nearby cannot handle the added load of an attic fan, you may need to run a new 15-amp circuit to the space. The fan will also require electrical connections to power it and the thermostat to control when the fan runs.

Does a vent fan need to be on its own circuit?

If the vent fan has a built-in heater, it must have its own 20-amp circuit. This is called a “dedicated” circuit because it serves only one appliance or fixture. Heat lamps, wall heaters, and other built-in heating appliances may also require dedicated circuits.

Should an attic fan be on a dedicated circuit?

If you have your attic lights, an outlet, and your attic fan on a 15A circuit, you’re probably fine. You only need an individual branch circuit (what’s called “dedicated” in the trade) in specific scenarios. Kitchens and similar areas need a small appliance outlet dedication.

How many amps does an attic fan need?

An attic fan needs up to 5 Amps of service. Up to 10 electrical boxes can be handled by a standard 15-amp home circuit. A 20-amp circuit can handle up to 13 boxes.

Does an attic fan need a switch?

Attic fans do not come with wall switches. These fans are designed to run the whole day and night without stopping. In addition, their energy consumption is meager, so you don’t have to worry about heavy energy bills.

Can a bathroom fan and light be on the same switch?

You can run your bathroom fan on the same switch as your lights. It solves other problems, so it’s not a bad idea even if you have two switches.

How many receptacles can be on a 20 amp circuit?

The answer to the question how many outlets on a 20 amp circuit is ten outlets. Always comply with the 80% circuit and breaker load rule, allowing a maximum load of 1.5 amps per receptacle. Remember that your circuit, wire sizes, and outlets must be compatible to avoid overheating and electrical hazards.

Where should a attic fan be installed?

Whole house cooling fans reduce the temperature of your home by drawing cool air through open windows while expelling warm air through attic vents. They must be installed on the floor of your attic and run on electricity, creating an intake through the ceiling of the upper level of the home.

Do gable attic fans work?

Attic fans do really work. They will help to circulate air in your attic and ventilate the space so that it stays closer to the outside temperature. Attics can reach extremely high temperatures in hot, summer months and gather an excessive amount of moisture in the winter.

How many amps does a whole house fan pull?

The majority of modern ceiling fans use less than an amp, averaging between 0.5 and 1 amp, depending on the model and the setting. One amp drawn by a ceiling fan is equivalent to about 120 watts. Low settings use less amperage while higher settings use more.

Article first time published on

How many vents should a whole house fan have?

Venting Requirements A rule of thumb is that you should have one square foot of “net free venting area” for every 750 CFM of airflow. So at 3000 CFM, you’ll want four square feet of venting. Most modern homes easily accommodate this rule, but it is important to check to ensure optimum system efficiency.

What is a whole house fan system?

A whole house fan is a large fan in the attic of a home. It pulls the hot air in your house into the attic. From there, a pressure is created in the attic and the hottest air in your attic is then pushed out through attic vents in the roof. It also serves as a whole house ventilation system.

What's the purpose of an attic fan?

Attic fans are intended to cool hot attics by drawing in cooler outside air from attic vents (soffit and gable) and pushing hot air to the outside.

When should an attic fan turn on?

Most attic fans operate with a thermostat that automatically turns the fan on and off based on a temperature the homeowner sets. Most manufacturers and contractors recommend a temperature setting between 100 and 110 degrees Fahrenheit.

Should I turn off my attic fan in the winter?

Q: Should I turn off my attic power fan and close the vents during winter? A: Although the natural instinct to keep the house warmer may be to close the attic vents, that is definitely not a good idea. … The chimney effect causes heat to rise into the attic, and this warm air can hold more moisture than cold air.

What is code height for electrical switches?

Many builders position switch boxes so the bottom of the box is 48 inches above the floor. To satisfy the accessibility requirements of the Fair Housing Act, however, the switch itself should be no more than 48 inches from the floor.

How many outlets can I put on a 15 amp breaker?

Technically, you can have as many outlets on a 15 amp circuit breaker as you want. However, a good rule of thumb is 1 outlet per 1.5 amps, up to 80% of the capacity of the circuit breaker. Therefore, we would suggest a maximum of 8 outlets for a 15 amp circuit.

How far apart should outlets be?

The US National Electrical Code, Section 210.52, states that there should be an electrical outlet in every kitchen, bedroom, living room, family room, and any other room that has dedicated living space. They must be positioned at least every twelve feet measured along the floor line.

Do bathroom fans need isolating switches?

You only need an isolator for the fan, if you want to be able to isolate the fan. There’s no law or Regulation stating you must have an isolator. In fact, unless you are wired directly to the incoming supply you have an isolator, the main switch or an MCB/fuse in you Consumer Unit.

Do bathroom lights need to be on their own circuit?

Although a bathroom may seem like a small space that might effectively be served by a circuit extension off an adjoining room, the NEC now requires at least two dedicated circuits for each bathroom: … Light fixtures and wall switches must be on a separate circuit.

What wire do I use for a bathroom fan?

Most bathroom ventilation fans use a 15-amp circuit breaker and 14-gauge wiring. Due to the increased power drawn, fans with heaters usually require a 20-amp circuit breaker and 12-gauge wiring. Use the manufacturer’s electrical specifications to confirm this.

Do you still need an attic fan when you have a ridge vent?

Combining an attic power vent fan with a ridge vent is usually not recommended because: It could reverse the natural flow of hot air out the ridge vent. If air is drawn in through the ridge vent while it’s raining, it might pull rainwater in with it, which could lead to leaking or mold in the attic.

Can I put a regular fan in my attic?

A box fan sucks air from its back and propels it forward. This makes it well suited to substitute for an attic fan, and you can install it yourself. … No extensive remodeling of the attic must be done, since you will be able to use an existing attic vent.

Is it OK to run an attic fan all night?

Getting the most from your AirScape Only use your fan when the outdoor air is cooler than your indoor air. Make sure your A/C is off when you run the fan to avoid wasting energy. We recommend running the whole house fan all night. The goal is to cool your entire house down, not just the air.

How do I get hot air out of my attic?

Install electric ventilators and attic fans, which remove hot air from an attic. They have thermostats that turn the fan on at a recommended preset temperature of 100-110 degrees. Alternatively, install passive vents such as gable, soffit and ridge vents, which are openings in the roof that allow hot air to escape.

What temperature should a attic fan be set at?

When it comes to an attic fan’s temperature setting, it’s best to adjust it to anywhere from 90 to 110 degrees Fahrenheit. It’s impossible to state a single number because your attic can effortlessly soar above 95 degrees (on average).

Do roofers install attic fans?

Do Roofers Install Attic Fans? Roofers do install attic fans. Actually, it’s a good idea to hire a roofer to do it because the installation will require cutting a hole in the roof itself. … If you’re not hiring a roofer, be sure that the installer has enough roofing experience to properly seal and replace shingles.

How many amps does a 12 volt fan use?

This 12-volt fan puts out 8 watts of electricity. Using our Volts x Amps = Watts equation, we can determine that the fan used 0.6 amps.

Do ceiling fans draw a lot of electricity?

Yes. The average ceiling fan uses 31.1W, that’s 112 times less energy compared to a typical 3,500W AC unit. As mentioned above, ceiling fans do not use a lot of electricity (0.0311kWh per hr on average) and are inexpensive to run (0.004 cents per hr on average).

How much electricity a normal fan consume?

SpeedAtomberg Ceiling FansOrdinary Ceiling FanSpeed 314 Watts45 WattsSpeed 419 Watts55 WattsSpeed 528 Watts75 Watts

What size attic fan would an electrician need for a 1500 square foot home?

Attic floor areaRecommended attic fan size1000 sq.ft700 CFM1500 sq.ft1050 CFM2000 sq.ft1400 CFM2500 sq.ft1750 CFM
