Does a plumbing vent have to be straight?

Tips for Installing Vent Pipes Vent pipes must be installed so they stay dry. This means that they should emerge from the top of the drainpipe, either straight vertically or at no less than a 45-degree angle from horizontal, so that water cannot back up into them.

Can you vent plumbing inside?

Every plumbing fixture needs a means of venting the drain line so that water doesn’t get sucked out of the trap of the fixture—-which could allow sewer gases to enter the home. …

Can a plumbing vent go up and down?

Re: Can a plumbing vent go down? as far as i’m concerned, yes. as long as any condensation can drip somewhere, there should be no problem. we run island vents for kitchen/bar sinks all the time.

Can you 90 a plumbing vent?

You can install 90-degree bends in vent pipes. Plumbing vent pipes are used to allow fresh air into the plumbing system and help the other drains in the house work properly. This means that there are bends or connections in the other piping and this piping needs to attach to the venting system.

How far downstream can a toilet vent be?

That means your fixture drain can have an unlimited distance (909.1). Keep in mind your toilet still needs a vent, but your trap arm can be as long as necessary. Now on the other hand, if your plumbing code is the UPC, they’re not as generous… In the UPC, the toilet’s trap to vent distance is limited to 6 feet.

Can a plumbing air vent have bends?

yes the vent can have a 1/4 bend in it. Normally they run level or plumb, unless there is an obstacle to work around. Vent pipes must be installed so they stay dry. Plumbing vent pipes are used to allow fresh air into the plumbing system and help the other drains in the house work properly.

What does it mean when there is no vent in the sewer?

In some cases, gurgling noises indicate that there is no vent for that particular drain or fixture. Slow Drains. A single slow drain usually indicates a blockage in the drain itself. And slow drains can certainly be an indication that there’s something clogging your main sewer pipe.

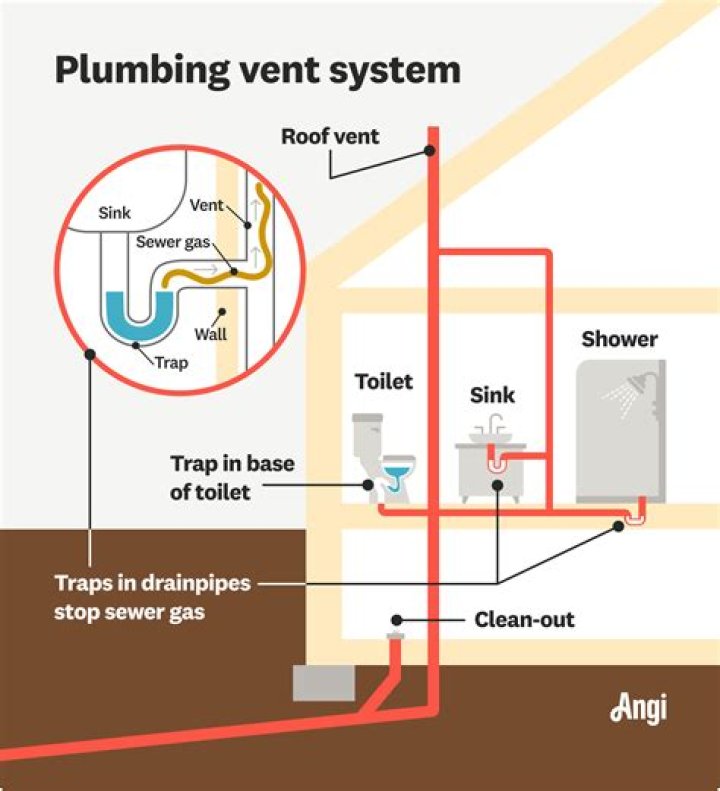

Which is the best way to vent a drain line?

The true vent is aligned vertically and attaches to your drain line through the roof. This is best implemented if a fixture rests close to the stack and the top floor of your home, allowing the stack to serve as a vent. True vents also have no water running through them.

What should I do if my sewer vent is clogged?

If your sewer vent is filled with debris, your plumber may remove it using a special grabbing tool. Then, the vent pipe may be re-angled and a new cap may be put into place to keep debris from clogging it again. Sewage Clogs. There may be a clog in the sewer line right where it meets the vent pipe.

Why do I have a blocked sewer vent on my roof?

These three are the most common. If you started to experience the problems described above after a snowstorm, snow on the roof is probably blocking your sewer vent. This is most likely to occur on a flat roof, from which the snow does not drain properly, or after a really heavy snowstorm that results in several feet of snow on the roof.

Where to put drain and vent lines in a bathroom?

Drain and vent lines must be positioned precisely, so you should install them before the supply pipes. It may be possible to simplify supply runs by moving a vent pipe over a few inches.

In some cases, gurgling noises indicate that there is no vent for that particular drain or fixture. Slow Drains. A single slow drain usually indicates a blockage in the drain itself. And slow drains can certainly be an indication that there’s something clogging your main sewer pipe.

How big of a vent do I need for my bathroom?

This works as long as all the plumbing fixtures connect to the main drain line in the floor within 6 to 10 lineal feet of the sink drain. Local building codes regulate the maximum connection distance of plumbing fixtures for venting purposes.

What’s the old way of venting bathroom plumbing?

The old-fashioned method of venting featured a separate vent pipe for every fixture but that led to multiple vent pipes exiting the roof.
