Do you need a diagram to repair a toilet?

With a good diagram of toilet parts – the majority of toilet repairs can easily be fixed by the homeowner. For these repairs, you’ll need a few basic hand tools, but you won’t need any power tools.

What kind of flush system does Toto toilet use?

The tornado flush system is used by the new Toto toilets and is an improved version of the double-cyclone flush system. Instead of 2 nozzles, the tornado flush system lets the water in to the bowl through 3 jets positioned sideways around the top of the bowl.

What kind of tool do you need to repair a toilet?

While the specific tools will vary, most repairs can be done using an adjustable wrench and a screwdriver. However, if your toilet is older and has rusted bolts on it, you may also need a pair of vice grips to help you break them loose before you can remove them with your wrench. Most parts of toilet assemblies are located inside the Toilet Tank.

Why do I need a touchless flush toilet?

Convenient controls allow for operation of the bidet. Touchless flush: This is the holy grail of germ-prevention. Touchless flushing allows you to simply get up and walk away without ever touching a surface with your hands. Are there space-saving options for small bathrooms?

When to use odd size toilet flanges?

This flange is appropriate if you are unsure of the size of your toilet pipes, or if you need to install a drain pipe between the flange and closet bend because you cannot directly connect the two. Other odd sized flanges exist. Typically the flanges are similar in size to the 4×3 flange, however.

How big is a Schedule 40 toilet flange?

Another type of flange installs on both 4-inch and 3-inch schedule 40 drain pipe. The flange is manufactured so it fits over the top of a 3-inch pipe (in other words, the pipe slides into the flange), or the flange fits inside a 4-inch pipe (the flange slides into the 4-inch pipe).

How big of a drain pipe do I need for a toilet flange?

Many flanges are simply 3 inches in diameter, which means the top and bottom are each 3 inches wide. These flanges must install on a 3-inch-diameter schedule 40 drain pipe or directly to a 3-inch closet bend. When installing this type of flange, make sure your piping is sized properly.

What kind of toilet does American standard use?

American Standard has been at the forefront of the bathroom fixtures industry, and their toilets are no exception. Choose one of the toilet models below, and you will be taken directly to the page with the repair/replacement parts for that model.

What are the different parts of a toilet?

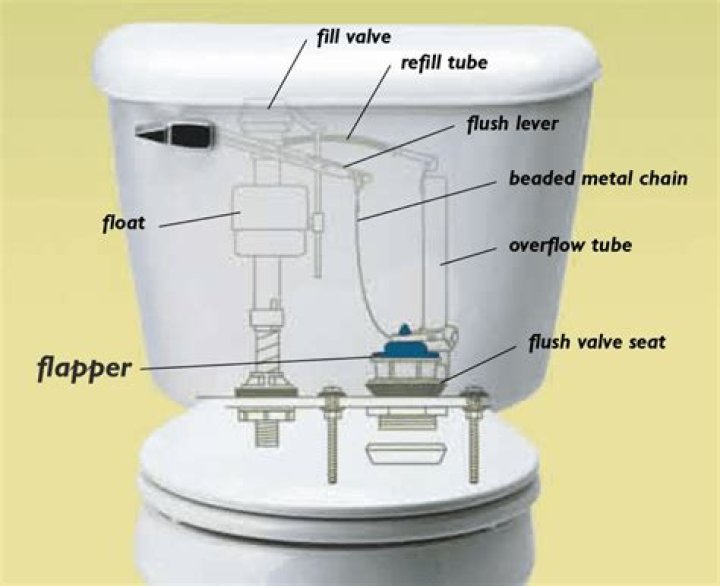

Inside the toilet tank – you will find Two different types of mechanisms: One is the Flush Valve and the other is the Fill Valve. If you need some help identifying them, refer to the toilet parts diagram below for a complete look at all the interior Toilet Parts.

How can I tell if my toilet tank is a problem?

The first step in making repairs to the parts of a toilet tank is to determine which toilet tank part is the problem. The fast way to do this is to look for the vertical white plastic tube standing up inside the tank. This is known as the Flush Valve and acts as a protection mechanism to keep the tank from overfilling.

What do you need to know before buying a new toilet?

Make sure the toilet dimensions will fit your space. Start by measuring the rough-in size. This is the distance between the wall behind the toilet and the center of the drainpipe or the bolts that hold the toilet to the floor. It’s best to perform this measurement before you remove the old toilet.

With a good diagram of toilet parts – the majority of toilet repairs can easily be fixed by the homeowner. For these repairs, you’ll need a few basic hand tools, but you won’t need any power tools.

What’s the minimum vent size for a toilet?

Sizing individual plumbing vents. The minimum toilet vent size depends on your plumbing code. In the IPC toilet vents are 1.5”, in the UPC it’s 2 inches. More on venting a toilet here.

Inside the toilet tank – you will find Two different types of mechanisms: One is the Flush Valve and the other is the Fill Valve. If you need some help identifying them, refer to the toilet parts diagram below for a complete look at all the interior Toilet Parts.

Do you need help to install a toilet?

All you need are a few hours, a helper and the right tools and toilet parts for the job. Before you begin learning how to install a toilet, choose your new toilet, and if you aren’t replacing an existing toilet, make sure you have plumbing ready for the new installation.
