Do water heaters have more than one element?

All electric water heaters have at least one element positioned at the bottom of the tank to ensure all of the water is heated. The default temperature of a heating element is typically set to 120 degrees Fahrenheit.

Why are there two heating elements in a water heater?

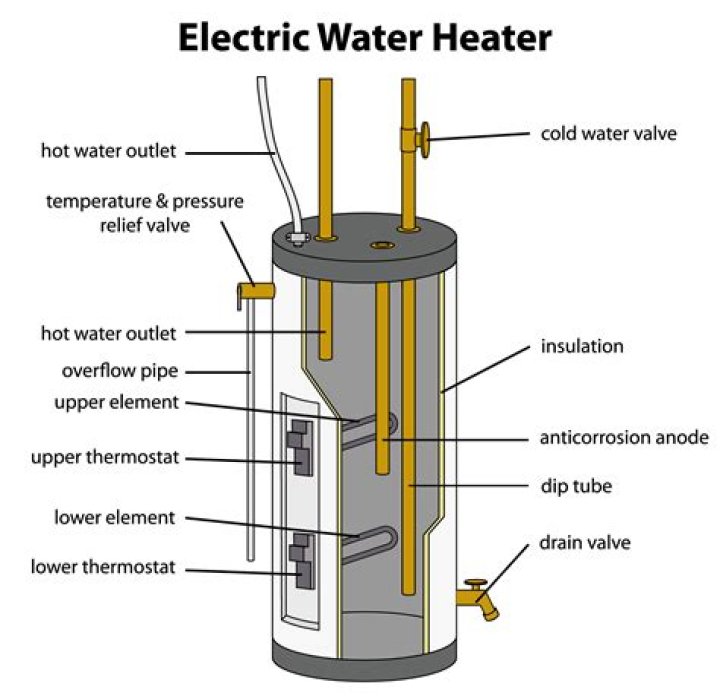

A dual-element water heater uses two heating elements controlled by two separate thermostats. The upper element heats the upper portion of the water column. When it reaches a specified temperature, Rheem notes that it shuts off, and the lower heating element takes over, heating the rest of the water.

Can I replace a single element water heater with a double element?

Most single-element water heaters that are 30-gallon capacity or more can be replaced with a double-element one. Water heaters with a tank smaller than 20-gallons are always single element.

Do dual-element water heaters run at the same time?

The upper and lower elements take turns heating the water, you will never have power to both at the same time. The upper one heats the water in the upper part of the tank first. Once it reaches the set temperature, it will shut off and then send power to the lower element.

Can a water heater have more than one heating element?

Water heaters that are 20 gallons or less typically only have one heating element. Water heaters 30 gallons or more are dual heating element systems. If only one heating element is working in a dual heating element system, the water heater will not produce as much hot water.

How does a dual element water heater work?

Dual element water heaters solve this inefficiency. The two heating elements coordinate with each other to ensure there is always hot water at the tank’s top. If the water temperature at the top of the tank is lower than the top thermostat’s temperature, then the top heating element will turn on and begin the warming process.

Can a water heater run if the bottom element fails?

In most water heaters, the top heating element controls the thermostat and will still work even if the bottom element fails. So provided the top heating element is working, it can still produce some hot water even if the bottom heating element fails.

How does an electric water heater heat water?

A heating element is what heats the water in your electric water heater. Metal coils extend into the heater, and the electricity that runs through these coils heats the surrounding water. Water enters your heater through a tube at the bottom of the tank. This water, while initially cold, will be heated by the element.

Water heaters that are 20 gallons or less typically only have one heating element. Water heaters 30 gallons or more are dual heating element systems. If only one heating element is working in a dual heating element system, the water heater will not produce as much hot water.

Dual element water heaters solve this inefficiency. The two heating elements coordinate with each other to ensure there is always hot water at the tank’s top. If the water temperature at the top of the tank is lower than the top thermostat’s temperature, then the top heating element will turn on and begin the warming process.

In most water heaters, the top heating element controls the thermostat and will still work even if the bottom element fails. So provided the top heating element is working, it can still produce some hot water even if the bottom heating element fails.

What’s the difference between a gas and electric water heater?

Whereas gas heaters heat water with a burner that produces a flame, electric heaters instead use electricity to heat an element. Manufacturers make electric heaters with either one or two elements. With two-element designs, one element heats the water at the top of the tank while the second element heats the water within the bottom of the tank.
