Do water heaters have flame sensors?
Sarah Marsh Do water heaters have flame sensors?
A thermocouple or flame sensor is a device used to control gas flow in gas water heaters. The thermocouple is part of the pilot burner assembly and connects to the gas control valve on the outside of the water heater.

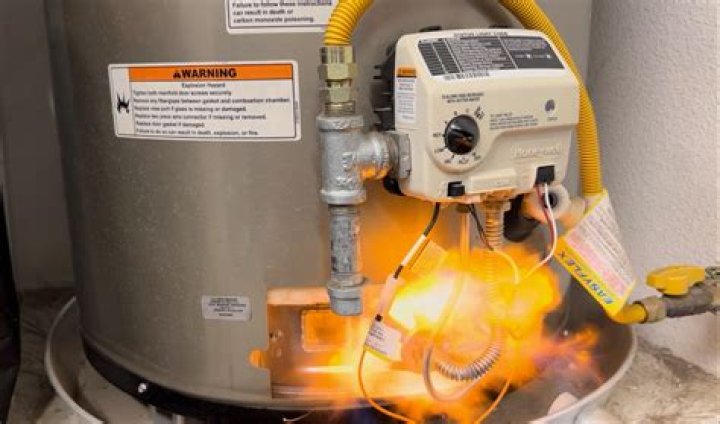

How do I fix the orange flame on my water heater?
How to solve yellow or orange flames
- Remove the scale from the top of the gas burner.
- Ventilation can very well be the issue, give your water heater proper ventilation and sufficient air.
- If the flue or vent system is blocked, make sure to find the cause, clean the pipes and remove the blockage.
How does the flame guard work on a water heater?
The burning vapors literally “burn themselves out” without escaping back into the room. In the event of a flammable vapor incident, the Flame Guard®Safety System shuts off the gas supply to the water heater’s burner and pilot, preventing re-ignition of any remaining flammable vapors in the area.
How much does a flame sensor on a water heater cost?
Estimated Cost: $10 to $30 A thermocouple or flame sensor is a device used to control gas flow in gas water heaters. On older-style heaters with standing pilot lights, the device is typically called a thermocouple, while on newer units with electronic ignition, the same (or virtually the same) device is called a flame sensor.
Why is the flame sensor on my water heater not working?
In simple terms, when the thermocouple does not sense flame, it prevents the gas valve from delivering gas to the burner. It is, therefore, a key safety element of your water heater system. Often a bad thermocouple is the reason why a water heater pilot does not ignite or a burner does not stay lit.
What is the code for a gas water heater?
This water heater must be installed according to all local and state codes or, in the absence of local and state codes, the “National Fuel Gas Code”, ANSI Z223.1(NFPA 54)-lat- est edition.
