Do water hammer arrestors wear out?

Stainless steel constructed (chamber-style) water hammers seldom, if ever, need replacing and are guaranteed for the life of the plumbing. Piston-type water hammer arrestors are mechanical devices and are prone to failure without notice. Replacement intervals are impossible to predict due to variety of factors.

How do I stop water hammer from outside tap?

How to stop water hammer

1. Is air pockets the problem? Another issue that can cause a similar banging sound is actually air pockets in your pipes.
2. Close valves half-way.
3. Replace intake connections.
4. Install water hammer arresters.
5. Secure the pipe.
6. Install pressure limiting valve.
7. Install different taps.
8. Call the plumber.

Where should a water hammer arrestor be placed?

Exactly where to place the hammer arrestor will depend on the actual piping arrangement. The best places are either close to the pump, isolation or check valve that is originating the hammer, or at more distant points where the pipe changes direction, for example at the top of a pump riser.

When would you use a water hammer arrestor?

Water hammer arrestors are used to absorb the shock when water flowing in a piping system suddenly stops due to fast closing shutoff valves, dishwashers, and clothes washers. This action protects against annoying and potentially damaging effects of water hammer.

How are hammer arrestors used to control water flow?

As water flows through a pipe, it creates movement and pressure. Movement can be controlled by correctly installing hammer arrestors near check valves in addition to proper placement of supports, hangers, and/or strapping.

When do hammer arrestors need to be replaced?

Severe shock can occur in residential plumbing when excessive water pressure is involved. Properly installed hammer arrestors lessen the possibility of damaging the plumbing system. “Shock can cause premature failure of piping, water heaters, laundry machines and valves,” says journeyman plumber Tony Marinas.

Why do I need a hammer arrestor for my dishwasher?

A properly installed arrestor will eliminate shock and noise generated from dishwasher piping. Severe shock can occur in residential plumbing when excessive water pressure is involved. Properly installed hammer arrestors lessen the possibility of damaging the plumbing system.

Where is the water hammer arrestor on the combi boiler?

However, the arrestor now seems to be failing as I am again hearing a heavy clunking sound in the pipes whenever the toilet cistern is filled after flushing and whenever I turn off my taps after running water from them. The arrestor is located on the cold water feed that leads to the combi-boiler (a Baxi).

What is the function of water hammer arrestor?

Water hammer arrestors are devices that control the loud knocking sounds in the pipes , which occur due to the sudden shut off of the water flow. It is caused by pressure waves.

What in the world is a water hammer arrester?

Water hammer arresters are simple devices that install within the water line to a specific fixture or appliance . Arresters absorb the shock wave created by a sudden stoppage of the water flow. Installing a water arrester on each line supplying the offending fixture (or fixtures) usually solves the problem.

How do you eliminate water hammer?

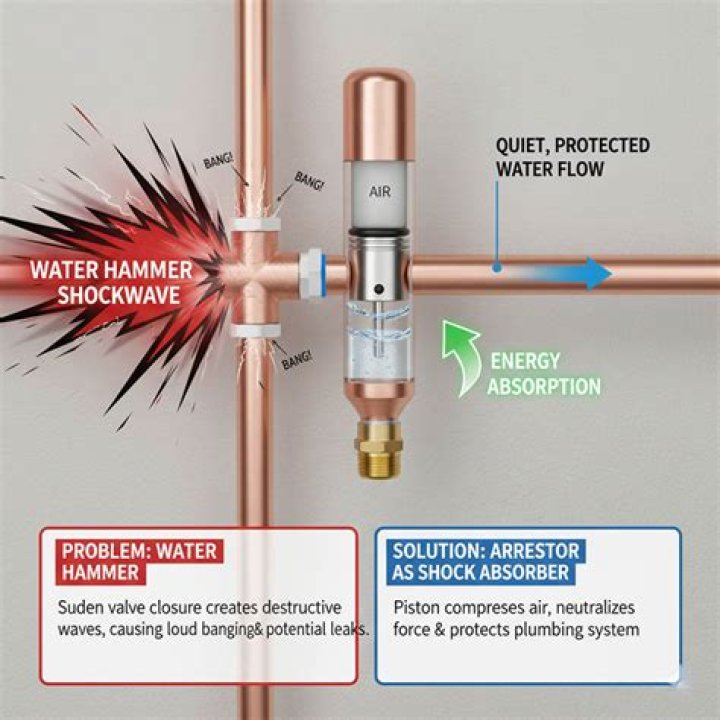

Using Water Hammer Arrestors. Usually, the best long-term solution for eliminating water hammer is to install a water hammer arrestor on each water supply line that makes noise. A water hammer arrestor works much like an old-style air chamber, but it includes an air- or gas-filled chamber that is sealed by a diaphragm or piston.

How to avert water hammer?

Preventing Water Hammer from Damaging Pumps and Pipes Remove the cause of the hammer. Some causes can be resolved by arranging for the elimination or control of the problem item. Reduce the pumping velocity. This can be done using a larger pipe diameter or lower flowrate. Make the pipe stronger. Slow down valves, or use ones with better discharge characteristics in the pipe system.
