4 Answers. First, no, they don’t function as a check valve. They limit inflow by dynamically changing the valve opening so that when less pressure is on the out side, the valve opens up fully, and too much pressure on the out side causes the valve to shut.

Does a pressure reducer prevent backflow?

A combination backflow preventer and pressure reducing valve shall be installed to prevent the backflow of contaminated water while managing incoming water pressure. The valve shall be a Cash Acme BFAC.

Can water flow backwards through a pressure relief valve?

Most pressure reducing valves have an arrow indicating the proper direction of water flow through the valve. A valve installed backwards is an installation issue. If the valve is installed backwards, the boiler will not get any makeup water.

Is a pressure regulator a backflow preventer?

I am scratching my head on this question. PRV is supposed to create a closed system requiring a thermal expansion tank. But at the same time PRV is not considered a backflow preventer.

What is the purpose of pressure reducing valve?

Pressure reducing valves (PRV) lower the downstream pressure to match the setpoint, opening as the pressure falls and closing as it rises. These mechanical valves employ a spring against a diaphragm or piston as the control element which makes them simple and reliable in operation.

Do regulators act check valves?

A water pressure regulating valve limits inflow by dynamically changing the valve opening so that when less pressure is on the out side, the valve opens up fully, and too much pressure on the out side causes the valve to shut. … A water pressure regulating valve does not function as a check valve.

Do I need a backflow preventer for drip irrigation?

The backflow preventer is a device that prevents dirt, salmonella, dog pee, etc. from being sucked back into your drinking water from the drip system. You need to use a backflow preventer on ALL drip systems. No exceptions!

Does the pressure regulator go before or after the timer?

If you are using a timer, timer must be installed first, followed by the backflow preventer, the filter, and then the pressure regulator. Also, remember to hand tighten these parts.

Do I really need a backflow preventer?

Understand that it is always recommended to install a backflow preventer in any situation where incoming water and waste water have a chance of being cross-connected. This serves to protect you and your home, keeping your drinking, bathing, and cleaning water safe.

Is a pressure reducing valve a one way valve?

4 Answers. First, no, they don’t function as a check valve. They limit inflow by dynamically changing the valve opening so that when less pressure is on the out side, the valve opens up fully, and too much pressure on the out side causes the valve to shut.

Article first time published on

Is a check valve the same as a relief valve?

Pressure relief valves not to be replaced with the check valves, if the pressure on upstream side is greater than the downstream of check valve, there shall always be flow. PRVs are normally joined to flare headers or blowdown systems (meaning whatever passes through PRVs is waste and shall be burnt).

What is back pressure regulator?

A Back Pressure Regulator (BPR) is a device that maintains a defined pressure upstream of itself, at its own inlet. When fluid pressure at the inlet exceeds the setpoint, the valve opens to relieve the excess pressure.

Is a pressure reducing valve necessary?

Yes. In areas with high water pressure such as Draper – because our water comes down from the mountains – a PRV helps protect pipes, fixtures, and water-using appliances from damage or breaks. PRVs can save you money by reducing the amount of wasted water in your home.

What is the difference between pressure reducing valve and pressure regulating valve?

What is the difference between a pressure reducing valve and a pressure regulator? A regulating valve is the same as a pressure reducing valve. The valve reduces incoming pressure to a set pressure. … The pressure regulating valve maintains pressure downstream to a specific input.

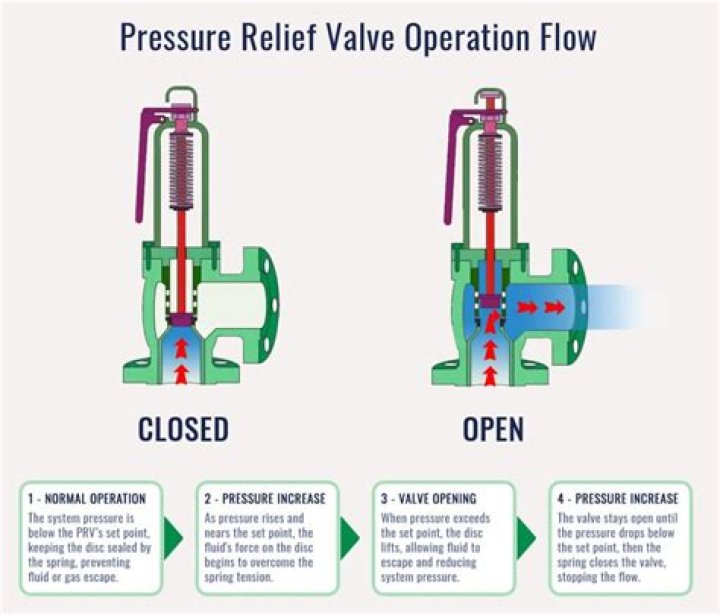

What is the difference between a pressure relief valve and a pressure reducing valve?

It closes normally and opens only when the system pressure exceeds the setting of the pressure relief valve, by releasing pressurized oil to the lower pressure side or tank. Whereas on the other hand, the pressure reducing valve limits the pressure for the system to less than the maximum pressure.

Do I need a pressure reducing valve for drip irrigation?

In short – no, pressure regulators are not optional in a drip irrigation system. Pressure regulators help prevent leaks, emitter blowouts, premature system damage, and irregular water application. If you want your irrigation system working fully, you need a pressure regulator.

Is an anti siphon valve a backflow preventer?

Anti-siphon valves are the most common type of backflow preventer used on residential irrigation systems, primarily because they are simple and inexpensive.

Where does the backflow preventer go drip irrigation?

About. The backflow device (vacuum breaker), when used in a drip irrigation installation, is installed after the faucet or hose bib. If used with a hose end timer, the backflow device is installed after the controller to lower the stress of braking on the backflow device.

Does a pressure regulator reduce flow?

A water pressure regulator valve works in much the same way as an outdoor hose faucet. A screw at the top allows you to increase or decrease the flow of water through the valve. Tightening the screw restricts water flow and hence places a tighter limit on the maximum water pressure.

Is a bypass check valve always required when using a pressure reducing valve?

Note that there is no bypass check valve on reducing valve C. When the system does require reverse flow through the reducing valve, the bypass check valve can be omitted. However, for a circuit with reverse flow always use a bypass check. … Also, when the pump is at pressure, reducing valve drain line flow is constant.

Do sump pumps need backflow preventer?

Traditional water powered backup sump pumps, located down in the sump pit, have discharge pipes filled with dirty sump water. … To guard against this, plumbing authorities generally require that homes with traditional water powered sump pumps install a Reduced Pressure Zone (RPZ) backflow preventer.

Do I need an anti siphon valve on my sprinkler system?

An anti-siphon valve is an essential irrigation part that should not be left off your supply list. If you want to keep your drinking water safe while providing yourself with peace of mind then an anti-siphon valve is just what you need.

Does pressure regulator go before filter?

Should I put my pressure regulator before or after the filter? All pressure regulator should be pre-filtered (placed downstream from the filter).

Why does my pressure reducer leak?

Water may leak from the hole if the pressure regulator is installed before (upstream of) the timer or valve, if there are too few drippers on the zone, or if dirt is accumulating below the pressure regulator washer. Water may also leak from the hole if the static water pressure is above 100 psi.

How many emitters can I put on a drip line?

1 or 2 emitters per plant, depending on the size of the plant. Trees and large shrubs may need more. Obviously, using two allows for a backup if one clogs up (which happens now and then, even on the best designed and maintained drip systems.) But just as important, more emitters also wet more soil area.

When should a pressure reducing valve be installed?

A pressure reducing valve can be installed on the water main just before any faucets or devices. This will ensure that all fixtures get water at a reduced rate. Ideally, water pressure will be no higher than 60 PSI.

What should a pressure reducing valve be set at?

Most valves have a locking nut. Once you unscrew this nut, you will be able to turn the adjustment screw, knob, or bolt. Adjust it until the pressure shown on your gauge reaches the desired level. For most residential purposes, that means a pressure below 80 psi.

What is the maximum set pressure for safety valve?

The set point of a pressure relief valve is typically determined by the MAWP. The set point of the relief device should be set at or below this point. When the pressure relief valve to be used has a set pressure below 30 psig, the ASME Code specifies a maximum allowable overpressure of 3 psi.

What is the difference between pressure regulator and back pressure regulator?

The pressure regulator is a normally-open valve and is installed at the START of a system or before pressure sensitive equipment to regulate or reduce undesirable higher upstream pressure. … The backpressure regulator is called upon to provide pressure in order to draw fluid off the system.

How do back pressure regulating valves work?

Back pressure regulator is a type of control valve that maintains set upstream pressure – i.e. controls inlet pressure. … Once the system pressure exceeds the loading pressure, the pressure / force under the sensor pushes the valve up and hence opens the seat orifice to allow the fluid to flow through.

What are the advantages of back pressure?

Advantages include that it enables remote pressure control at a safe distance as aforementioned, as well as uses low pressure inert gas; and it has low pressure drop under dynamic conditions.
