Do electric water heaters have two elements?

Most electric water heaters in Saskatoon have two elements, upper and lower. When there is a problem with the thermostats/element feature, then a water heater may not provide enough hot water. In a dual elements system, heating occurs in one element at a time, never simultaneously.

Why do electric water heaters have two heating elements?

The two heating elements coordinate with each other to ensure there is always hot water at the tank’s top. If the water temperature at the top of the tank is lower than the top thermostat’s temperature, then the top heating element will turn on and begin the warming process.

Do both elements on a water heater run at the same time?

This means both elements are never ON at same time (simultaneously) unless specific wiring inside heater is changed significantly. One element is ON, or the other element is ON, or both elements are OFF. Lower element turns on-and-off during standby hours to keep tank temperature at thermostat set point.

How many elements are normally on an electric water heater?

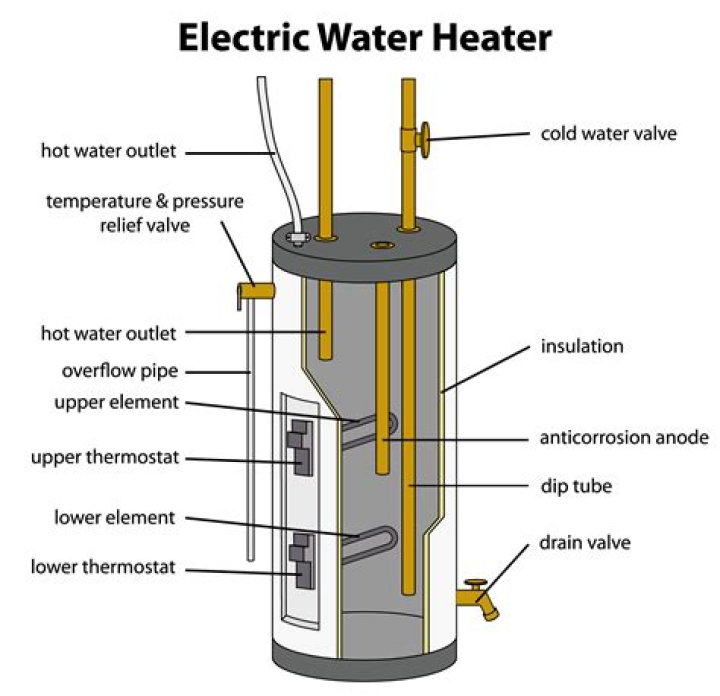

Most residential electric water heaters have two heating elements: one near the top of the tank and one near the bottom. Power enters the top and runs to the high-temperature cutoff switch, and then to the thermostats and elements.

How do dual-element electric water heaters work?

With a dual-element water heater, there are two heat elements – one on the top and one toward the bottom of the tank. Once the water in the top half of the tank reaches the set temperature, the top element turns off, and the bottom element turns on to heat the rest of the water.

How does dual element water heater work?

How long do electric water heater elements last?

Replacing a Hot Water Heater Element Water heaters typically have a life span of 6 to 10 years, so if your heater is older, you can expect that it’ll be experiencing problems sooner than later.

How does a two element electric hot water heater work?

A dual-element water heater uses two heating elements controlled by two separate thermostats. The upper element heats the upper portion of the water column. When it reaches a specified temperature, Rheem notes that it shuts off, and the lower heating element takes over, heating the rest of the water.

What are the elements in an electric water heater?

Electric water heaters operate by use of either one or two heating elements, managed by either thermostats or a microchip control module, that heat the water within the tank to the specified temperature.

Why do I have two heating elements in my hot water tank?

The arrangement you have is usually installed to take advantage of lower prices ‘off-peak’ electricity. The lower element heats a full tank overnight using off-peak, the second element is usually used as a boost to heat the top half of the tank if you have used up the full tank of hot water.

Can you run a water heater with only one element?

So, can you run a water heater with only one element? Yes, a water heater can still run if the bottom element quits. However, the water heater won’t run efficiently and likely won’t produce enough hot water to satisfy your family’s needs running on just the top element.

What makes up the top of a hot water tank?

This is because cold water enters the tank at the bottom, so this element is responsible for the majority of water heating. The top or middle element is there for times when there is a high demand for hot water in your home and heats the water in the top portion of the tank.

What is the best water heating element?

Obviously, casting aluminium heating element is the best one which could bear the highest water pressure. According to data gathering, it shows their heat efficiency as below: Casting aluminium heating element : 97%. Cooper heating element or stainless steel one (90% ) Glass heating element (98%) Bare wire heating element (98%)

How do you test an electric water heater element?

To test an electric water heater heating element, use a multimeter or multi-tester. Turn off power to the electric water heater at the main power panel by turning off the circuit breaker or fuse powering the heater. Wait for the water heater to cool.

How do you replace the heating element in a hot water heater?

When replacing a water heater element, always replace the rubber gasket to prevent leaks. Insert the gasket over the threads of a screw in element, or around the base of a flange element. With the gasket in place, install the new element by reversing the removal process and turning the element in a clockwise direction.

What is the resistance of a water heater element?

The actual resistance of a good heater element depends on the element’s wattage rating which can be found stamped on the element or on the heater’s specification plate. Typical wattage ratings are 1000, 1250, 1500, 2000, 2500, 3000, and 3500 watts, with resistances of 55.7, 44.6, 37.1, 27.8, 22.3, 18.6, or 15.9 ohms.
