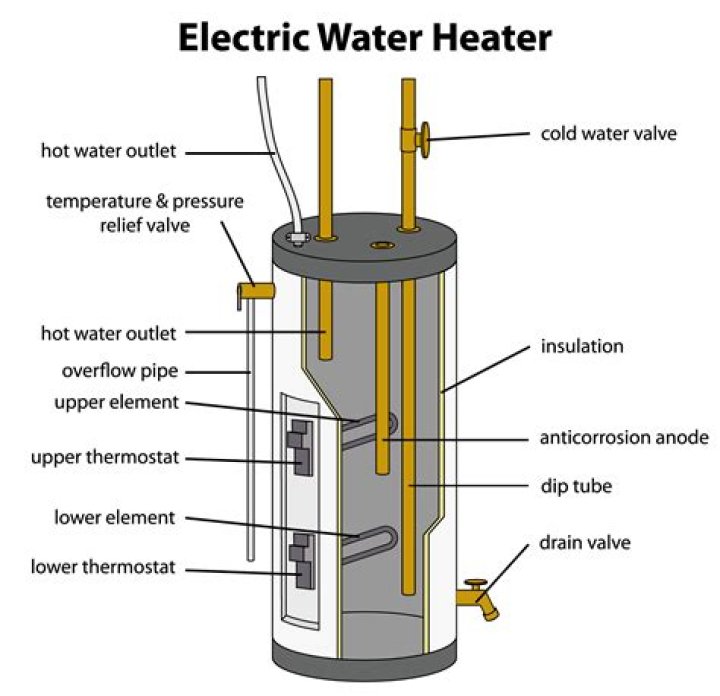

Most residential electric water heaters have two heating elements: one near the top of the tank and one near the bottom. Power enters the top and runs to the high-temperature cutoff switch, and then to the thermostats and elements. … The upper and lower heating elements never come on at the same time.

Do hot water tanks have two heating elements?

Many modern homes come with dual-element water heaters. … The upper element heats the upper portion of the water column. When it reaches a specified temperature, Rheem notes that it shuts off, and the lower heating element takes over, heating the rest of the water.

Which element on a water heater heats up first?

Initial start up: When the tank is full of cold water, the upper thermostat will take priority and heat up the top portion of the water to the setting of the thermostat. Once that temperature has been reached, the thermostat will then flip power down to the lower thermostat.

Are upper and lower water heater elements the same?

Upper and lower heating elements are identical, and the temperature is regulated by the upper and lower thermostat and high limit device. Electric water heater elements can be different in size, but the most common is 12″ (300 mm).

What is the difference between a single element and twin element hot water system?

Single element systems are likely to have two off peak heating cycles. One in the middle of the day and one in the middle of the night. Twin element hot water systems will be supplied with both off peak electricity and continuous tarriff electricity.

Why do hot water heaters have 2 elements?

With two-element designs, one element heats the water at the top of the tank while the second element heats the water in the bottom of the tank. Electric heaters feature fewer parts than gas models, but a basic understanding of how two-element models function can reduce the time needed to diagnose a problem.

Are both water heater elements the same?

There are three types: screw in, bolt in and clamp in. They all have different wattage ratings and can work on either 120 or 240 voltage. Check your state and local codes before starting any project.

Are all water heater elements the same size?

Does the length of a water heater heating element make a difference? No, not as long as you have the proper voltage, watts and style. Shorter elements have a larger diameter therefore the same surface area.

Are all heating elements for dryers the same?

No one manufacturer makes all their dryers the same. … Look for the high-limit thermostat on the side of your dryer’s round heating element or rectangular heating element housing. The high-limit thermostat is black, round and has two wires connected to it.

Will a hot water heater work with only one element?

Yes, a water heater can still run if the bottom element quits. … In most water heaters, the top heating element controls the thermostat and will still work even if the bottom element fails. So provided the top heating element is working, it can still produce some hot water even if the bottom heating element fails.

Article first time published on

Should you replace both water heater elements at the same time?

Both heating elements generally do not work simultaneously. The only way to know which one is working would be to monitor the voltage at each heating element. … I recommend replacing both elements since you have to drain the tank to clean flush the sediment out anyway.

Does it matter what wire goes where on water heater element?

No, it does not matter which wire goes to which heating element terminal in this case – electricity can flow in either direction.

What happens when a heating element goes out in a water heater?

If you have an electric water heater, the heating elements inside the tank can break and lead to a loss of hot water. Sometimes, your water will slowly start to cool down and this could be because the element has burned out. If the second element fails, you’ll be left with only cold water.

How do I know if my hot water heater element is bad?

Touch a probe on the multitester to each screw on the element. If you get no reading, or a maximum reading, the element is bad. Elements do have some resistance, so a reading of 10-16 ohms is normal, with higher ohm readings for 3,500 watt elements and lower readings for 5,500 watt elements.

Are water heater thermostats universal?

No, all water heater thermostats are not universal. There are some variances in thermostats between single element water heaters and dual element water heaters. Also, in dual element water heaters, there is a difference in the upper and lower thermostats.

How many elements does a hot water tank have?

Your water heater will come with two elements — one located up high, and another down toward the bottom of your water heater. The system runs an electric current through each element, causing them to heat and raise the tank’s water temperature.

What should my hot water tank thermostat be set at?

The short answer: 120 degrees Fahrenheit. This is the preset thermostat temperature in most new water heaters, and it’s the recommended setting of the U.S. Department of Energy. At this temperature, harmful pathogens like the kind that cause Legionnaires’ disease are prevented from multiplying and may be killed.

How many heating elements does a dryer have?

Four components are wired into the circuitry of an electric dryer to prevent damage in the case of insufficient air flow.

Is it worth replacing heating element in dryer?

If your dryer’s heating element burns out more than once within a year or two, the thermal fuse, which is supposed to protect it, is probably defective, so it’s a good idea to replace it. The temperature in the heating chamber may also be too high, and that may be caused by poor venting.

Why does my dryer sometimes not get hot?

Common reasons for an electric or gas dryer not heating are a tripped circuit breaker, clogged vent, and no gas flow. Other potential reasons include a faulty thermal fuse and broken heating element.

How does a 2 element electric water heater work?

In a dual elements system, heating occurs in one element at a time, never simultaneously. When the water tank has cold water in it, the upper thermostat will heat the upper element. This thermostat then shuts down once the water in the top half of the tank reaches the required temperature.

Do I have to drain water heater to change element?

It is possible to change your water heater’s heating element without draining your tank. Although, keep in mind that it can be a bit more challenging.

What size socket do I need to remove a water heater element?

If you have a 1/2″ drive socket you can use a Drive x 1-1/2 inch socket. The socket’s opening will fit the hex end on all standard residential water heater elements. To remove a water heater element without an element wrench, you simply place the 1-1/2 socket over the head of the heating element.

How many wires does a water heater need?

You now have an redundancy with the ground and the white wire. The white wire is not needed. The long and the short of this story is that a water heater needs two hot conductors and a ground to work.

Is it possible to wire a water heater element backwards?

Can you wire a hot water heater backwards? Yes, you can get it with minimal effects. If the 220v heater has red and black wiring, it can be wired backwards. As much as this is possible, you must ensure you correctly wire the hot water heater to avoid water polarity issues.

Does a hot water heater need a ground wire?

The National Electric Code does not require a bonding wire on a water heating system. Is this true? Plumbing systems with PEX or other forms of plastic water supply pipe don’t require any kind of electrical grounding.

Why is my hot water so hot all of a sudden?

If your water heater is making hot water too hot all of a sudden, it’s likely the result of the temperature setting being too high, a malfunctioning thermostat, high mineral content, or the pressure relief valve is blocked. Each of these issues can cause the water from the faucet to come out too hot.

How much does a hot water heater element cost?

A water heater element can cost between $10 and $60 and can be found at most home improvement stores. If you’re comfortable with light electrical work, replacing a water heating element is a DIY task.
