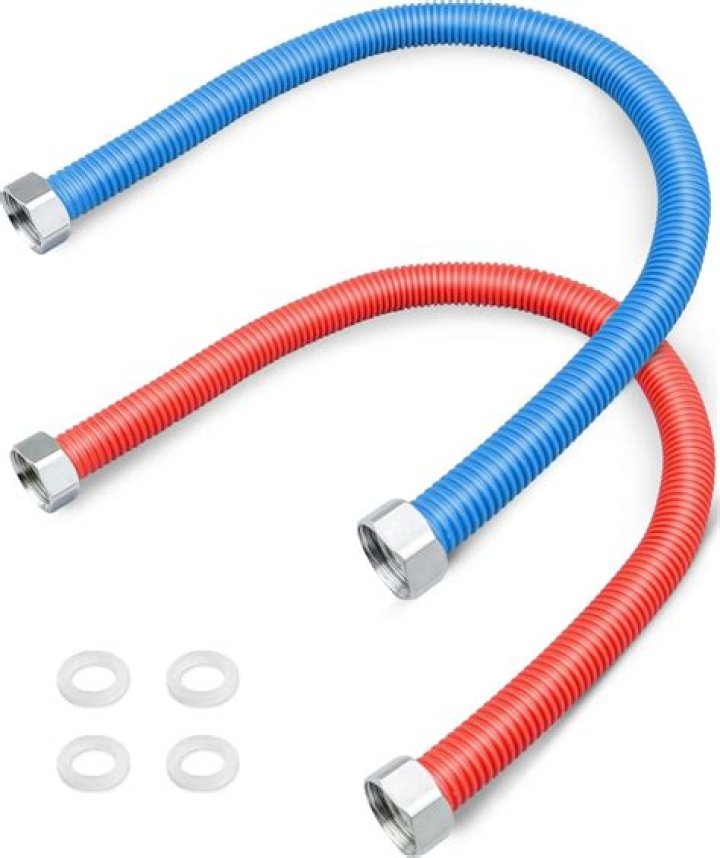

You can use flexible gas tubes or water pipes for a gas water heater in most states. … If your existing gas pipe has CSST (corroded stainless steel tubes) or has not been glued, the connection should be replaced right away.

What type of pipe is used for water heaters?

CPVC (schedule 80) pipe is rated for use up to 200 degrees Fahrenheit. This makes it ideal for use on hot water lines in homes and businesses.

Can you vent a hot water heater with PVC?

PVC is fine. As Jason mentioned, plastic (PVC or ABS) is ok to use as a venting material on powervented hot water heaters. They work by sending a huge amount of air in with the flue gases that it decreases the temperature of the exhaust going through the vent enough that it will not comprimise the vent.

Can I use flexible pipe for water heater in Illinois?

Flexible water heater gas connector. Appliance type flexible water heater gas connector is not a permitted type of installation in Illinois. … The easiest way is to eliminate old steel pipe used as water heater gas connector and install an appliance type flexible connector.

How far does a PEX have to be from a water heater?

PEX shall not be installed within the first 18 inches (457 mm) of piping connected to a water heater.

Can I use PEX for hot water?

Where is PEX pipe approved for plumbing use? PEX pipe is approved for residential and commercial hot and cold water distribution systems, municipal water service lines, radiant panel heating systems, hydronic baseboard heating systems, snow and ice melting systems and building services pipe.

Can plastic pipe be used for hot water?

Plastic pipe systems are available in a wide variety of materials. … These pipe systems can be used in hot and cold water supply and central heating installations; in fact in most areas where traditional piping materials are used.

How hot does a water heater flue pipe get?

If a water heater is set to store water at 140 degrees Fahrenheit to minimize Legionella bacteria growth as per the new ASHRAE Guideline 12 standard then the flue gas temperature will be about 160 degrees Fahrenheit or higher when the heater is new.

Can stainless steel pipe be used for natural gas?

A–Congratulations! You are now the proud owner of some wonderful corrugated stainless steel tubing. This material was approved for residential use in 1988 by the National Fuel Gas Code. It is an ingenious method of supplying natural gas to fireplaces, furnaces, stove tops, clothes dryers and any other gas appliance.

How hot does a water heater vent pipe get?

If a water heater is set to store water at 140 F to minimize Legionella bacteria growth, the flue gas temperature will be about 160 F when the heater is new. As scale builds up and the heater efficiency falls off, the flue gas temperatures can easily increase to over 350 degrees F.

Article first time published on

Why are power vent water heaters so expensive?

A power vent water heater will cost more initially due to extra equipment needed such as the fan and blower. Also, you will need to run a power line to the fan which will also add to the cost.

Can you use blue PEX pipe for hot water?

PEX without an oxygen barrier is designed primarily for use in potable water plumbing systems. … The color of PEX does not change any of the tubing’s ratings. There would be no problem, for example, using blue PEX for hot water lines or red PEX for cold water lines.

Can I use PEX for tankless water heater?

“As stated in Recommendation H: Piping systems using the materials CPVC, PE-RT, PEX, and PP, which carry a pressure rating of 100 psi at 180°F (690 kPa @ 82°C), and which are intended and certified for hot and cold potable water distribution systems according to industry standards and relevant codes, may be connected …

Can I use CPVC for water heater?

Tank-Style Water Heaters CPVC piping is rated for hot water heater installation, we highly recommend talking with a professional plumber before replacing the water inlet and outlet lines with CPVC or PVC. Although, it may be technically possible, if done correctly, it also could be a code violation in your area.

Which pipe is mostly used for carrying cold water?

Polypropylene pipes are primarily used for carrying hot water and cold water supply conduits, industrial pipelines, etc. (Fig. 3.13). (a) Unplasticised PVC (UPVC) or rigid pipes are used for cold water.

Do plastic heating pipes need insulation?

Plastic pipes supplying hot and cold water or central heating should be insulated against unwanted heat loss and/or freezing. Plastic pipes should be insulated to the same standard as required for copper pipes in the same location.

Can SharkBite fittings be used on a water heater?

SharkBite hot water heater connections are approved for use on electric or gas water heaters with a flu vent.

What PEX pipe is used for hot water?

Red PEX pipe carries hot water. Blue PEX pipe carries cold water. White PEX pipe can be used for either hot or cold water. Gray PEX pipe, like white, can be used for either hot or cold water (although not all DIY centers carry gray).

Why is PEX plumbing bad?

Potential chemical leaching is another downside of PEX piping. Due to its chemical composition, the PEX pipe material may leach toxic chemicals including bisphenol (BPA), MTBE, tertiary butyl alcohol (TBA), and others.

What material is used for water pipes?

Main Plumbing Pipe Materials. There are five plumbing pipe materials that are — or were in the case of galvanized steel — most common: copper, galvanized steel, polyvinyl chloride (PVC), chlorinated polyvinyl chloride (CPVC) and cross-linked polyethylene (PEX).

Which pipe is best for gas lines?

CSST tubing, or corrugated stainless steel tubing, is good for installing gas appliances. These corrugated pipes can bend around corners reducing the number of joints and fittings. Easier to work with than steel pipe and weighs a lot less.

What kind of pipe can you use for natural gas?

Steel, copper, brass: The most common gas piping is black steel. Galvanized steel, copper, brass or CSST (Corrugated Stainless Steel Tubing) also can be used in some areas, but some utilities specifically prohibit the use of copper. In other areas, the use of copper is widespread.

Can you duct tape a water heater vent?

Duct tape and flexible ducts are OK for a fume hood exhausts or for ventilation ducts, but not for combustion exhausts.

Can I vent my hot water heater out the side of my house?

Direct vent or horizontally vented water heaters are designed for installation where vertical chimneys or flues are not available or would be more expensive to install. The vents go directly through an outside wall, and can also bring in combustion air to the gas burner.

Can I use PVC for tankless water heater vent?

The Rinnai Sensei tankless water heater offers 14 possible venting configurations and can use PVC, chlorinated polyvinyl chloride (CPVC), or polypropylene venting. … They tolerate higher temperatures up to 194 degrees and 230 degrees Fahrenheit, respectively, and can be used with condensing tankless units.

Can you use PVC for vent pipe?

Ironically, even though the presence of plastic vent pipes has become synonymous with high-efficiency condensing furnaces, PVC pipe manufacturers do not recommend PVC for this application. Nor are there any official ASTM standards for plastic pipe used as combustion gas venting.

How much does it cost to replace a flue pipe on a water heater?

Direct Vent vs. Direct vent water heaters discharge exhaust through a flue pipe above the unit. If you replace an electric water heater with a direct vent gas model, expect to pay an additional $500 to $1,000 to install the vent pipe.

Does an electric hot water heater need to be vented?

No. Unlike gas tankless water heaters and gas traditional tank style water heaters, electric tankless water heaters do not require any venting. This is often one of the deciding factors when choosing whether you should purchase a gas or electric tankless water heater.

How much does it cost to replace a power vent water heater?

Power Vent Water Heater Installation Cost An installed power vent water heater averages $1,050 to $5,000. They have more moving parts and require electricity to vent. Even if you use gas to heat your water, your water heater requires electricity to work.

Can you power vent a tankless water heater?

Gas tankless water heaters don’t have to use indoor air for combustion. Tankless water heaters can be vented in two ways: power-vent or direct-vent. Power-vent units use indoor air for combustion and simply vent the exhaust to the outside.

What is the quietest power vent water heater?

• 50.32 dBA. The quietest power vent water heaters in the industry.
• With the new AquaVENT MAX™ Blower, the TTW® Power Vent Residential Gas Water Heaters do the job in a smaller space than the competition:
• 3″ Flue Products Now Available, 5″ Flue Products Coming Soon.
