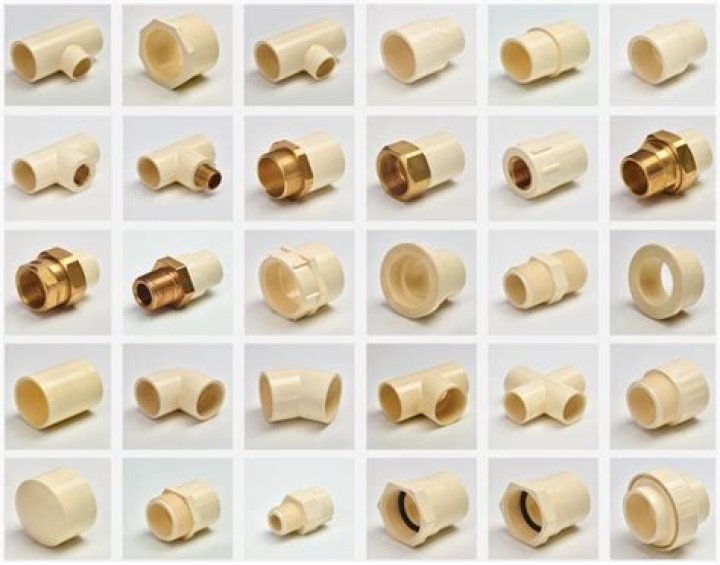

CPVC pipes are readily joined with plastic fittings and glue, but when that isn’t practical, you can join them with plastic compression fittings. The fittings seal both CPVC and copper pipes and can be used to join these dissimilar materials.

Do compression fittings work on plastic pipe?

Compression fittings on plastic pipe A compression fitting works in the same way on a plastic pipe as it does on a copper pipe except that you need to put in a liner, which is there to keep the end of the pipe perfectly round.

Can you use crimp rings on CPVC?

CPVC pipe can be connected using compression fittings, glues, and quick connect fittings. … In fact, with the quick connection technology, you can connect CPVC in seconds with no crimp rings and special tools or messy glues.

Will PVC fittings work on CPVC?

PVC cement (or glue) does not work like regular glue. … This means old-fashioned PVC cement will not be fully effective on CPVC. There is no special “CPVC to PVC glue,” so chemically joining CPVC and PVC requires solvent cement and primer that are strong enough to fully bond CPVC pipe.

Are compression fittings safe for water lines?

Compression fittings in the world of plumbing are very common. They are a safe way to connect copper pipe without the use of heat making them popular with DIY’ers. Many different types of valves, tees, connectors and utilities require compression fittings in order to make them water tight and safe.

Can you use compression fitting on push fit pipe?

4. Can I connect Speedfit pipe directly into compression fittings? Yes, but only if they are compatible. Compression fittings with a short tube stop depth should not be used.

Do compression fittings come with olives?

Components. Compression fittings are usually made with brass main body, backnuts, and a copper or brass olive.

Is all purpose cement good for CPVC?

Oatey® All-Purpose ABS, PVC and CPVC Medium Bodied Clear Cement is recommended for DWV, potable water and irrigation applications. … This milky-clear, low VOC, all-purpose cement can be used to solvent weld all schedules and classes of ABS, PVC and CPVC pipe and fittings up to 6 in. diameter with interference fit.

Is CTS the same as CPVC?

CTS stands for Copper Tube Sizing. This is different from other PVC or CPVC pipes, which commonly use NPS, or Nominal Pipe Size, dimensions. … CPVC CTS pipe is used for hot and cold water distribution in pressure systems that do not exceed 180 degrees Fahrenheit.

Whats the difference between CPVC and PVC?

What are the differences between CPVC and PVC? The main difference between CPVC and PVC is the range of temperatures each is capable of withstanding. CPVC can handle temperatures up to 200° Fahrenheit, while PVC peaks at 140° Fahrenheit.

Article first time published on

Can you use SharkBite fittings on CPVC pipe?

SharkBite brass push-to-connect fittings are compatible with PEX, Copper, CPVC, PE-RT and SDR-9 HDPE pipe. … The PEX stiffener does not need to be removed for Copper or CPVC applications.

What is the best glue for CPVC?

Oatey® CPVC Medium Bodied Fast Set Orange Cement is recommended for cold water systems and hot water systems up to 200°F / 93°C. It is approved for Corzan® CPVC piping systems.

Do compression fittings fail?

Unlike threaded fittings, compression fittings can seal properly but nevertheless slip out of position as a result of forces on a pipe. … Analysis of the evidence suggests that the underlying cause of the failure was improper repair of a water pipe.

What's better compression fittings VS soldering?

Compression fittings are bulkier and can be considered less aesthetically pleasing compared to the soldered joint. Compression fittings are not nearly as robust as soldered fittings making them much more sensitive to powerful stresses.

Are compression fittings reliable?

Although compression fittings are generally considered more reliable than threaded fittings, there are some potential problems. In general, compression fittings are not as resistant to vibration as soldered or welded fittings. Repeated bending may cause the ferrule to lose its grip on the tube.

What is the most common cause of leaking compression fittings?

It is critical to avoid over-tightening the nut or else the integrity of the compression fitting will be compromised by the excessive force. If the nut is overtightened the ferrule will deform improperly causing the joint to fail. Indeed, overtightening is the most common cause of leaks in compression fittings.

Do I use PTFE tape on compression fittings?

Can I Use PTFE Tape on Compression Fittings? No. PTFE tape is not designed to seal compression fittings and is ineffective at doing so.

Can you reuse compression fittings plumbing?

Reusable Compression Fittings: They are safe to be reused and apply to half the movement of the pipe outward from the fitting. In hydraulic process, compression fittings basically assure some secure fit in pipe connections. Leaks are only possible if they are not properly installed to each end of the fluid line .

Are compression fittings OK for central heating?

Hi Compression fitting will be fine. Trades men often use them especially when a little water is present.

Do you need inserts for push fit?

Pipe inserts are required on push fit and compression fittings when using plastic pipe. The inserts vary in size from one manufacturer to another ,so you should use the inserts relative to the pipe brand. Heat likes this.

Are push fit plumbing fittings reliable?

Push-fit plumbing systems are reliable and do not deskill with plumbing. But as with any profession, it depends on the product that is used. Different products bring different standards of quality, whether that is the testing it is put under, how it is manufactured or its durability.

What does IPS stand for in plumbing?

Iron Pipe Size (IPS) is an old pipe sizing system that came was started in the early 19th century. It remained in effect until after WWII and was mainly used in the US and UK. When IPS was introduced, pipes were cast in halves and welded together.

What is Schedule 80 CPVC pipe?

CPVC Pipe is used in corrosive resistant applications. Pipe ranges from 1/8” to 24” in size and can be used in applications reaching as high as 200°F. Pressure ratings change on the pipe with size, the schedule of the pipe and the temperature that the pipe will be under.

What does CTS stand for?

AcronymDefinitionCTSChange Tracking SystemCTSComputerized Telephone SystemCTSCollective Training SystemCTSCommon Transfer System (UK schools)

Can oatey PVC cement be used on CPVC?

To explain, you need to understand the difference between PVC and CPVC. PVC stands for polyvinyl chloride, while CPVC stands for chlorinated polyvinyl chloride. … So, if all you have to bond two PVC pipes and fittings together is CPVC cement, it will work, but PVC cement cannot be used to bond CPVC pipes and fittings.

Is primer needed for CPVC?

Primer is needed to prepare the bonding area for the addition of cement and subsequent assembly. Use a proper applicator, such as a dauber, swab or paintbrush, approximately half the size of the pipe diameter. Apply the primer to the inside of the fitting socket and to the outiside of the pipe end.

How long should CPVC glue dry before turning on water?

For a 1 1/2- to 2-inch pipe with up to 160 psi, Corzan recommends allowing a cure time of 30 minutes when it’s 60 to 100 degrees Fahrenheit, 45 minutes when working in 40- to 60-degree temperatures and an hour when conditions are below 40 degrees.

Is CPVC good for plumbing?

Studies have proved that CPVC tubing and fittings are completely safe for home water supplies. In fact, CPVC has been successfully used in homes for more than 35 years. Be aware that many home copper or steel water pipe systems are used as grounding for electrical wiring.

Why is CPVC used for drinking water?

CPVC (chlorinated poly (vinyl chloride) is a strong and rigid thermoplastic material that is used for hot and cold potable water applications in residential construction. Because of its makeup, CPVC is immune to damage from highly chlorinated domestic water and has a higher temperature tolerance than PVC.

Can you use CPVC for cold water?

As mentioned before, CPVC is more suitable for hot water applications up to 200F. PVC is still often used for unheated water as well as for vent and drainage systems; however, CPVC has become widely used for both hot and cold potable water.

Why do plumbers hate shark bites?

SharkBites work better than plastic quick-connects on copper pipes because the lead-free brass body is rigid like the pipe and has a higher pressure tolerance. … We don’t recommend using a SharkBite fitting outside because sunlight can dry out the rubber O-ring and cause it to crack or split.
