Can you use a jet pump on a deep well?
William Smith Can you use a jet pump on a deep well?
All jet pumps are both “deep well” and “convertible”, meaning they can be used for either a shallow well application or to pull water from a deep well. Deep well jet pumps are designed to pull water up from depths greater than 25 feet up to about 200 feet, depending on the altitude of your geographic location.
Which pump is suitable for deep well pumping?
If the depth of your well is between 25 and 110 feet, you should use a deep well jet pump. If the depth of your well is between 110 and 400 feet, use a four-inch submersible pump. Remember, you can also use a submersible pump for wells as shallow as 25 feet.
How deep can a 2 HP well pump go?
2½” – Jet pumps in shallow well applications (depth less than 25 feet) should be installed using 1¼” suction piping with a foot valve. 4″ – Convertible jet pumps used in deep well applications (depth greater than 25 feet) and deep well submersible pumps.
What is the depth limit for shallow well jet pumps?
0′ to 25′ deep
Shallow Well Jet Pumps can pump water from 0′ to 25′ deep. Convertible Well Jet Pumps pump water from 0′ to 90′ deep. A Convertible Well Jet Pump can operate between 0′ to 25′ with a shallow jet well nozzle or between 25′ to 90′ deep with an ejector assembly.
How can you tell how deep your well is?
Take up the slack and mark the string at ground level. Pull the weight out of the well. 3. Measure from the bottom of the weight to the ground level mark on your string. This is the depth of your well.
How does a deep well jet pump work?
A deep well jet pump combines two principles of pumping – that of the centrifugal pump and that of an injector (nozzle and venturi assembly). The pump and pipe system are full of water. In the injector, the nozzle and the venturi create a vacuum. This vacuum draws water from the well, through the foot valve.
How much water can a 1 hp pump move?
Number of submersible well pump stages determine pump lift capacity
| Table of Submersible Pump Stages vs HP vs Total Dynamic Head vs. GPM Flow Rate Capacity | ||
|---|---|---|
| Water Pump HP | Nr. of Pump Stages | GPM Flow Rate Capacity |
| 1 HP | 8 | 4 – 40 GPM (varies by TDH) |
| 1 1/2 HP | 11 | 4 – 40 GPM (varies by TDH) |
| 2 HP | 14 | 4 – 42 GPM (varies by TDH) |
What depth is considered a deep well?
Most household water wells range from 100 to 800 feet deep, but a few are over 1,000 feet deep. Well yields can be increased by fracturing the bedrock immediately around the drill hole and intercepted rock faults.
How does a jet pump well water pump work?
If we didn’t use a pressure tank, because water is not very compressible, the second water was turned on, water pressure in the system would drop below the pump cut-on pressure, the pump would turn on, and probably bring water pressure up to the cut-off pressure quickly, causing short cycling and burning up pump controls or a pump motor.
How many deep well jet pumps are there?
. Only 10 left in stock – order soon. . Only 14 left in stock – order soon. . Only 10 left in stock – order soon. . . Only 1 left in stock – order soon.
What does it mean to have two line jet pump?
“Two line” refers to the fact that two water pipes connect the pump to the well. Since the lift capacity of a two-line jet pump is not limited to the shallow-well depth of 27′ chances are that where you find a two line jet pump installed it is drawing from a deep water well.
How does a submersible well pump system work?
At that point The well pump pressure control switch senses that water pressure has increased to the cut-out point, opening its switch and turning off electrical power to the well pump. The well pump has re-pressurized the building water tank and piping up to the cut-out or cut-off water pressure.

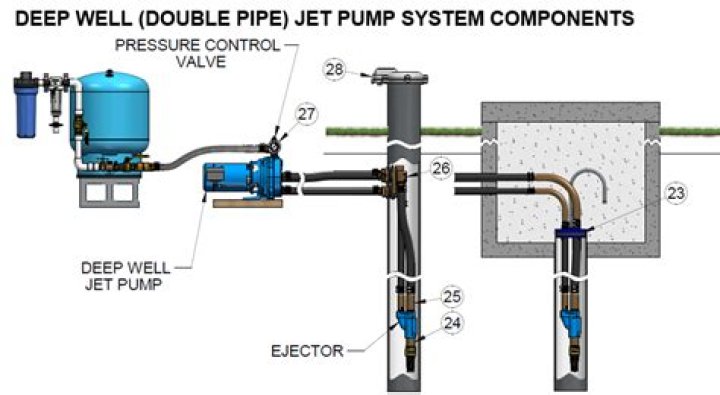

How to install a jet pump in a deep well?
DEEP WELL JET PUMP DOUBLE PIPE STEP 3Connect foot valve to bottom of jet with 1 1/4” galvanized nipple or full length of 1 1/4” galvanized pipe. Connect 1 1/4” galvanized pipe to 1 1/4” tap in ejector or jet body. Connect 1” pipe to the 1” tap in ejector or jet body. Keep adding pipes until you reach the desired depth.
Where does a convertible jet pump go in a well?
Convertible jet pumps are versatile pumps that can satisfy water pumping needs for a wide variety of homes and businesses. Convertible water pumps are not submersible, meaning that they will sit outside the water, and usually situated in a well housing outside of the well itself.
At that point The well pump pressure control switch senses that water pressure has increased to the cut-out point, opening its switch and turning off electrical power to the well pump. The well pump has re-pressurized the building water tank and piping up to the cut-out or cut-off water pressure.
How big is a 2 line jet pump?
What is the Pumping Capacity in Gallons per Minute for a 2-Line Deep Well Jet Pump? A two-line jet pump can typically raise water from depths of 30-feet to 80-feet, and at water delivery rates of 4 gpm (gallons per minute) (for a 1/2 hp 2-line jet pump serving an 80 foot deep well) to 16 gpm (for a 1 hp 2-line jet pump serving a 30 foot deep well).
