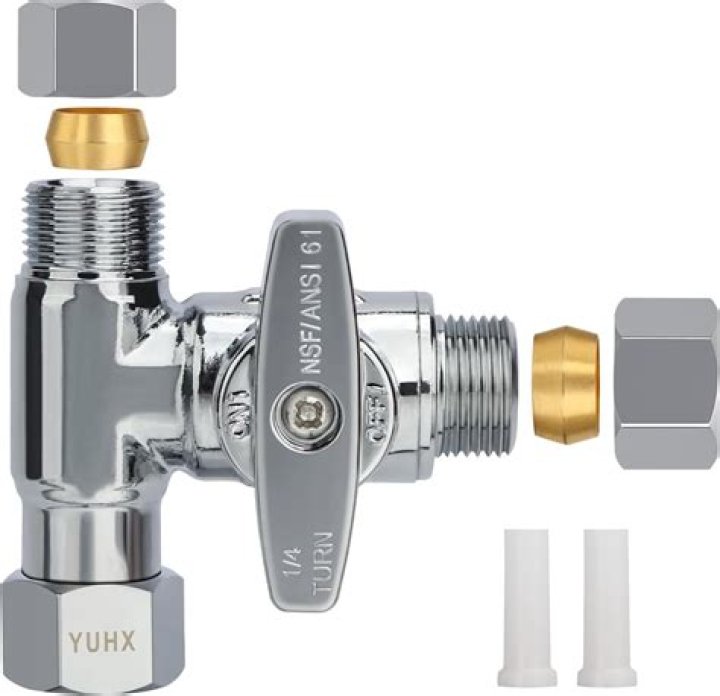

Can you replace a sweat valve with a compression valve?

If you’re replacing a sweat valve with a compression valve, sand off all traces of solder before adding the new escutcheon, nut and sleeve. Remove the stem and wire-brush the opening in the new quarter-turn valve and apply flux to the valve and the copper tubing.

How do you remove a sweat valve?

If it is a sweat valve, you’ll just need a pliers to loosen the packing nut and unscrew the entirety of the valve stem. Remove the old washer. Drape the frame with a protection cloth and secure it to the wall. Get a soldering torch, adjust it to its smallest flame, and melt the solder until you can pull the valve out.

Can you overheat a ball valve?

Soldering with the valve completly closed will sometimes cause the pressure inside the ball to blow out the teflon seal. Definitely don’t solder with water trapped in the ball,it can turn to steam if overheated, and pop the seal out also.

How does an anti-sweat valve work?

An anti-sweat valve adds a little hot water to the toilet water line, which raises the water temperature in the toilet enough to warm up the tank and bowl. That’s all it takes to keep condensation from forming, even in the most sultry weather.

Can I solder a closed ball valve with water on the other side?

yes you can solder one side turn the water on and then solder the other.

What’s the best way to sweat a valve?

I wrap a damp rag around the center of the valve (ball). Wet it enough that it doesn’t dry while sweating, but make sure it’s not wrapped around the portion that you are sweating. I leave the rag wrapped after soldering long enough that the valve is only hot to the touch (cool enough that the valve won’t be damaged) before I remove it.

What’s the best way to fix a bad sweat joint?

Solder one joint, then move to a joint further away, then back to a joint near the first, etc. This should allow some of the heat to dissipate, and reduce the chances of overheating the joints. Don’t forget to wipe excess solder off the joint before it cools using a damp rag, nothings worse than an ugly joint (except maybe a leaky joint).

Can a sweat ball valve be solder open?

Sweat ball valves are designed to be soldered, the internal parts can withstand the heat required for a complete solder joint. Wet rags are not necessary, heat control is. Depending on the piping configuration, it’s probably best to solder with the (ball) valve in the fully open position.

What should I use to clean sweat solder joint?

Keep a dry rag to knock off excess solder and a wet rag to cool and clean the joint. Flux causes oxidation (turns green). Don’t worry about burning off flux: it will take unless it’s too hot. There should only be slight discoloration; if there is more then there is too much heat.

What’s the best way to replace a sweat valve?

Clean the tubing with emery cloth. If you’re replacing a sweat valve with a compression valve, sand off all traces of solder before adding the new escutcheon, nut and sleeve. Otherwise, remove enough old solder to allow the new sweat valve to slide onto the tubing.

What should I do when I solder a water valve?

Put a bucket under it to catch water that will flow out once you’ve made the cut. Open any other faucets or valves connected to the pipe and wait for all the water to drain from the cut pipes. Leave the faucets and valves open while you solder on the new valve. De-burr the ends of the pipes with a wire brush.

What’s the best way to replace a shutoff valve?

With the flame protection cloth in place, heat the valve just enough to draw in the solder. Heat the remaining solder with the torch until it’s molten. As soon as the solder melts, wipe away the excess solder with a damp rag.

What’s the best way to turn off a water valve?

If the line doesn’t yet have a dedicated valve, turn off the main water valve for the house. Cut into an existing supply pipe with a pipe cutter. Put a bucket under it to catch water that will flow out once you’ve made the cut. Open any other faucets or valves connected to the pipe and wait for all the water to drain from the cut pipes.
