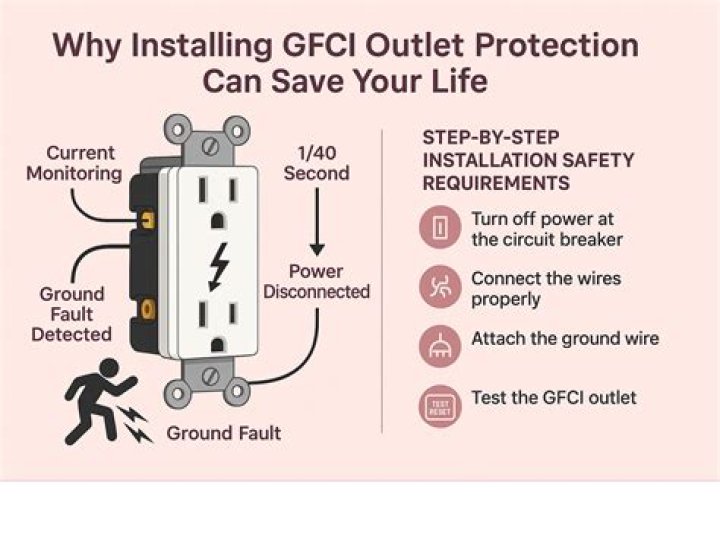

A. That “protector outlet” you’re referring to is a GFCI, or “Ground Fault Circuit Interrupter” receptacle, and GFCI’s are required by building code in garages, kitchens, bathrooms, and on the exterior of new homes. … So freezers and refrigerators should never be plugged into GFCI’s.

Can you plug a refrigerator into a GFCI outlet?

Should a refrigerator be plugged into a GFCI outlet? A refrigerator shouldn’t be plugged into a GFCI outlet. GFCI outlets are used in areas of the home with water or moisture. These include bathrooms, basements, and kitchens.

Does a freezer need a dedicated outlet?

You should have refrigerators and freezers installed on a 15-20 amp dedicated 120 volt circuit. … Keep in mind that even if you don’t place your freezer or refrigerator in your garage, it is still required that freezers be on a dedicated 120 volt circuit.

Can I plug a freezer into any outlet?

An upright or chest freezer should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. A 115 Volt AC, 60 Hz, 15- or 20- amp, fused, grounded electrical supply is required.

How do I stop my fridge from tripping the GFCI?

If you want to keep the fridge on a GFCI outlet, you can try replacing the breaker in the box with a GFCI breaker. Also, if you’re dealing with a dedicated circuit that just operates the refrigerator in the kitchen, you can simply remove the GFCI outlet and replace with a standard outlet.

Does a refrigerator need to be on an arc fault breaker?

So, the answer is, Yes, circuits that supply outlets for refrigerators do need to be arc-fault protected, with very few exceptions. There are a few rooms where it is not required, if your state still uses NEC-2014, or if your state does not use NEC.

Does a refrigerator need a GFCI breaker?

Residential Kitchen In a dwelling unit (residential), GFCI protection is only required for kitchen receptacles that serve the countertop surfaces. There’s no requirement to GFCI protect receptacles that serve a refrigerator. Unless the fridge is plugged into a countertop receptacle.

Can I plug 2 freezers into one outlet?

Probably yes – A freezer typically draws less than 5 amps. So 2 freezers on a 15 or 20 amp circuit is not a problem. The question is what other loads are plugged into different outlets on that same circuit. If the total comes out less than the breaker’s rating, you are fine.

Can you plug a freezer and refrigerator into the same outlet?

You can plug a freezer and a refrigerator into the same outlet if their total draw doesn’t exceed the capacity of the circuit. … It is better to place the appliances on separate dedicated circuits that only have one outlet.

Can I plug a freezer into an extension cord?

Grounded Extension Cord for Freezer The power cord on a freezer or refrigerator has a ground pin, so you need a UL® listed 3-wire grounding appliance extension cord, and you must plug the cord into a grounded three-pin receptacle. … Never use a damaged extension cord.

Article first time published on

Why does my freezer keep tripping the GFCI?

It is common for the startup or shutdown of the refrigerator compressor motor to cause a GFCI to trip. The defrost cycle, though, is less likely to cause the issue, since the defrost heater is resistive rather than inductive. The issue occurs randomly because the motor operates from alternating current.

Does a chest freezer need to be on its own circuit?

Upright and chest freezers require a 120 volt, individual, properly grounded branch circuit with a 3 prong grounding type receptacle, protected by a 15 or 20 amp circuit breaker or time-delay fuse. The freezer should be on a dedicated circuit.

How many amps does a freezer draw?

A refrigerator-freezer will draw about 1.5 Amps to 2 Amps, translating to 180 Watts to 240 Watts of power consumption at 120 Volts. The freezer is usually only of the capacity of a mini-freezer. It’s more energy-efficient to have separate refrigerator and freezer appliances.

Why does my fridge freezer keep tripping the electric?

If your refrigerator trips often, then it is likely due to the compressor. Every time your compressor turns on to run the cooling cycle, it will trip the breaker. When this happens, it is typically due to a grounding issue with the compressor that is causing the part to essentially become overloaded with electricity.

Can you plug a refrigerator into an extension cord?

Using a grounded extension cord with a three-prong plug is always the best choice for major appliances including refrigerators. … Since the 10-gauge cord is an extra heavy-duty extension, it makes the best choice for big power loads like a refrigerator.

Why does my fridge freezer keep tripping the RCD?

One of the most common reasons for RCD tripping is a faulty appliance. The RCD will trip to remove a dangerous electrical circuit resulting from an appliance that is faulty. … It could be that the fridge, shower or oven is tripping the RCD.

Do refrigerators need a special outlet?

Refrigerator – Most refrigerators work with a standard 100-120 volt electrical plug and outlet. You will notice that the electrical plug is made up of three prongs; this means you will need an electrical outlet that has three inserts. … It is best to use an outlet that has a Ground Fault Interrupter or GFI.

How many amps does a refrigerator draw?

A typical refrigerator draws 725 watts, according to the United States Department of Energy. Divide that number by 120 volts, which is the voltage of your power supply, to get the current that the refrigerator draws in amperes. A 725-watt refrigerator draws 725/120 = 6 amps.

Is there a difference between GFI and GFCI?

GFCI vs GFI. Ground fault circuit interrupters (GFCI) and ground fault interrupters (GFI) are the exact same device under slightly different names. Though GFCI is more commonly used than GFI, the terms are interchangeable.

Do appliance circuits need AFCI?

Yes, you need AFCI protection As of the 2017 NEC, AFCI protection has been extended to all 15 and 20A, 120V branch circuit outlets in all dwelling unit locations. This includes dedicated appliances such as furnaces and dishwashers, and even smoke detector circuits.

What appliances need arc fault breakers?

As of the 2014 NEC, AFCI protection is required on all branch circuits supplying outlets or devices installed in dwelling unit kitchens, along with the 2008 NEC additions of family rooms, dining rooms, living rooms, parlors, libraries, dens, bedrooms, sunrooms, recreation rooms, closets, hallways, laundry areas, and …

Where are AFCI not required?

AFCI protection is not required for outlets located outside or in garages or bathroom areas. (B) All 15A or 20A, 120V branch circuits supplying outlets in dormitory unit bedrooms, living rooms, hallways, closets, bathrooms, or similar areas.

How many amps does a 20 cubic foot freezer draw?

A 20 cubic foot freezer will typically use less than 4 to 5 amps when running. Upon start up, the a 20 cubic foot freezer will use around 10 to 15 amps.

Can a refrigerator share a wall socket with another appliance?

No, A refrigerator should not be sharing a wall socket with another appliance. Even a light bulb (well maybe a low wattage one). The problem is the random nature of the refrigerator starts. When the refrigerator starts, it creates a large starting current.

Can you put a chest freezer in a closet?

Yes, you can put an upright freezer in a closet. First, it needs ample space to ensure good airflow. If you can install a vent in the closet, leave the cupboard door open as it’ll allow the air to flow.

Where should I put my freezer?

Other possible locations for placing a freezer include the kitchen, utility room, basement, garage, and laundry room. When space is limited, you may want to consider locating a freezer in a guest room or outdoor shed.

Why is my freezer blowing the fuse?

Why does Your Fridge Freezer Blow the Fuse? … Overtime, the fuse itself may simply weaken. Circuit overload caused by multiple appliances plugged into in the same power source. When the circuit draws too much power, the internal safety system in fuses breaks an internal wire to prevent overheating and possible fire.

Can I replace a GFCI outlet with a regular outlet?

that being said one gfci outlet provides protection for all devices under it so if you have more than one gfci outlet on the circuit you can replace it with a standard outlet as long as it is not the first outlet on the circuit.

Can I plug a chest freezer into a surge protector?

We do not recommend connecting a refrigerator or freezer to a surge protector. The compressor is sensitive to temperature and current overloads, and will shut itself down with a surge. … A surge protector will override this system, and if there is a power surge, your refrigerator may not restart.

How many watts does a freezer draw?

Older freezers will use over 100% more energy than newer Energy Star rated models. A modern freezer will use between 30 and 100 watts of power depending on size, indoor temperature & efficiency.

How much power does a small freezer use?

Compact and small freezers that are 5 cubic feet can use around 1 amp or 100 watts while running. During start-up, however, they use approximately 6 amps or 700 watts.
